MAF and IAT Sensor Removal and Installation: Installation

Reference: MAF AND IAT SENSOR INSPECTION

Reverse removal procedure, noting the following points:

• Tighten MAF and IAT sensor screws (3) to specified torque.

  Tightening torque

  MAF and IAT sensor screw (a): 0.9 N.m (0.09 kg-m, 1.0 lbf-ft)

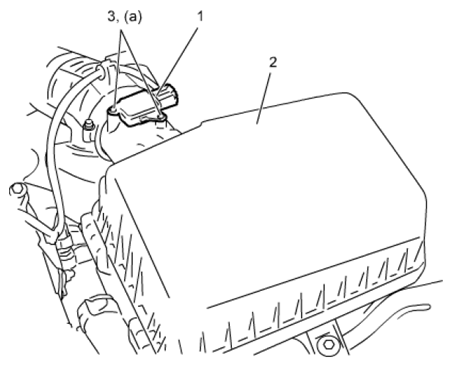

  Fig 1: Identifying MAF And IAT Sensor And Screws

  Courtesy of SUZUKI OF AMERICA CORP.
