Witte2Performance
: Let's fix it
Home
>>
Suzuki
>>
2009
>>
Equator 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

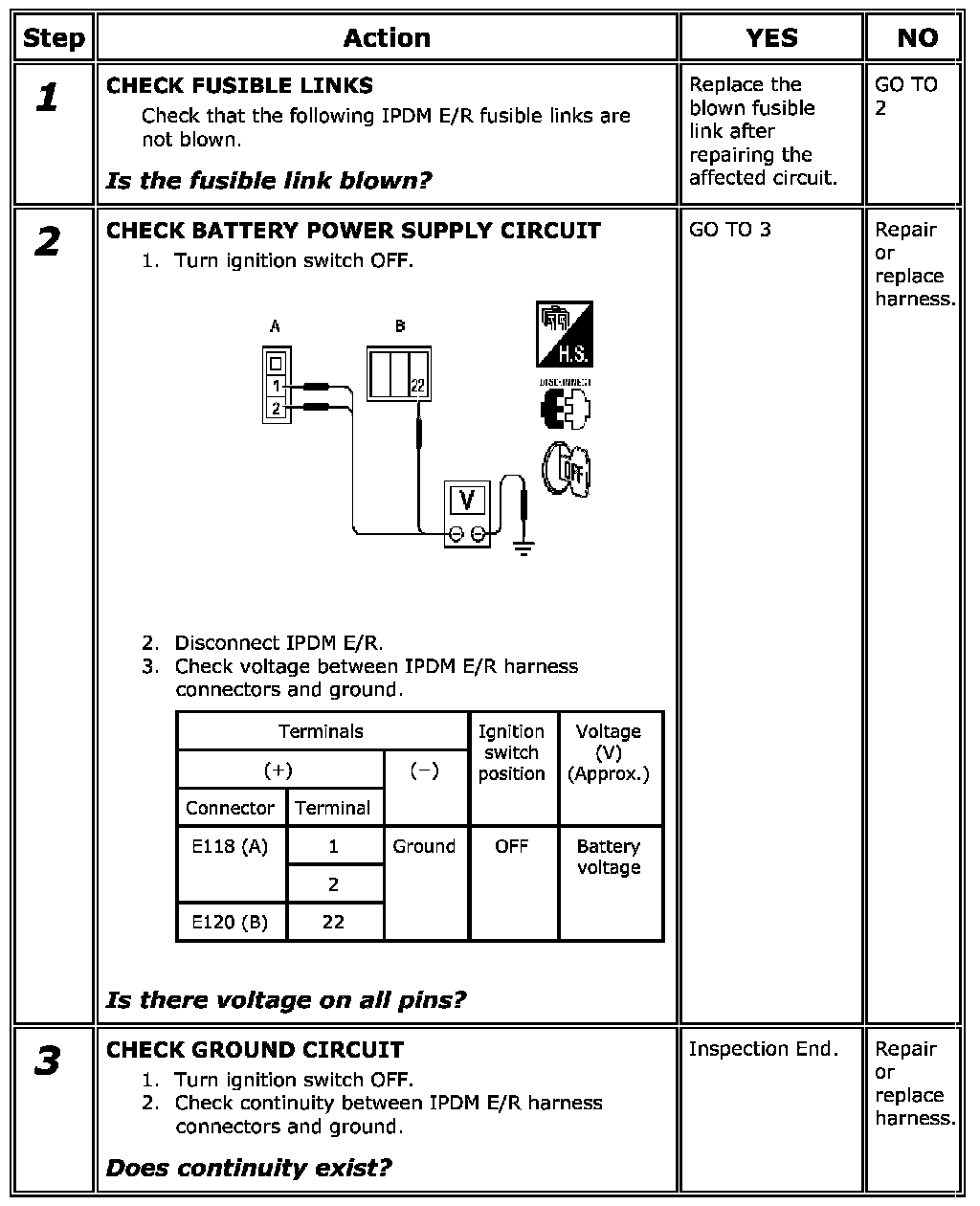

Power Supply and Ground Circuit Check [IPDM E/R]
Step 1-3:
