Home >> Suzuki >> 2005 >> Forenza L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

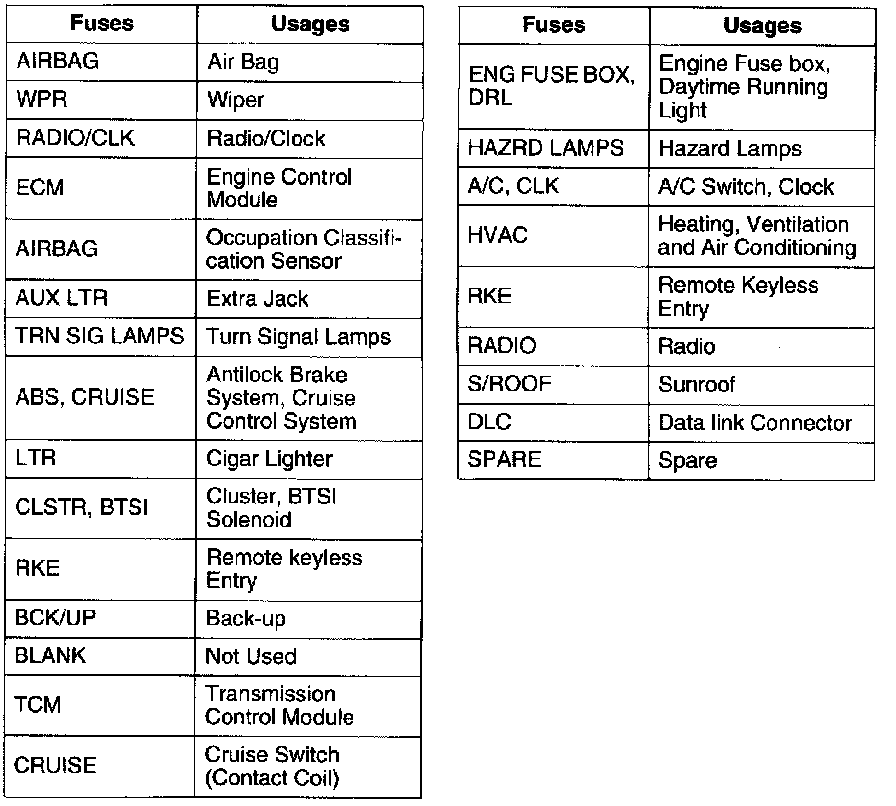

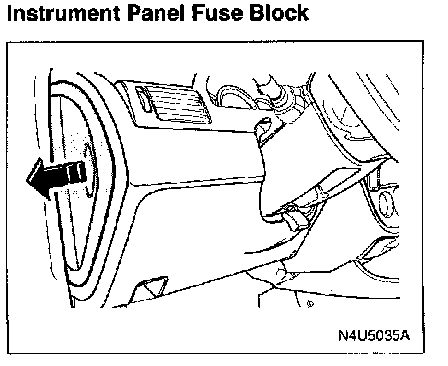

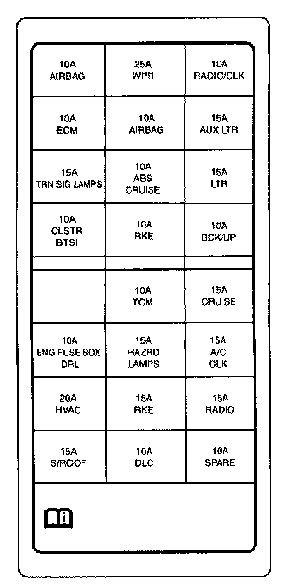

Instrument Panel Fuse Block

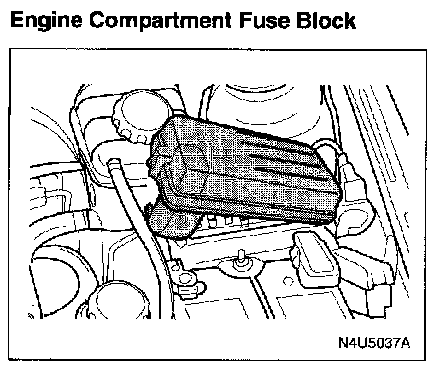

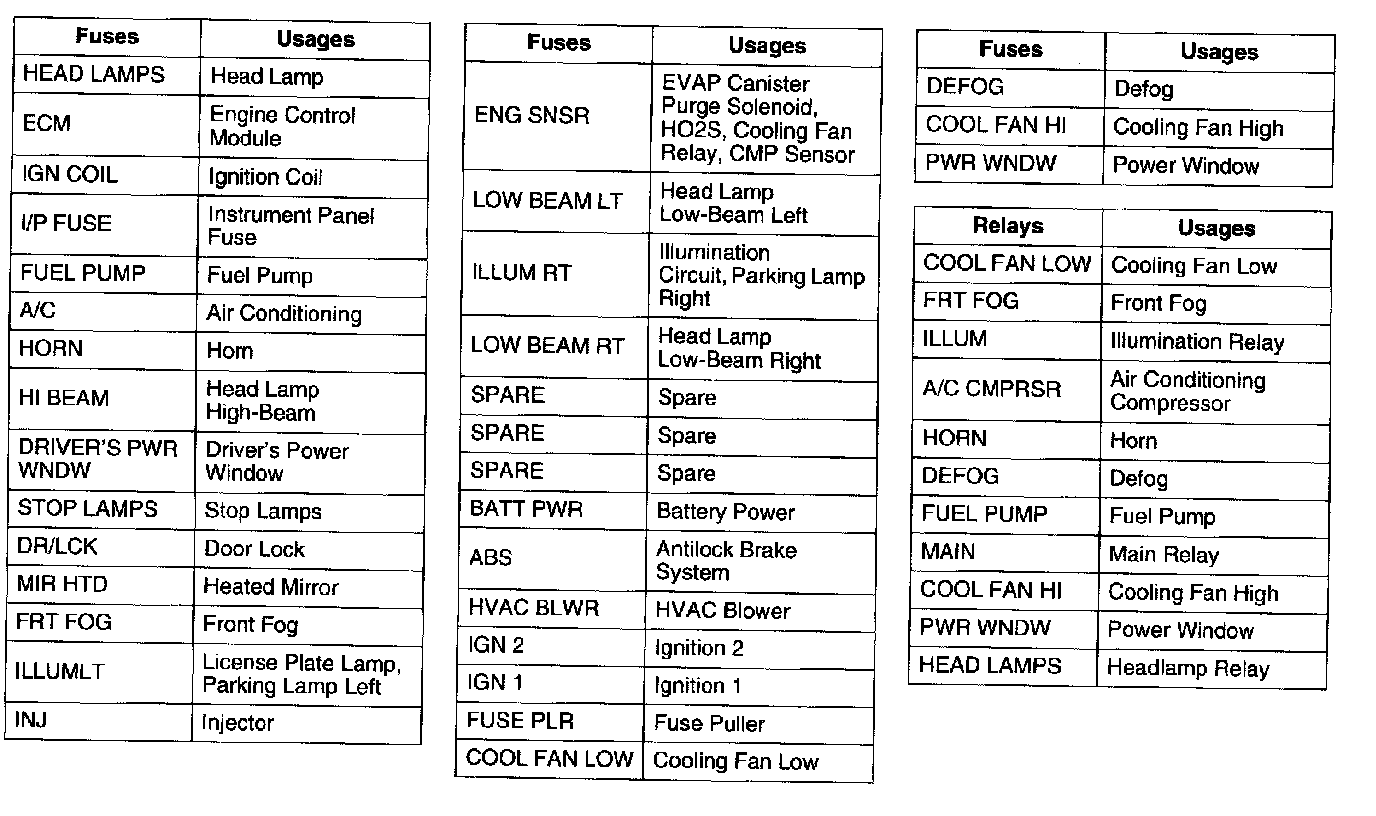

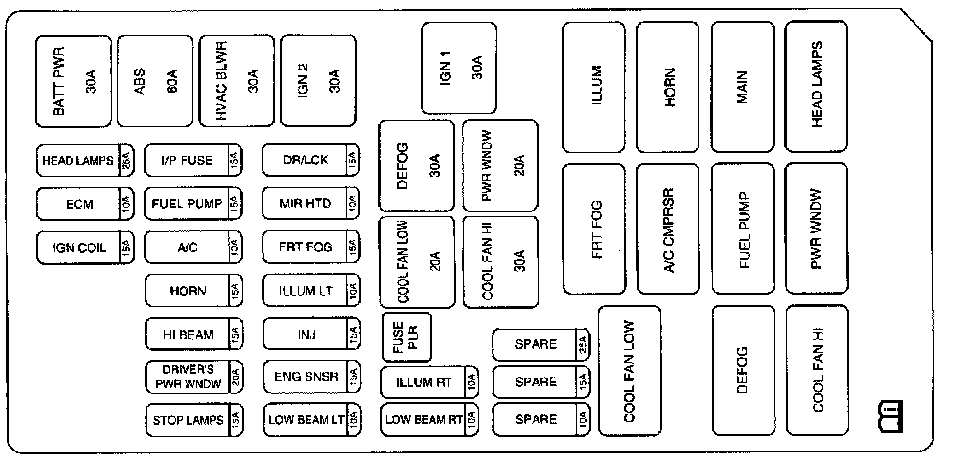

Engine Compartment Fuse block
