Home >> Saturn >> 2001 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Control Systems >> Connector Face Views

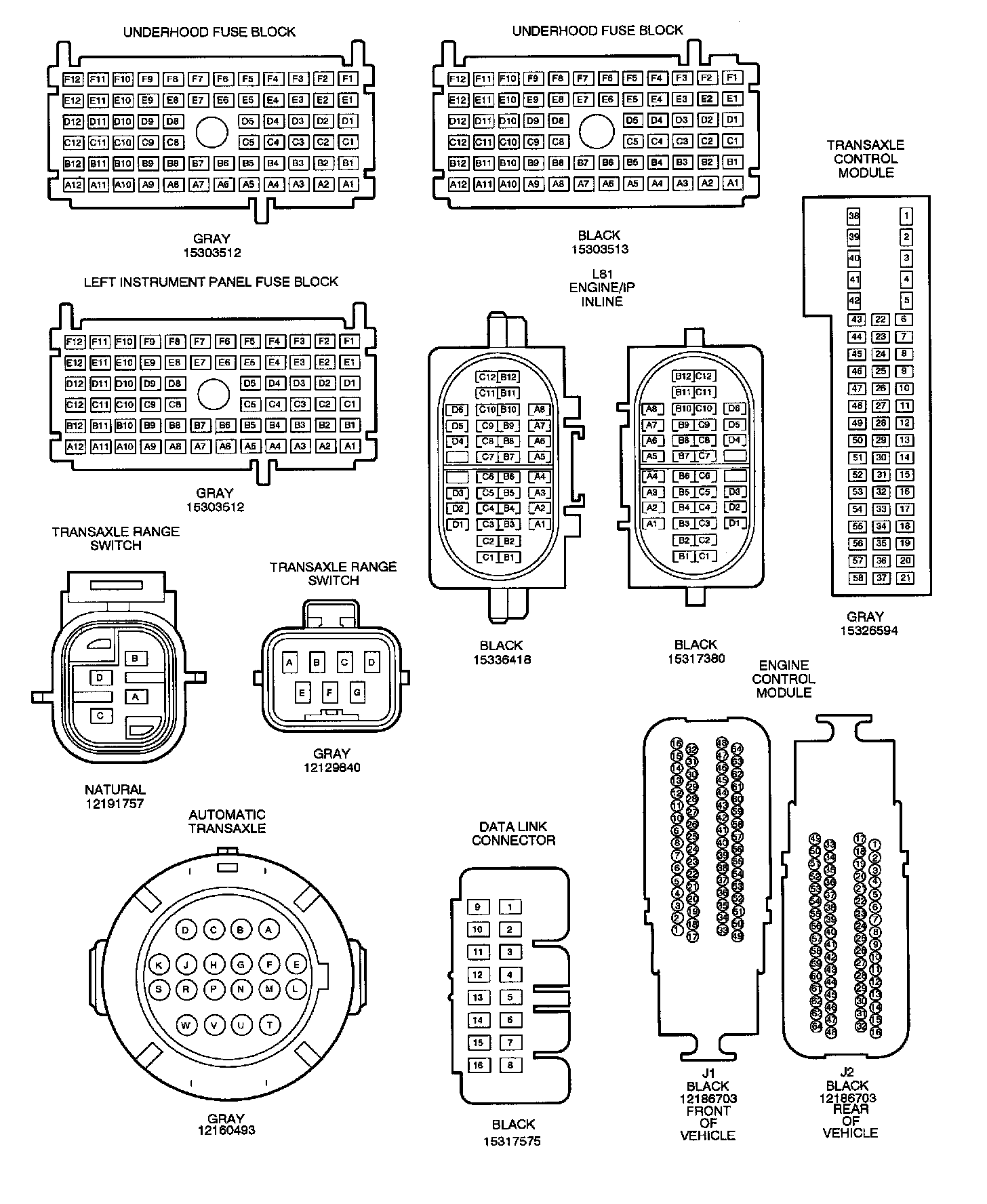

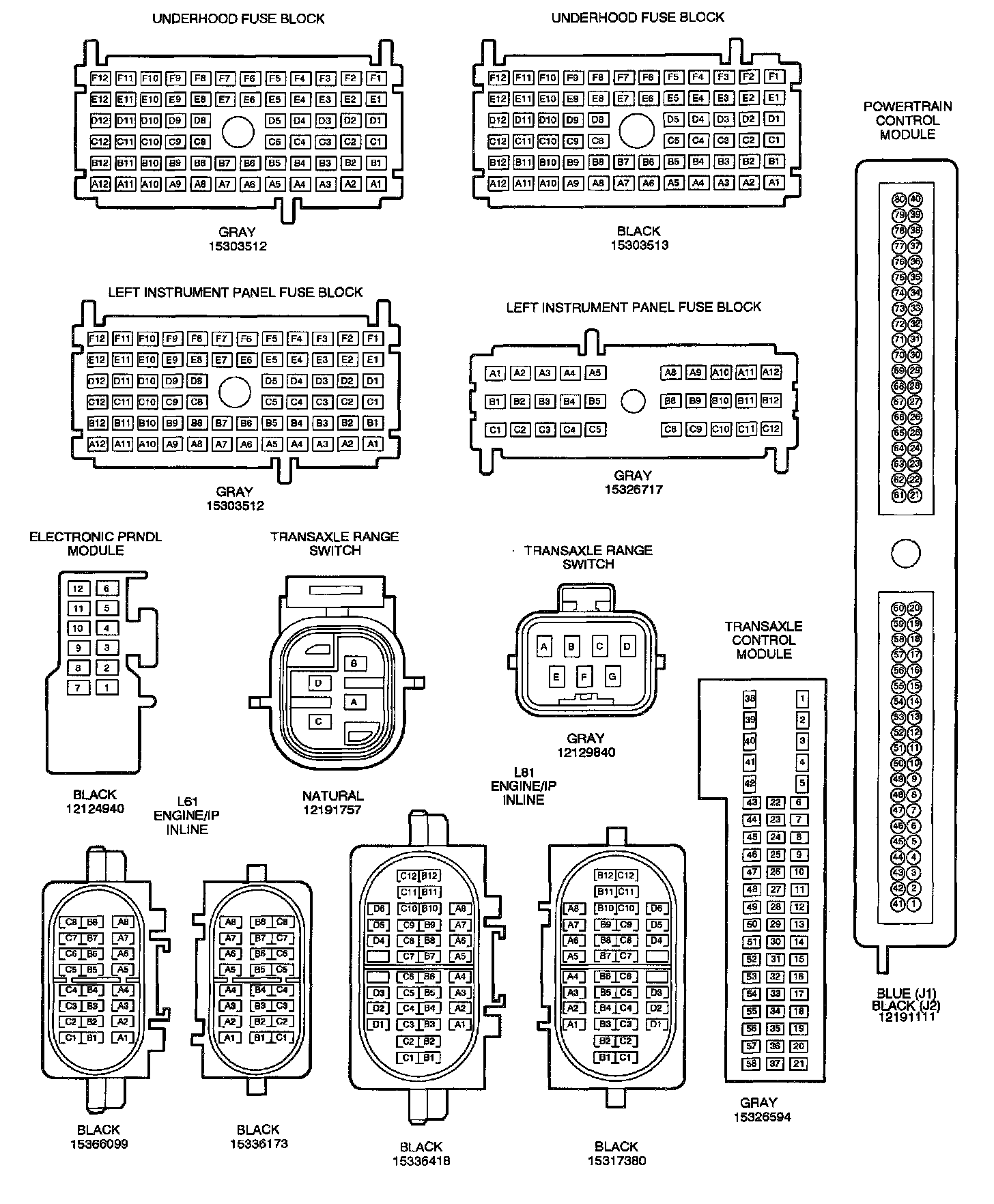

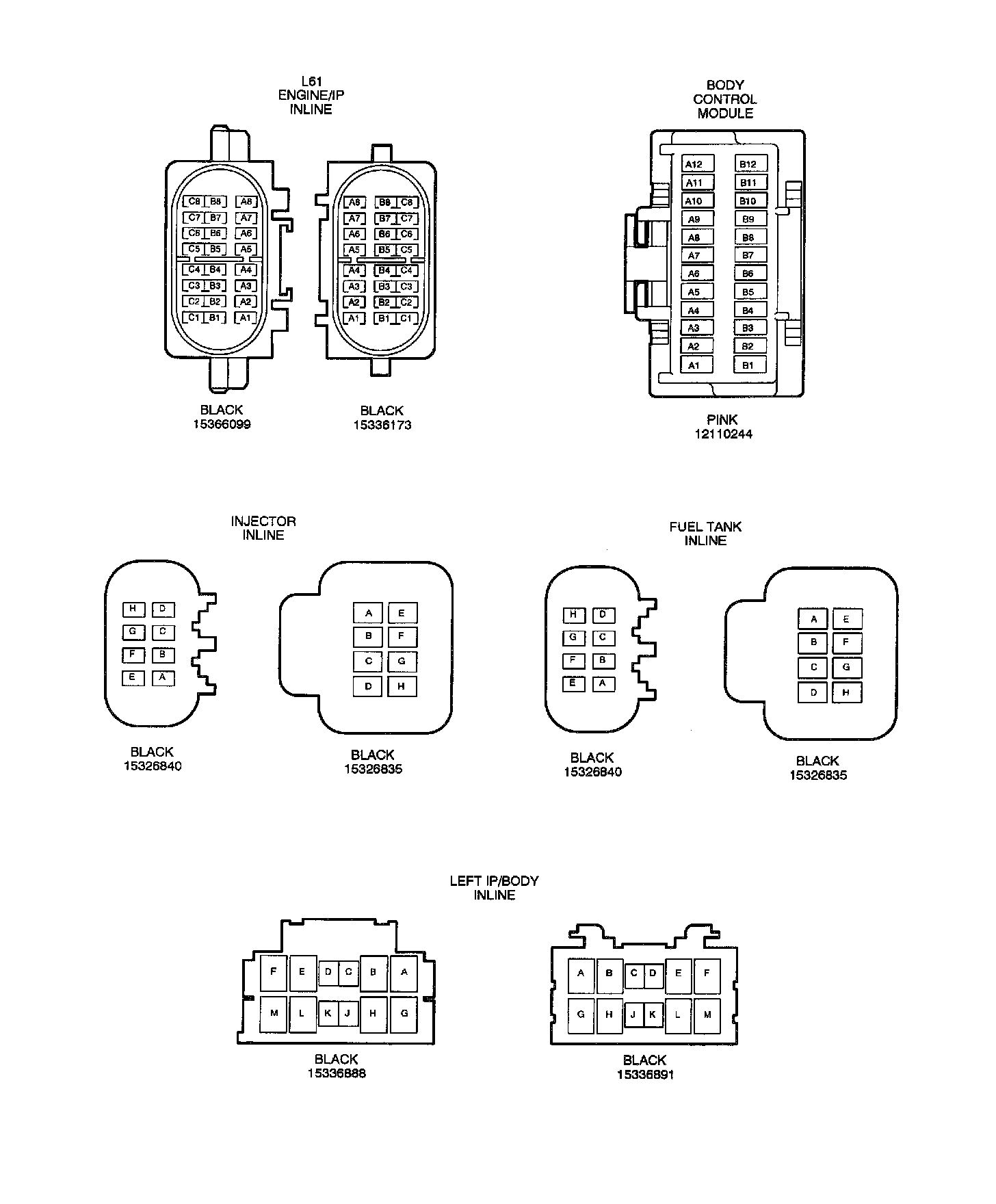

Connector Face Views

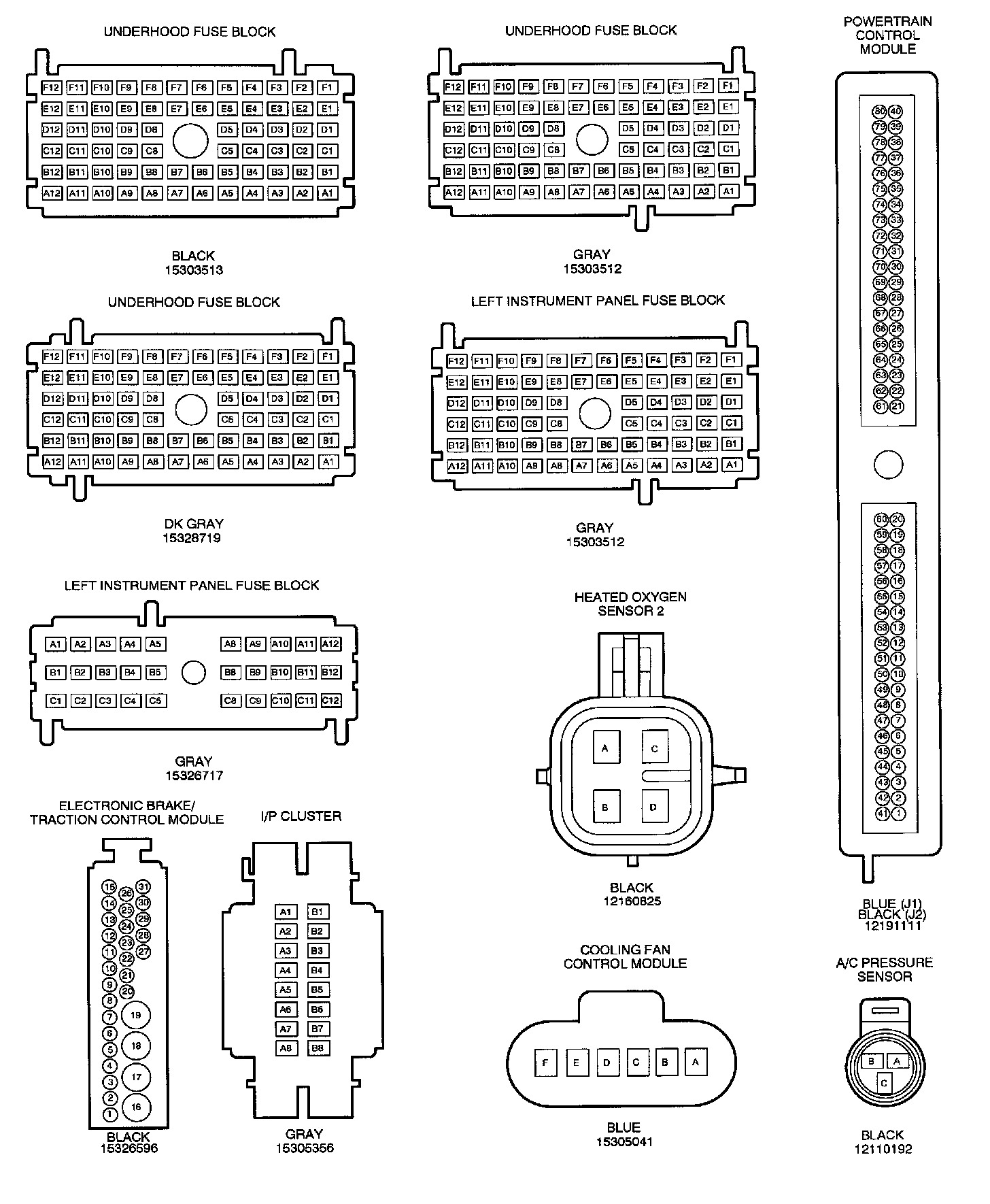

Powertrain Control Module (PCM) Connector Face Views (2001)

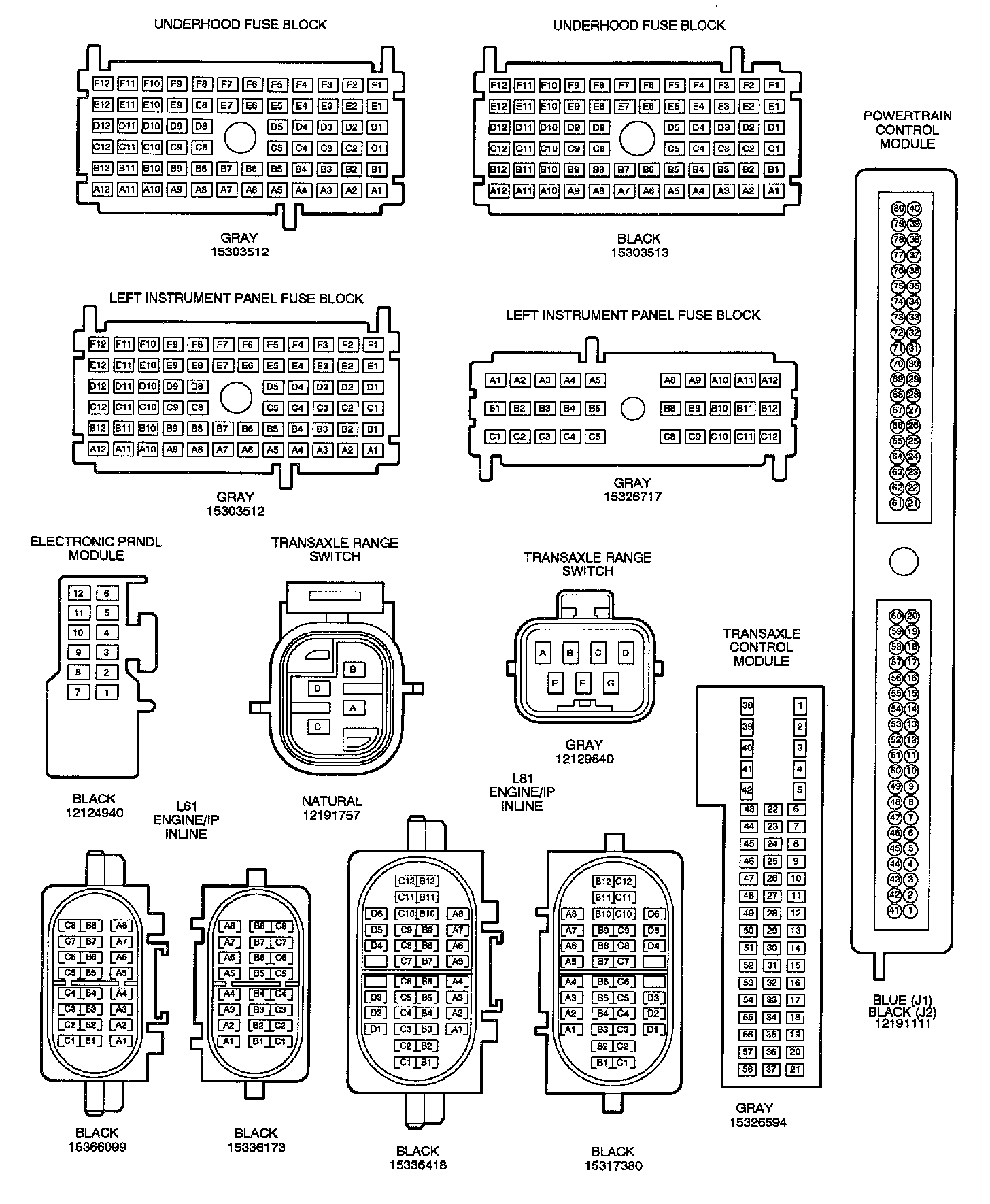

Transaxle Control Module (TCM) - (2001)

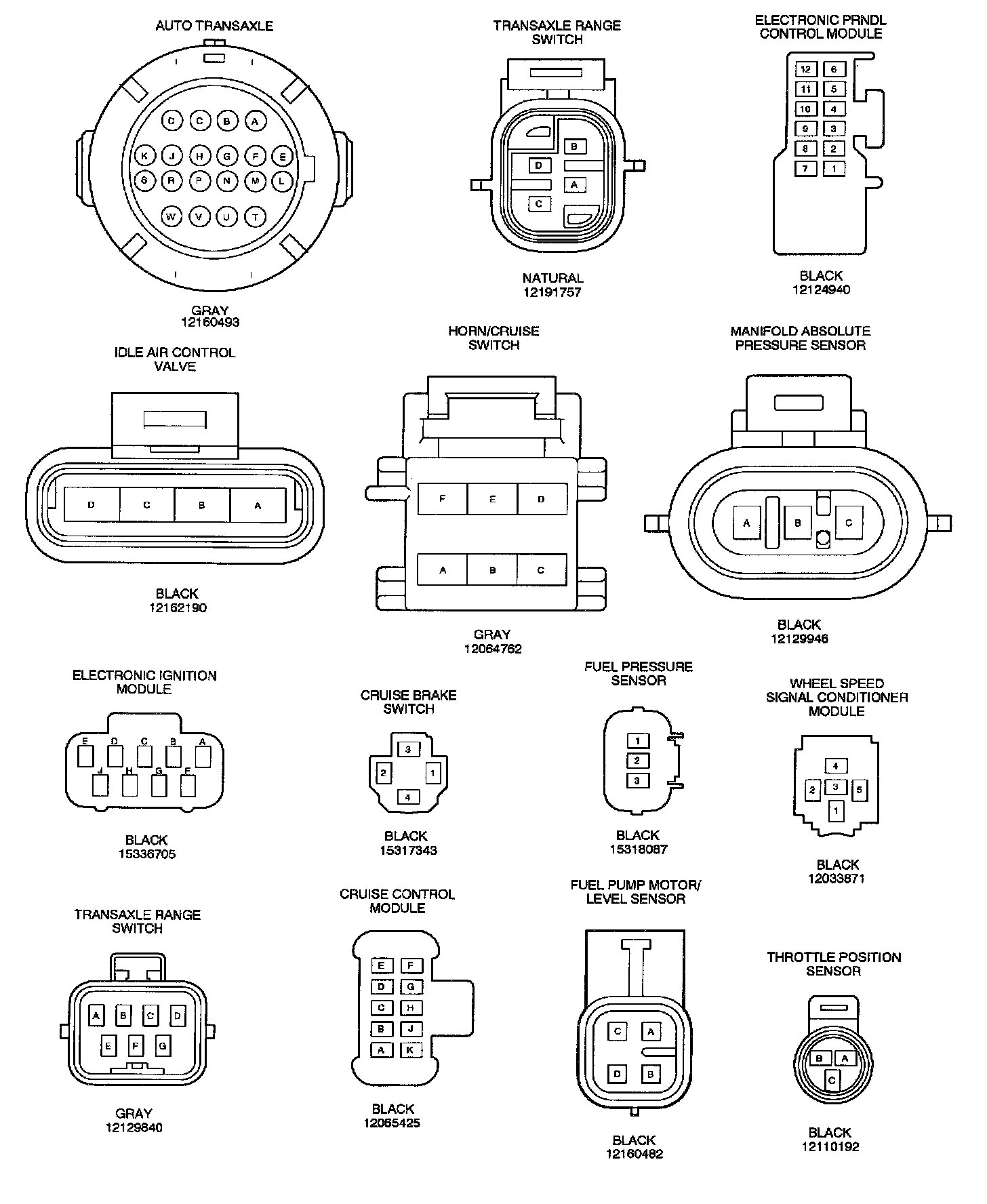

Shift Control Connector Face Views (2001)
