Home >> Pontiac >> 2000 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Power Door Lock Control Module

Power Door Lock Control Module

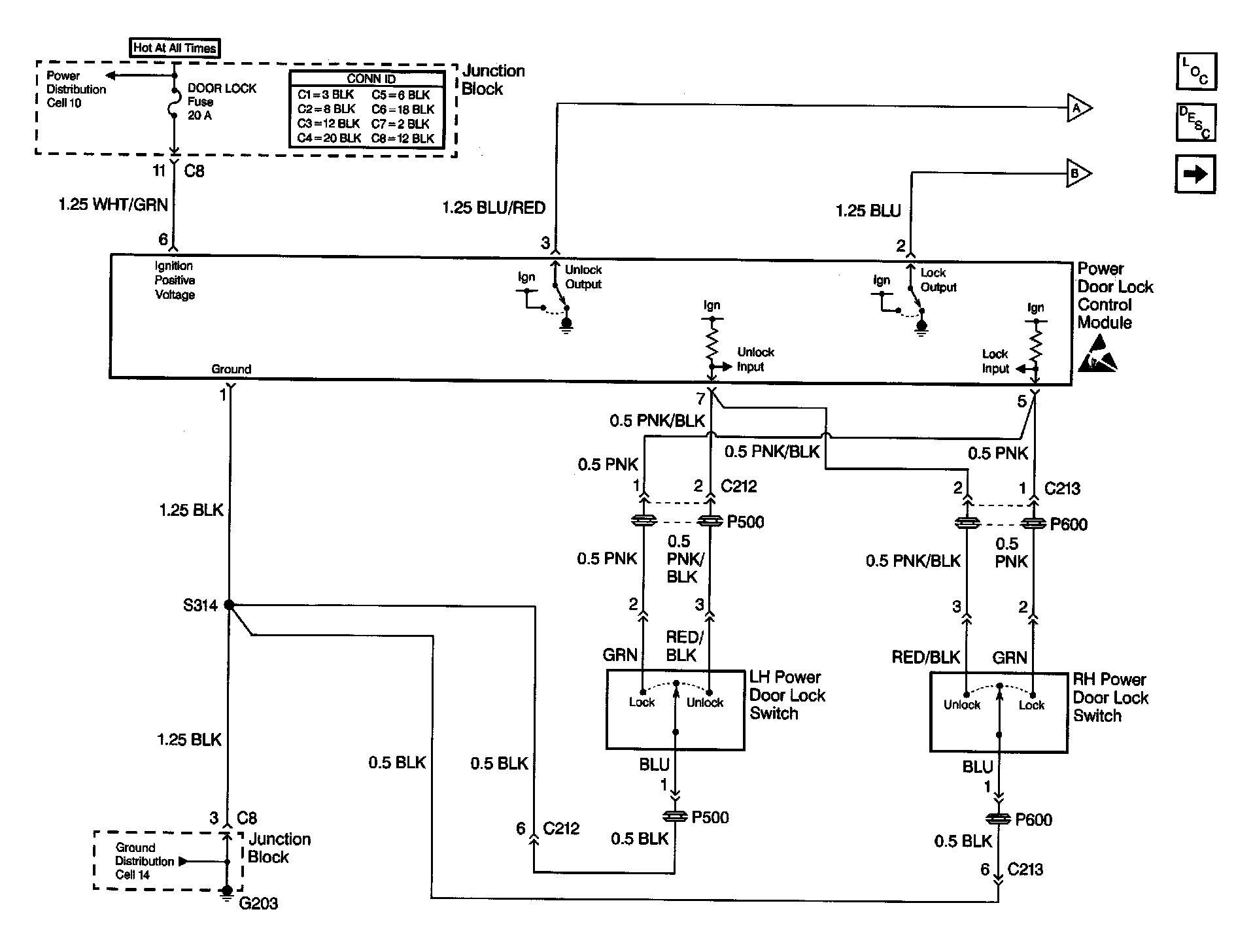

Door Lock/Indicator Schematics: Power Door Lock Control Module:
