Steering Column Assembly

Check each part of steering column assembly for damage or other malfunctions. Replace entire steering column assembly if any parts are damaged.

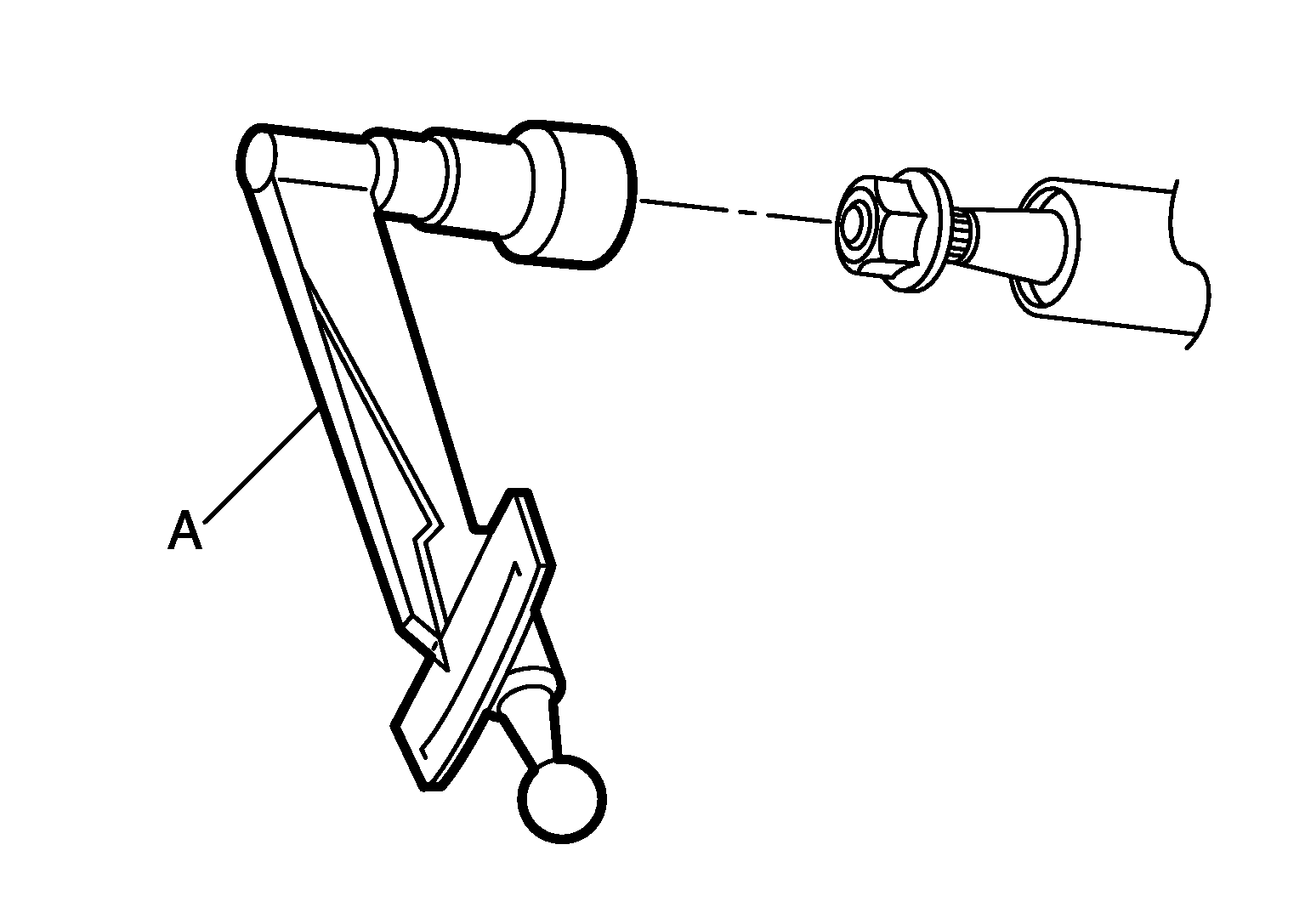

Measure steering column rotating torque using Tool. Replace steering column assembly if outside the specification.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number (A) : ST3127S000 (J-25765-A)

Rotating torque : Refer to STEERING COLUMN .

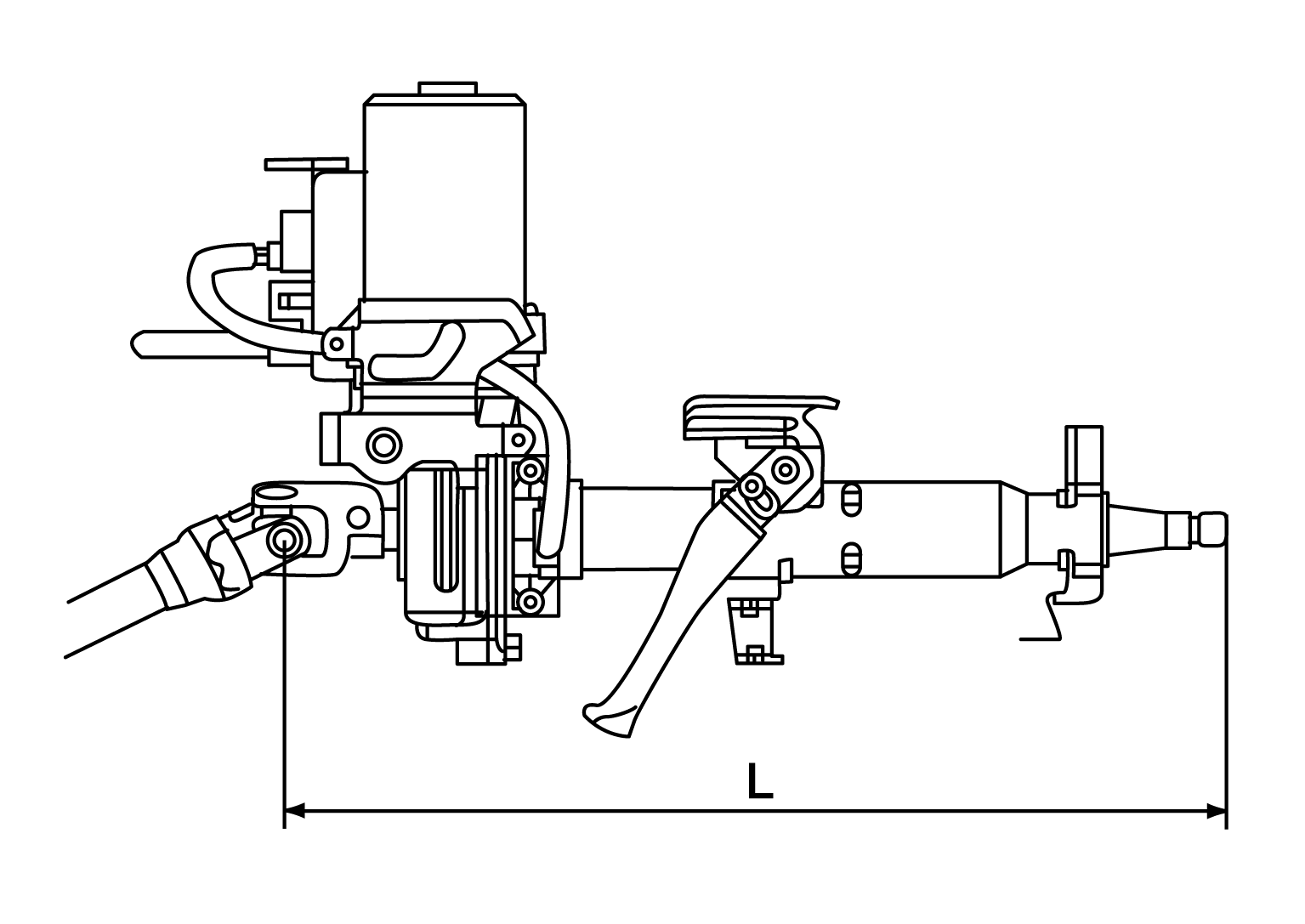

Measure the length (L) as shown below, if vehicle has been involved in a minor collision. Replace steering column assembly if outside the specifications.

Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length (L) : Refer to STEERING COLUMN .

Check each part of steering column assembly for damage or other malfunctions. Replace if there are any abnormal conditions.
Check the steering wheel play, neutral position steering wheel, steering wheel turning force, and front wheel turning angle. Refer to INSPECTION

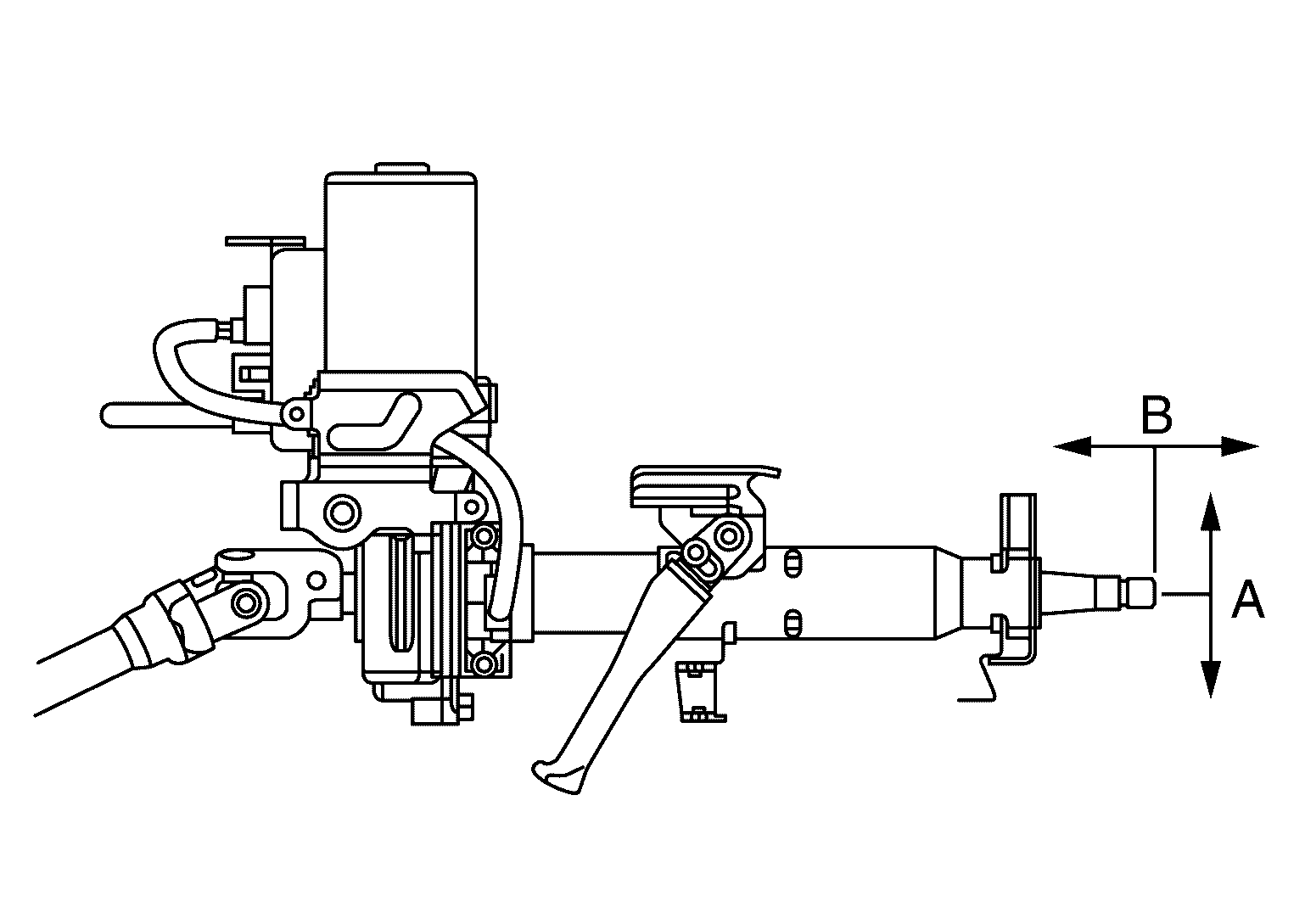

Check tilt mechanism operating range and telescopic mechanism operating range as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

Tilt mechanism operating range (A)	: Refer to STEERING COLUMN .
Telescopic mechanism operating range (B)	: Refer to STEERING COLUMN .
