Fuel Supply: General Description

The fuel tank is located under the floor of the rear seats to provide increased safety and a wider luggage space.
A plastic fuel tank has been adopted to reduce weight, and improve anti-corrosion effectiveness. < 4G6>
A fuel pump module, which unifies fuel pump, fuel filter, reservoir cup and fuel level sensor, has been adopted to lighten weight and improve serviceability.

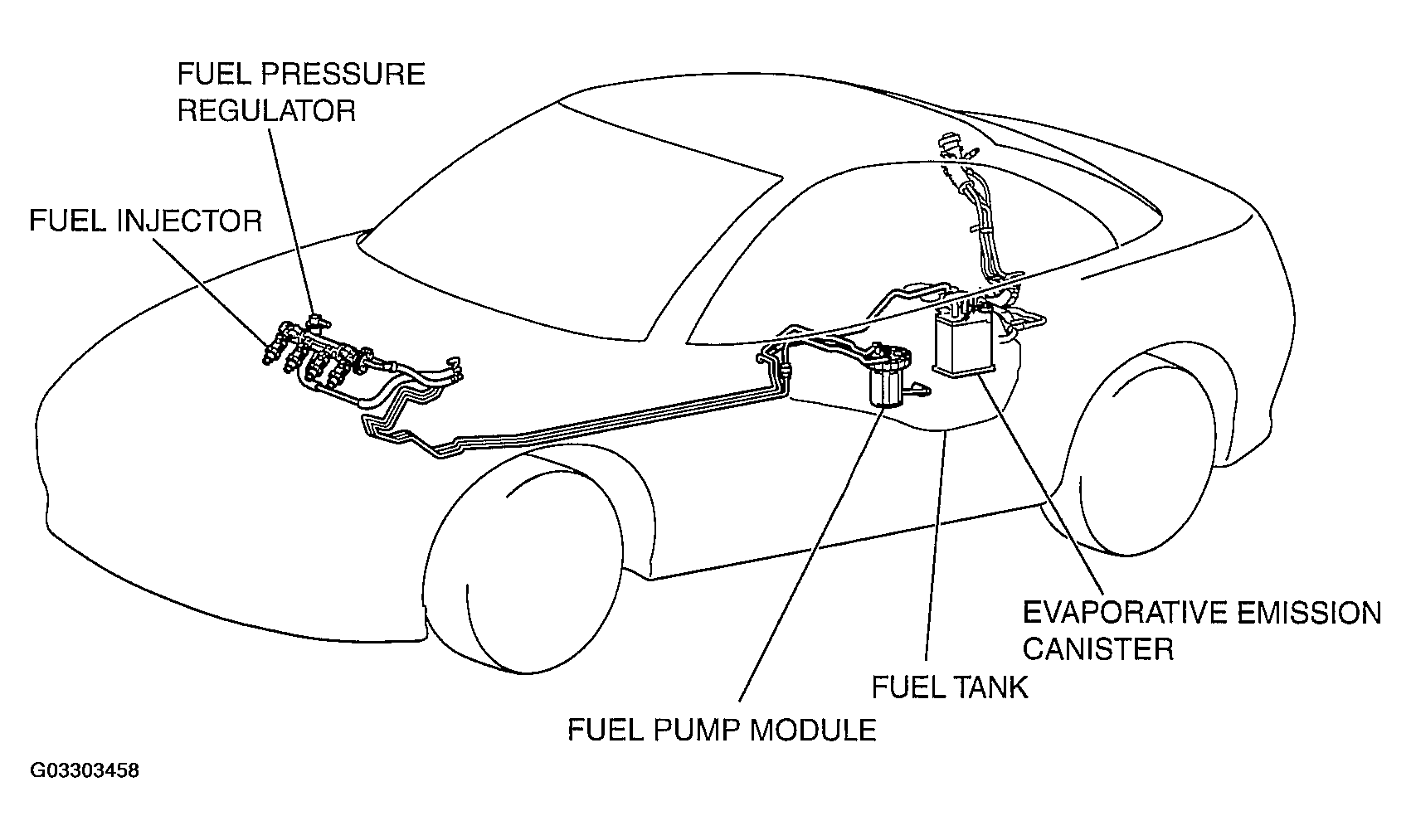

Fig 1: Identifying Fuel Supply Components (4G6)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

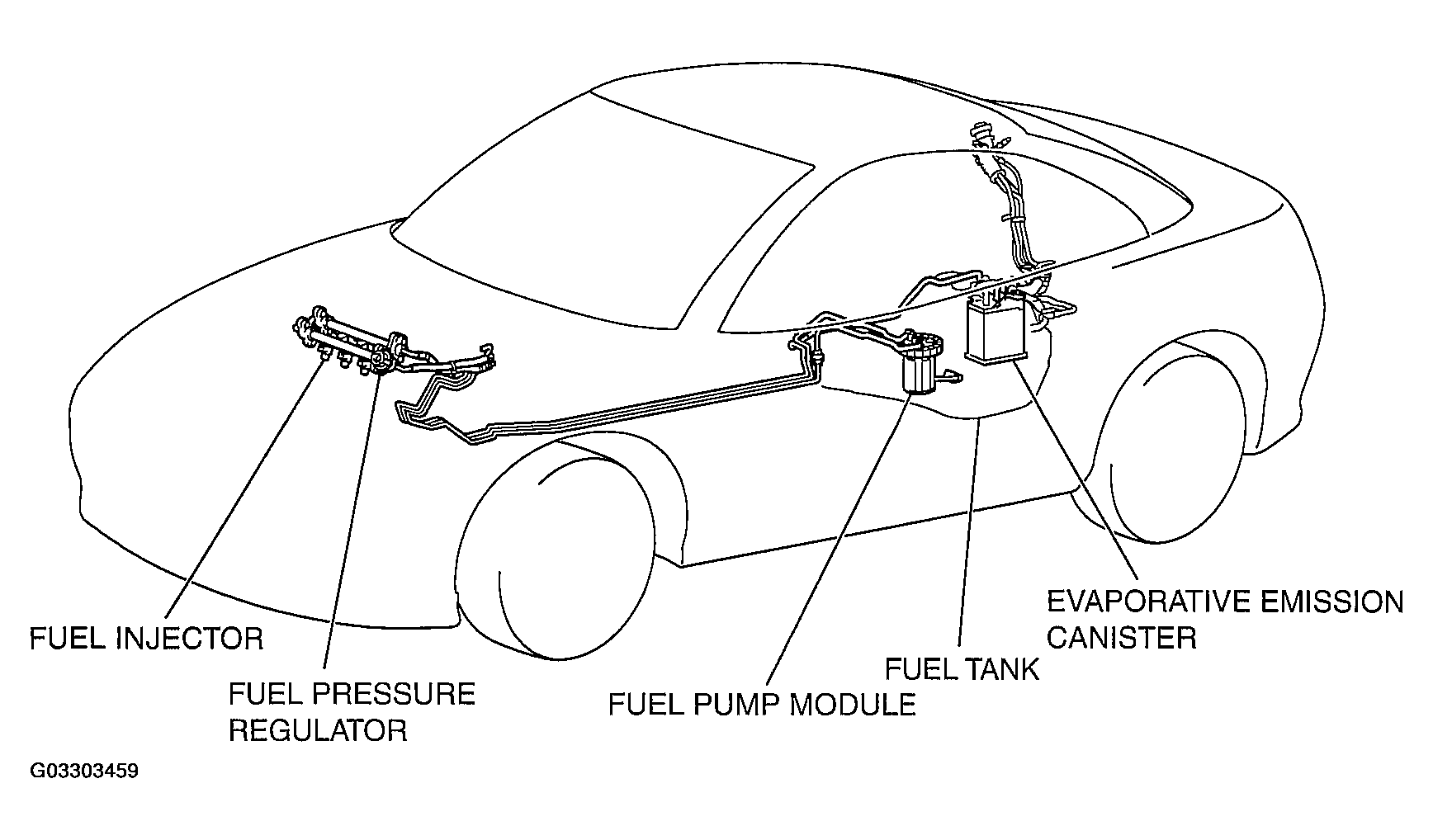

Fig 2: Identifying Fuel Supply Components (6G7)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
