Control System Device and Control Relationship Chart
Control System Device and Control Relationship Chart

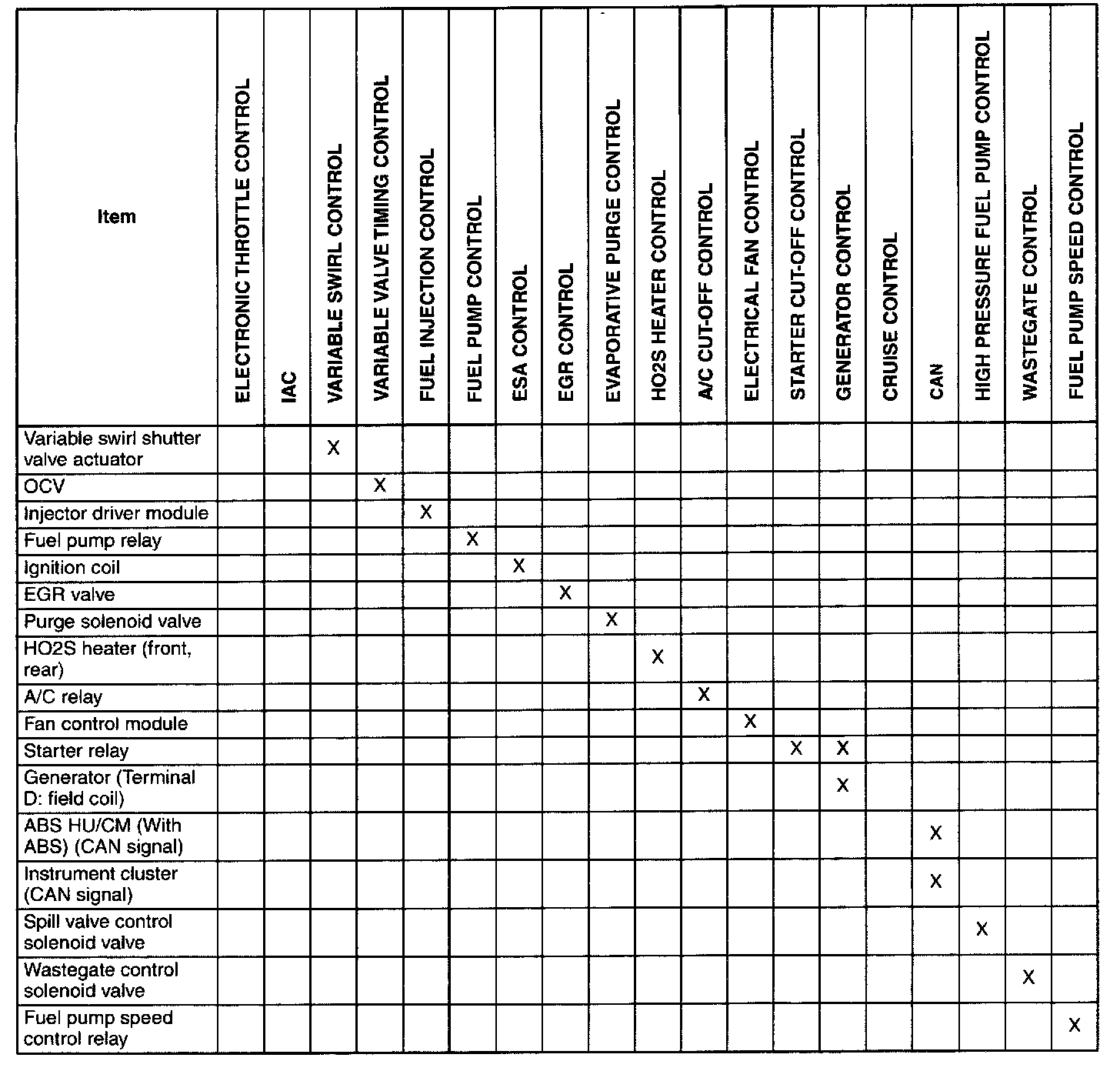

Control System Device And Control Relationship Chart:

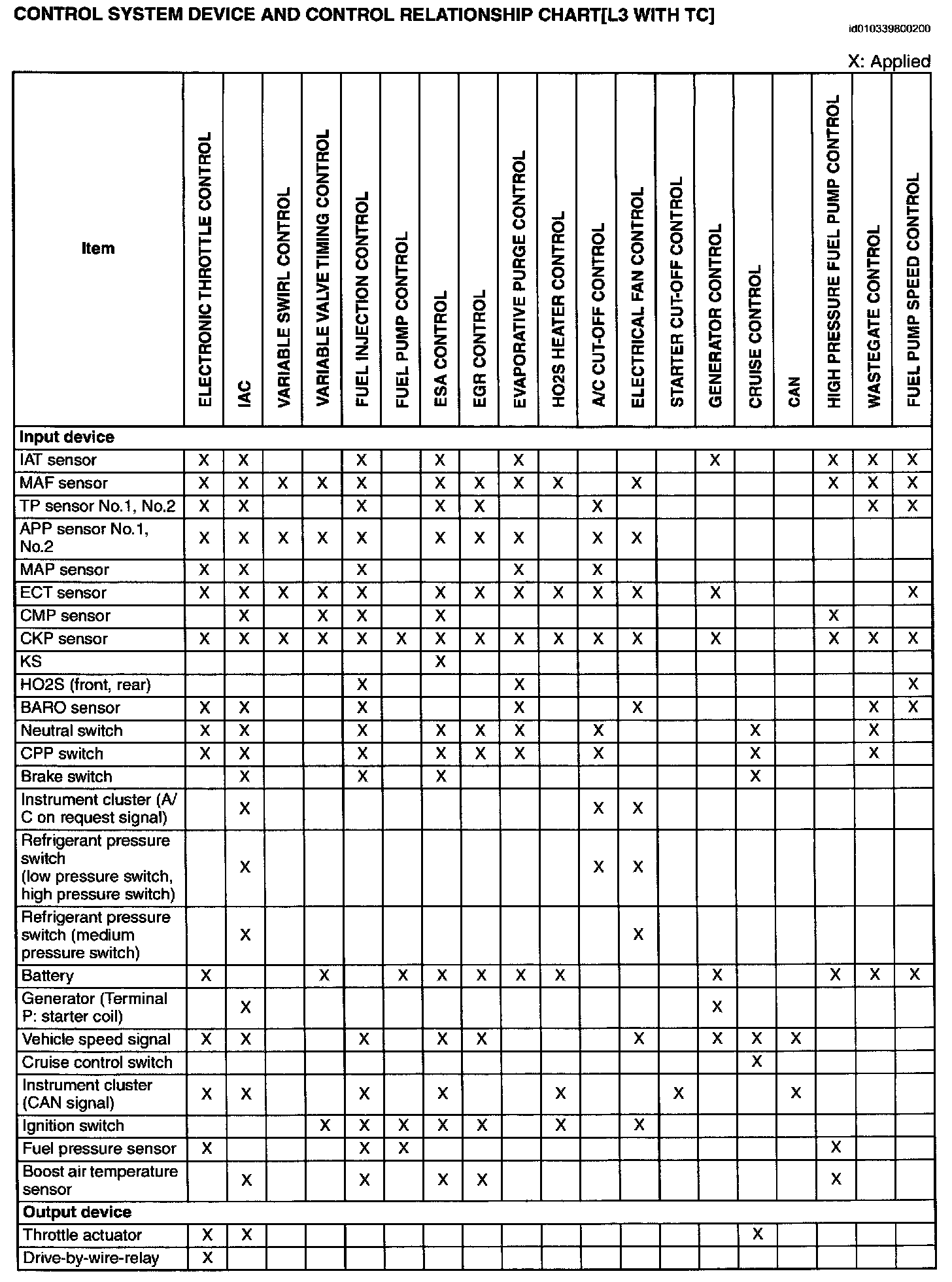

Control System Device And Control Relationship Chart:
