Home >> Mazda >> 2006 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Connector Views

Connector Views

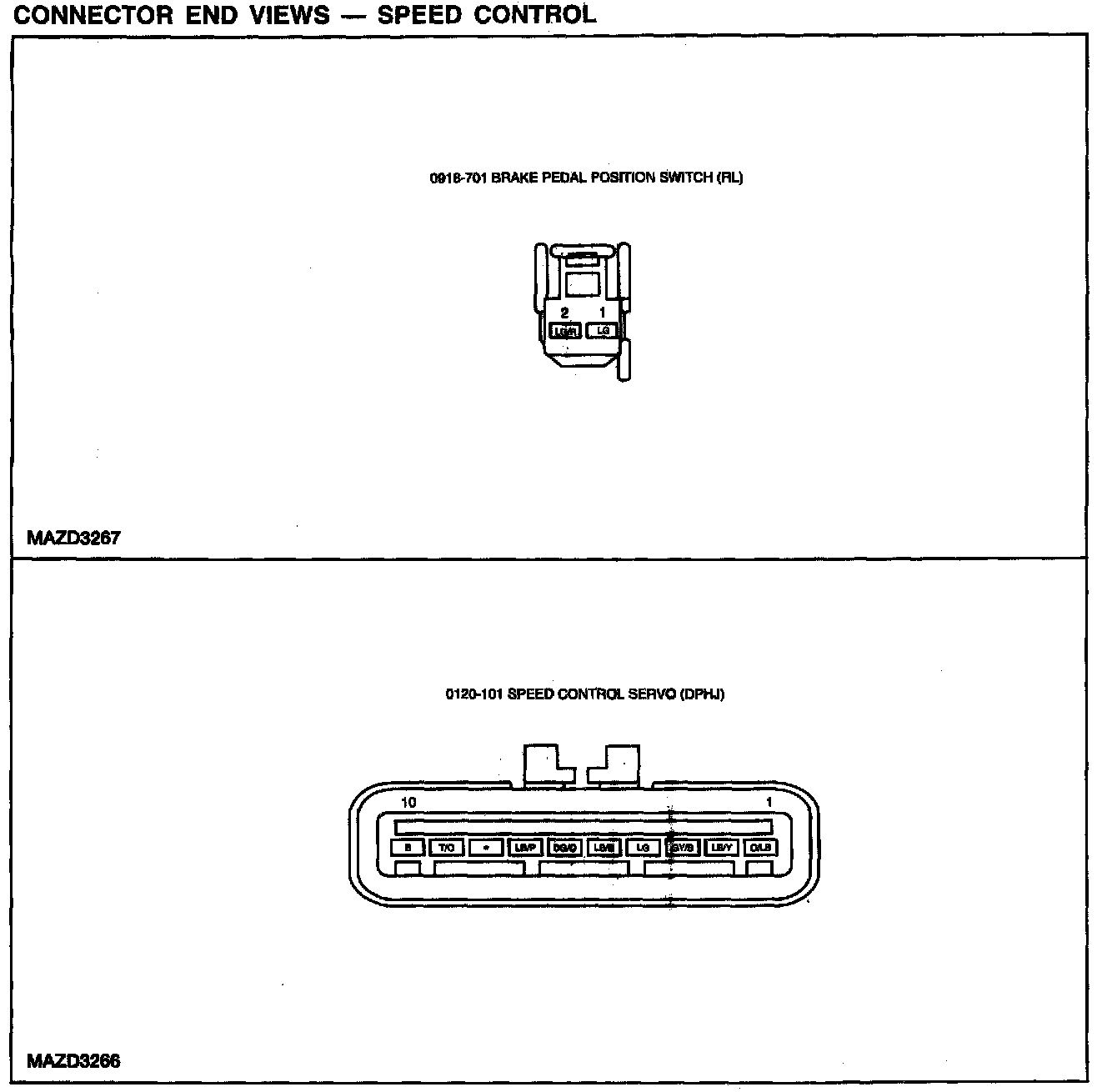

Connector End Views - Speed Control Part 1:

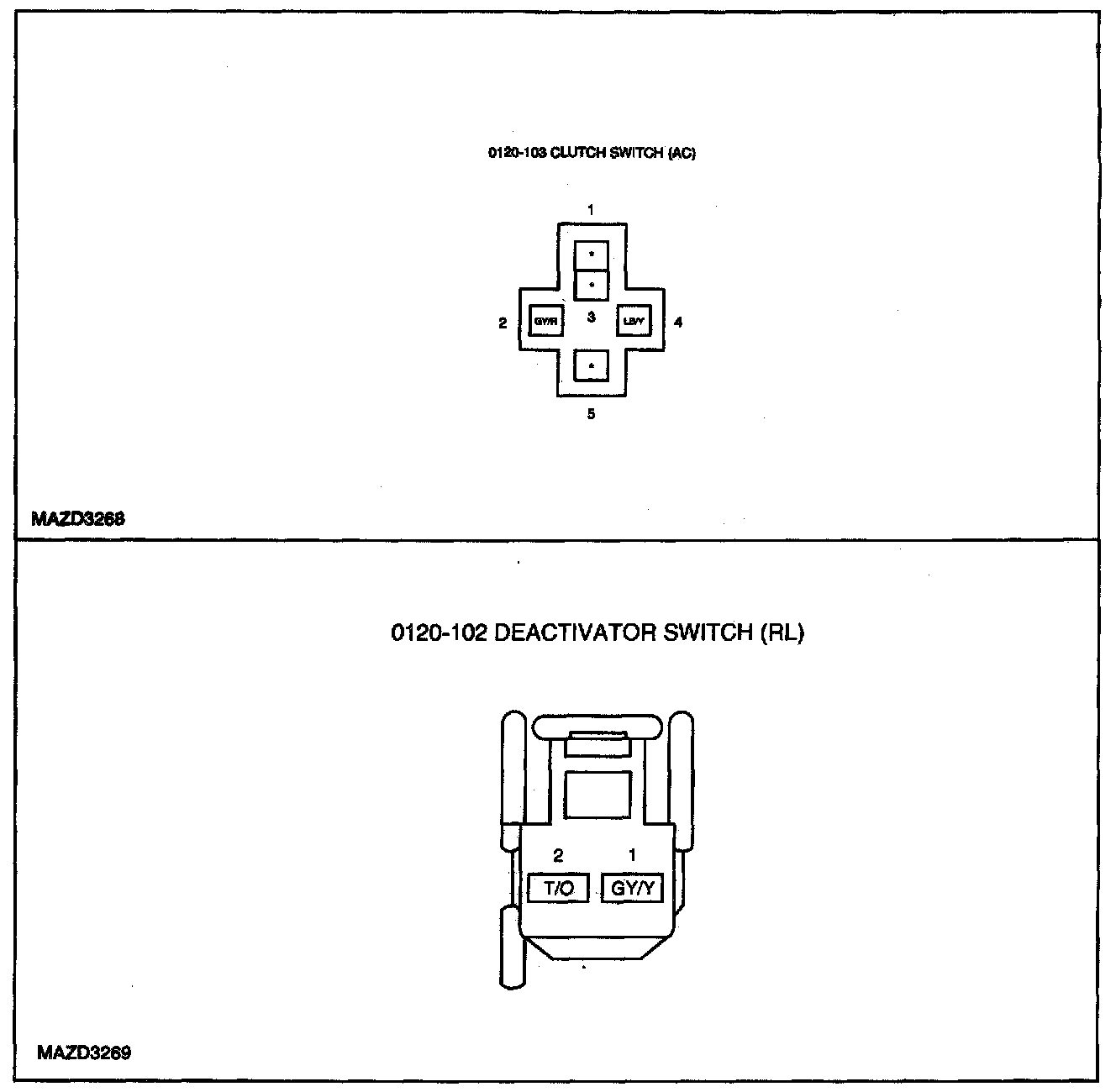

Connector End Views - Speed Control Part 2:
