Symptom Troubleshooting [Engine Control System (L3): Foreword

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:
  • If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE .)
  • If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART .)

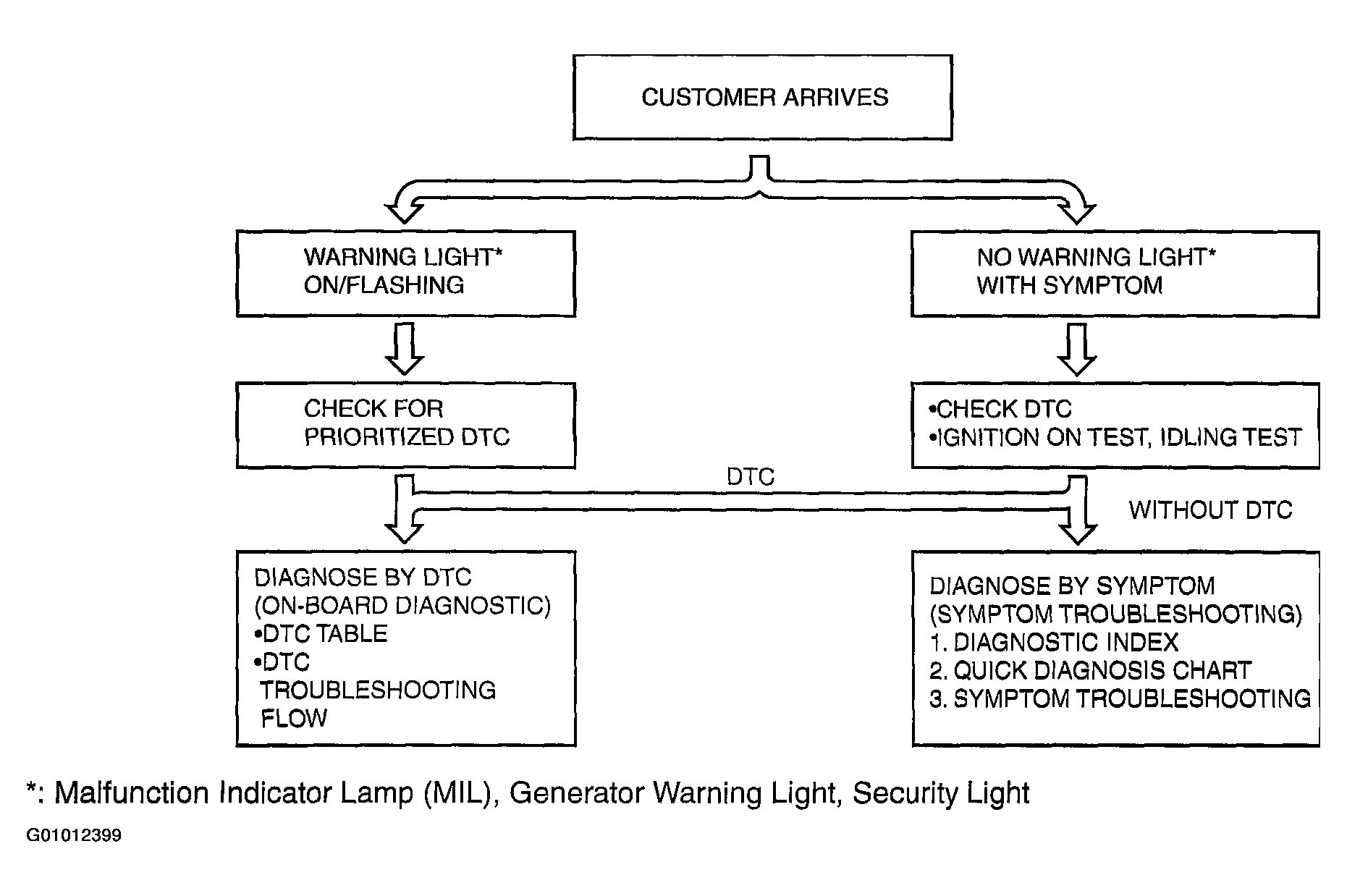

Fig 1: Malfunction Diagnosis Chart

Courtesy of MAZDA MOTORS CORP.
