Torque Specifications

SERVICE SPECIFICATIONS: 2GR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

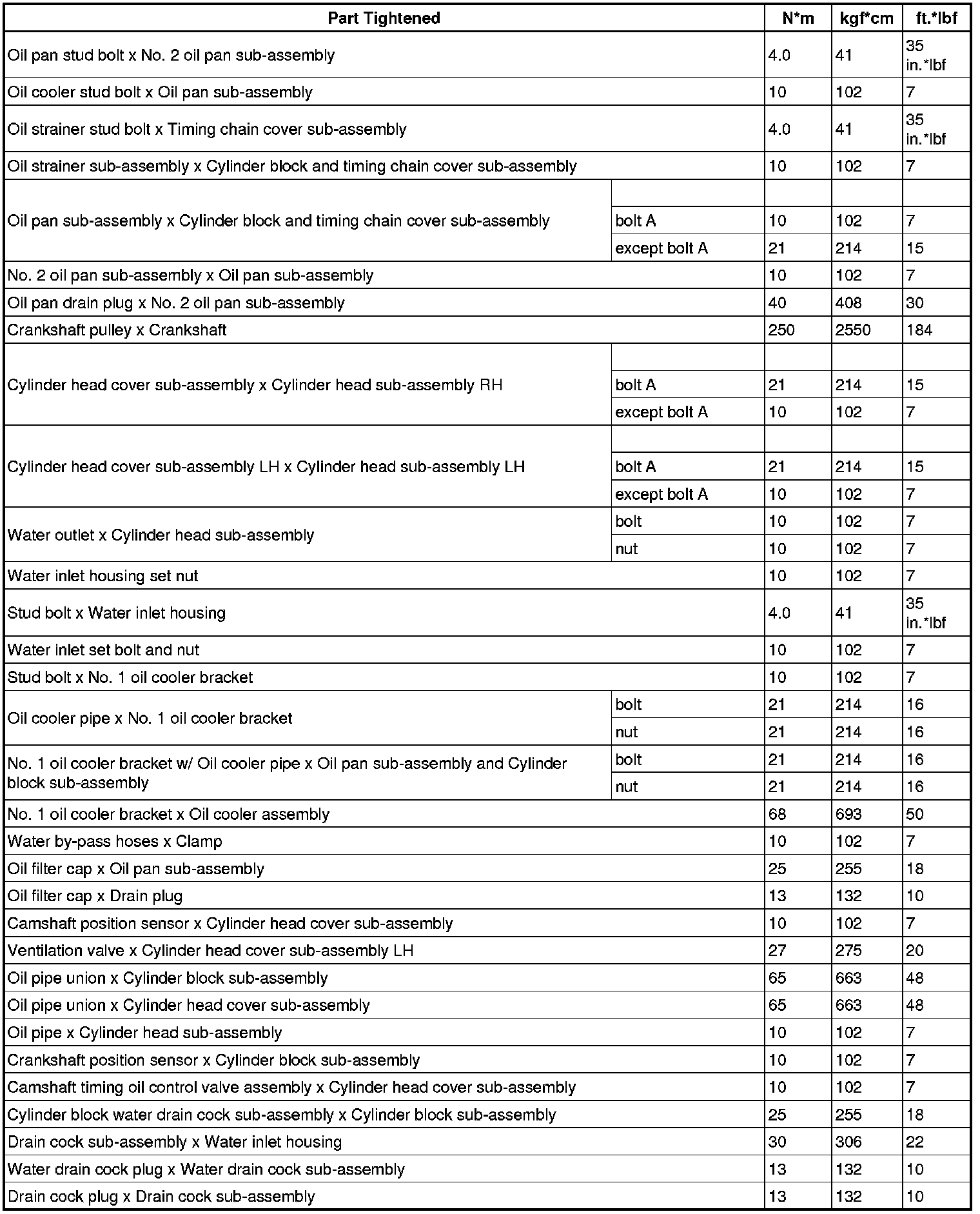

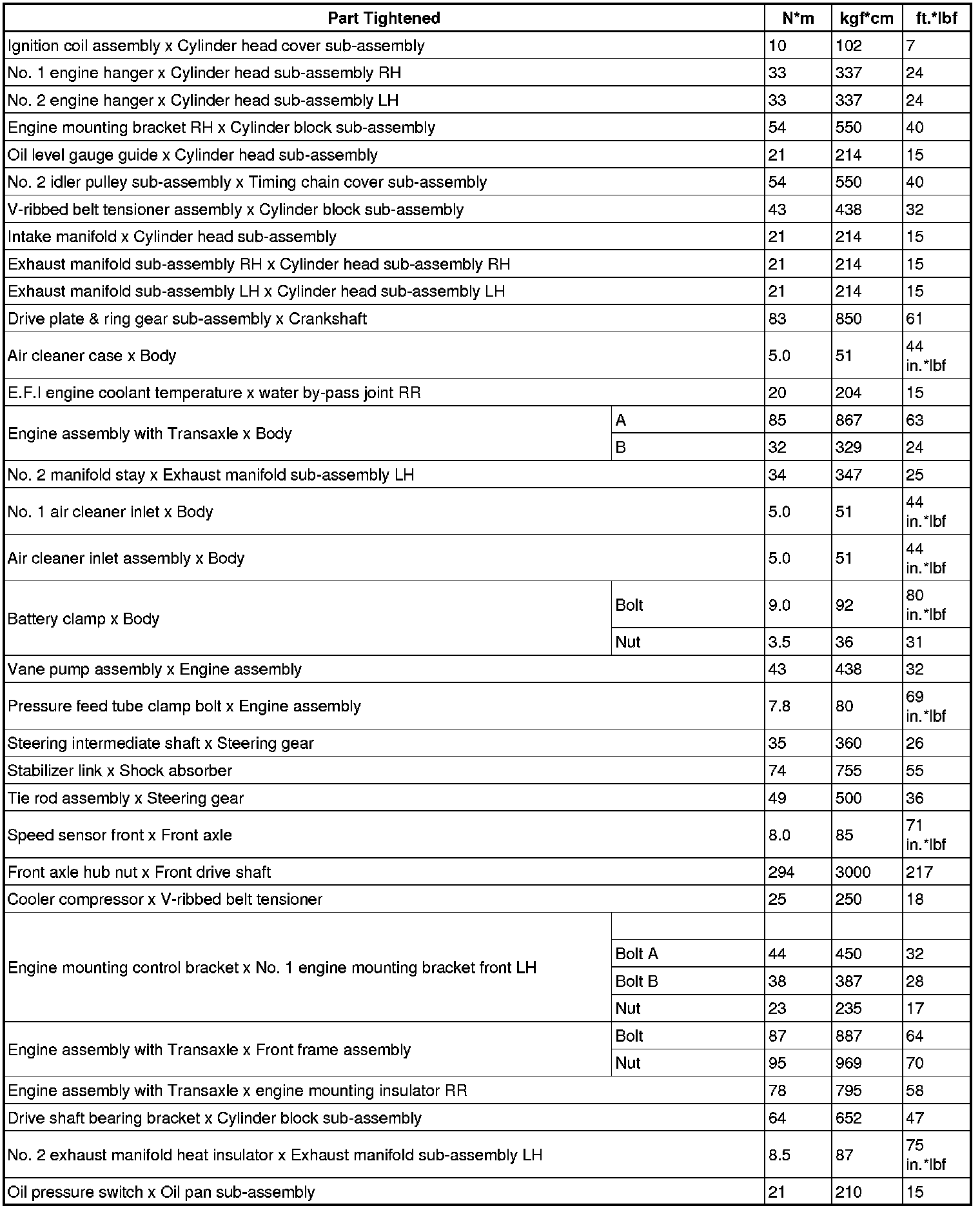

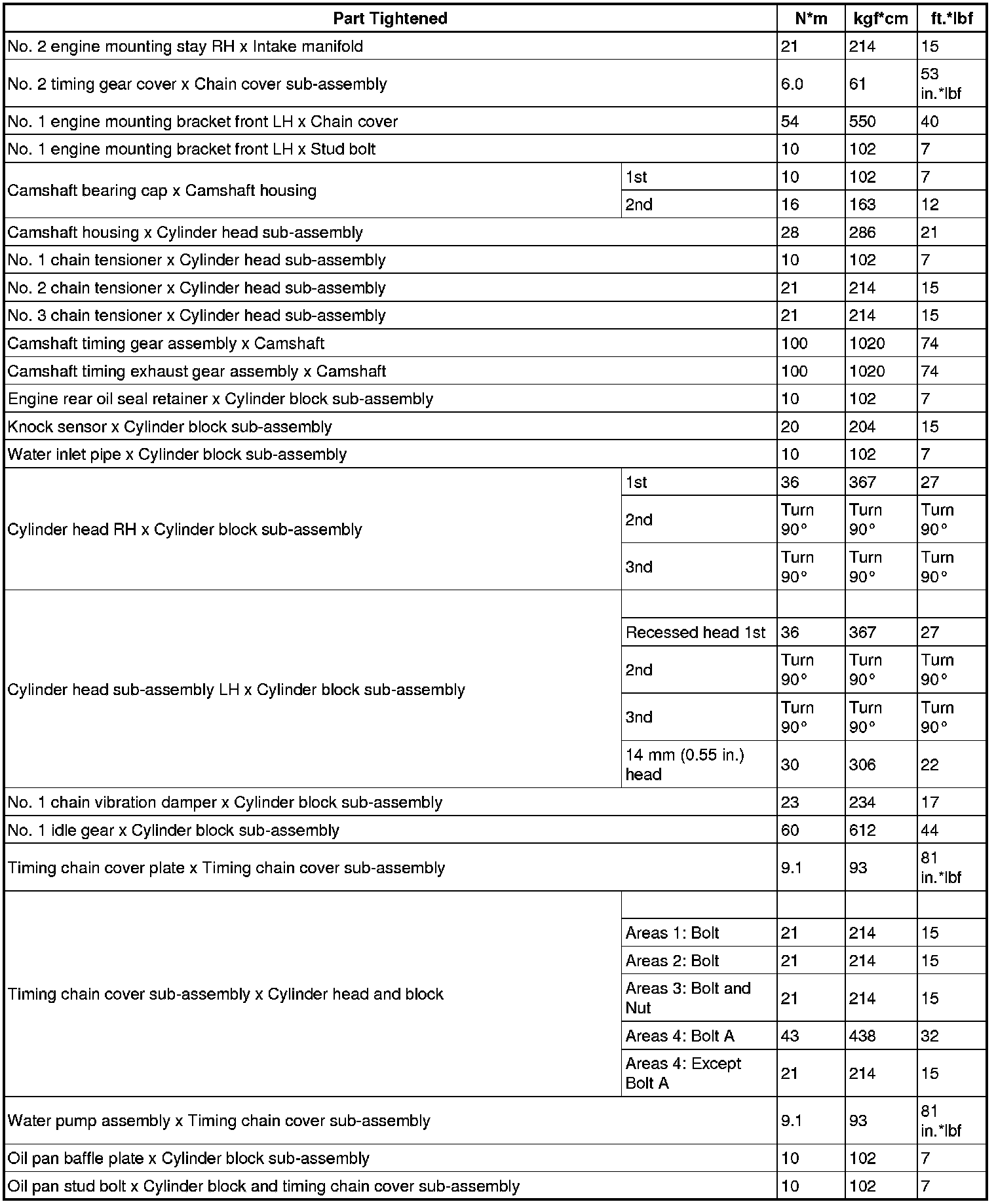

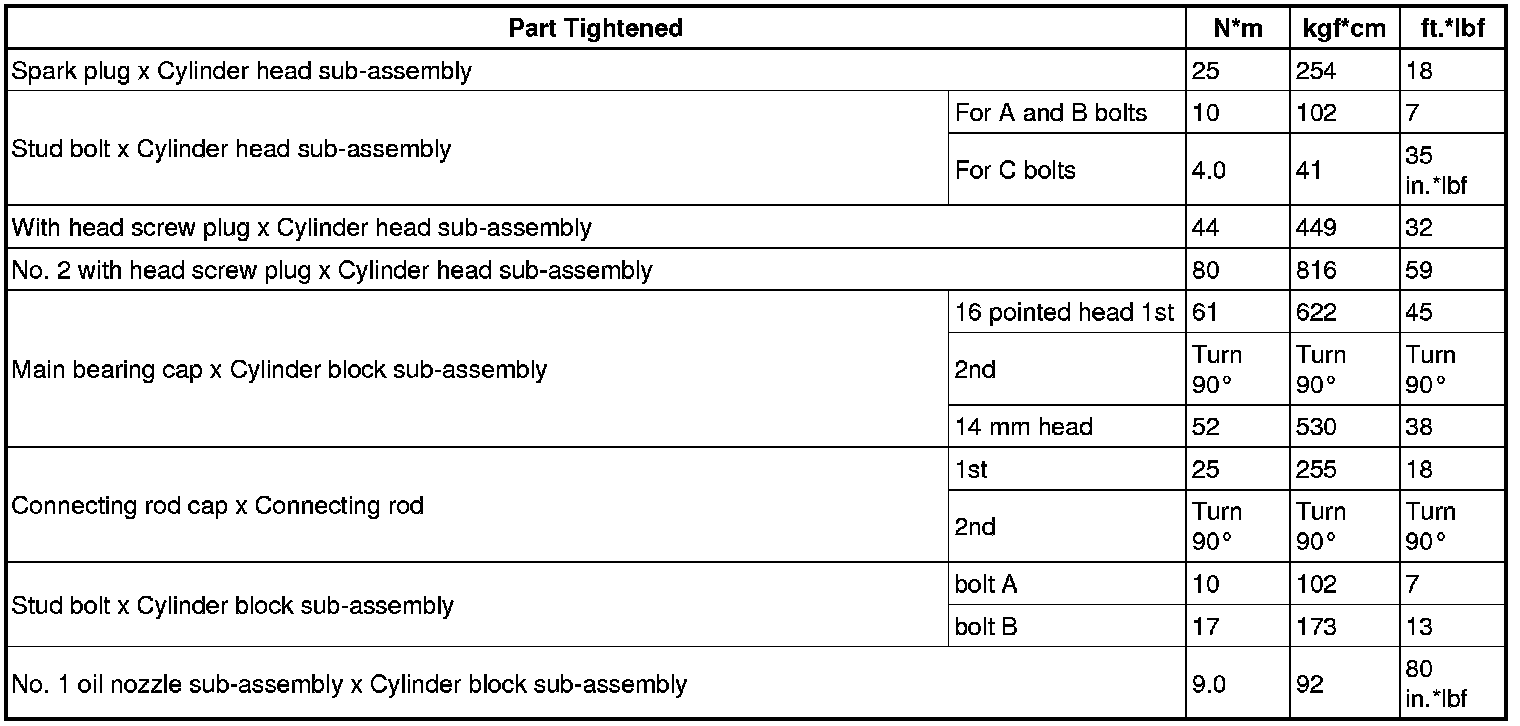

TORQUE SPECIFICATIONS

















Cylinder Head Bolt re-usability
Cylinder head set bolt
Outside diameter
Standard 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum 10.70 mm (0.4213 in.)

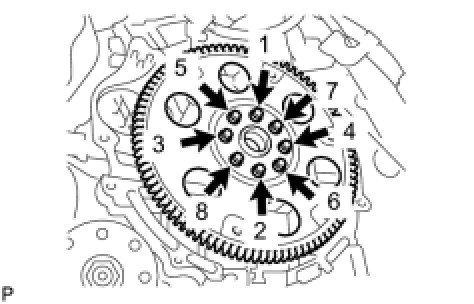

Drive Plate





Drive plate & ring gear sub-assembly x Crankshaft 83 Nm 850 (kgf-cm, 61 ft-lbf)
