Land Rover
>>
2008
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
>>
Memory Positioning Module
Memory Positioning Module
Memory Control Module

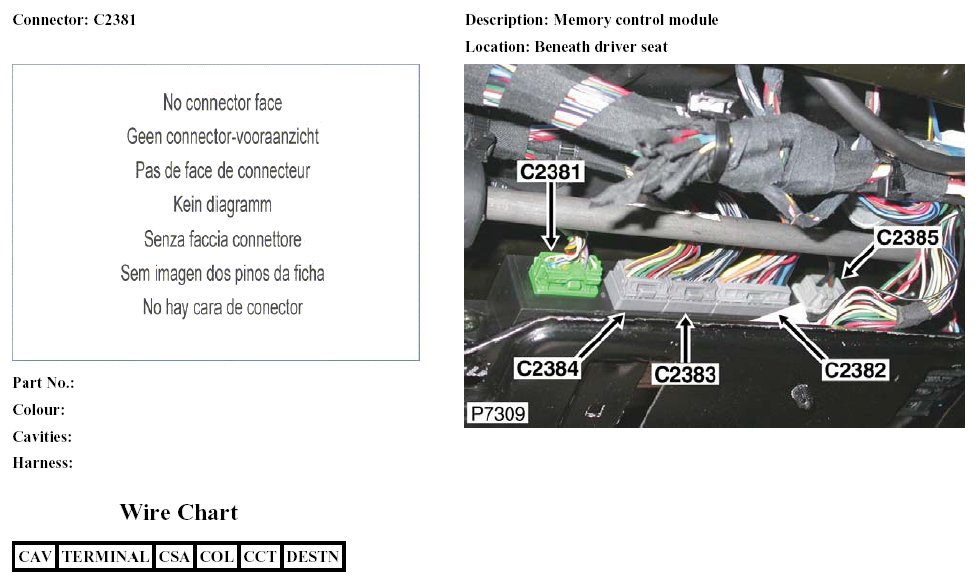

C2381:

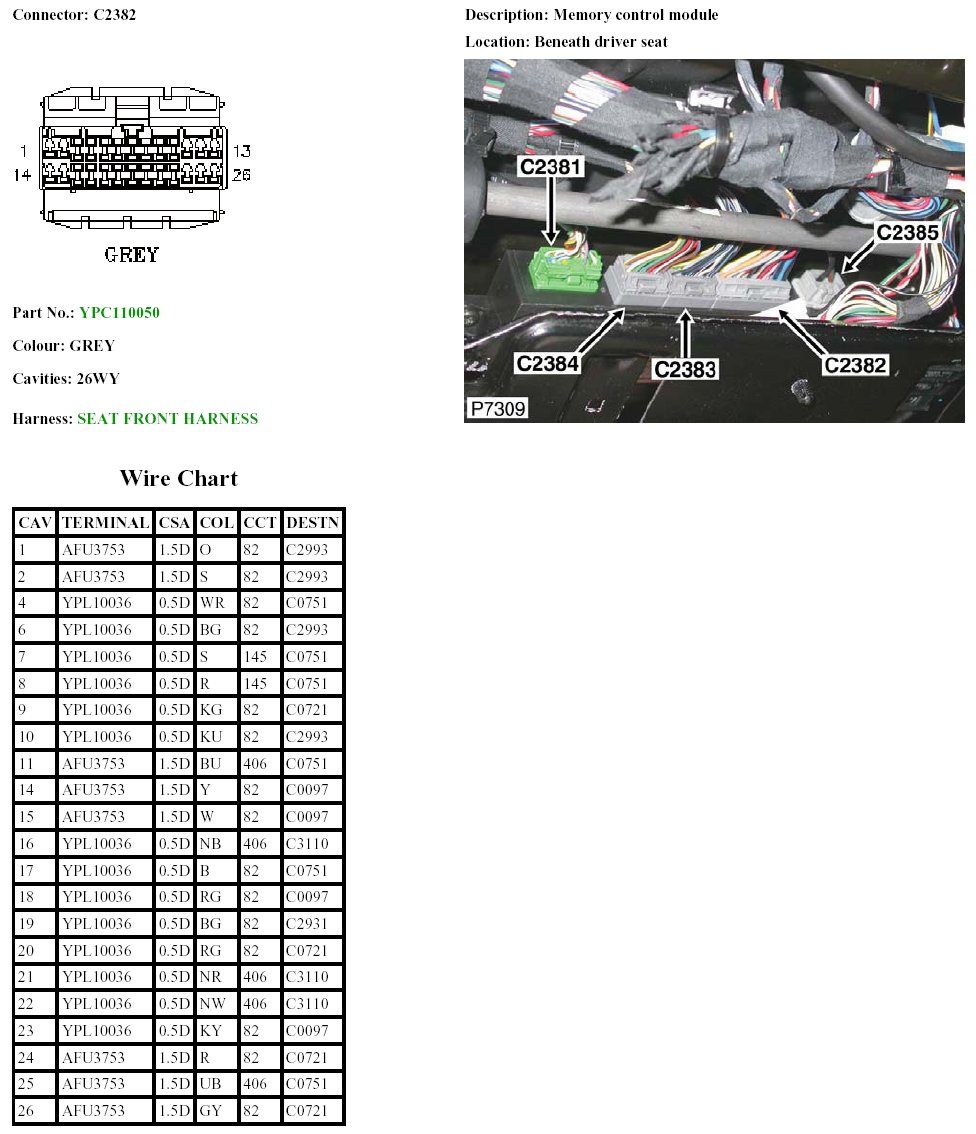

C2382:

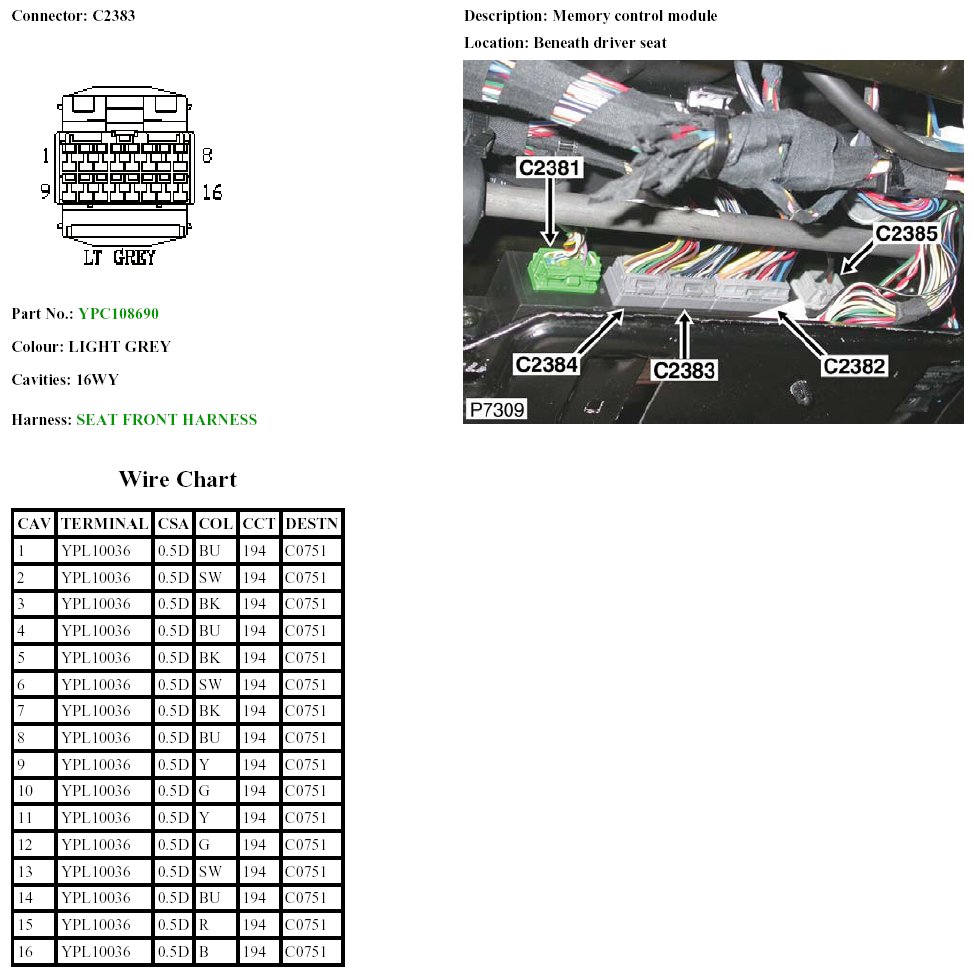

C2383:

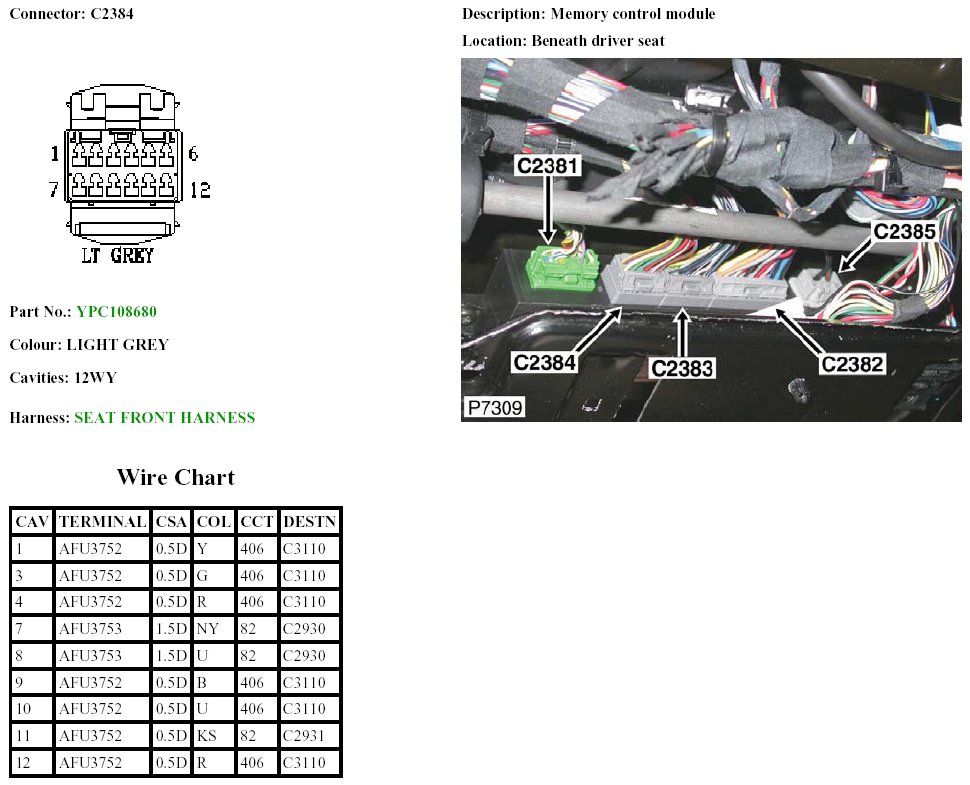

C2384:

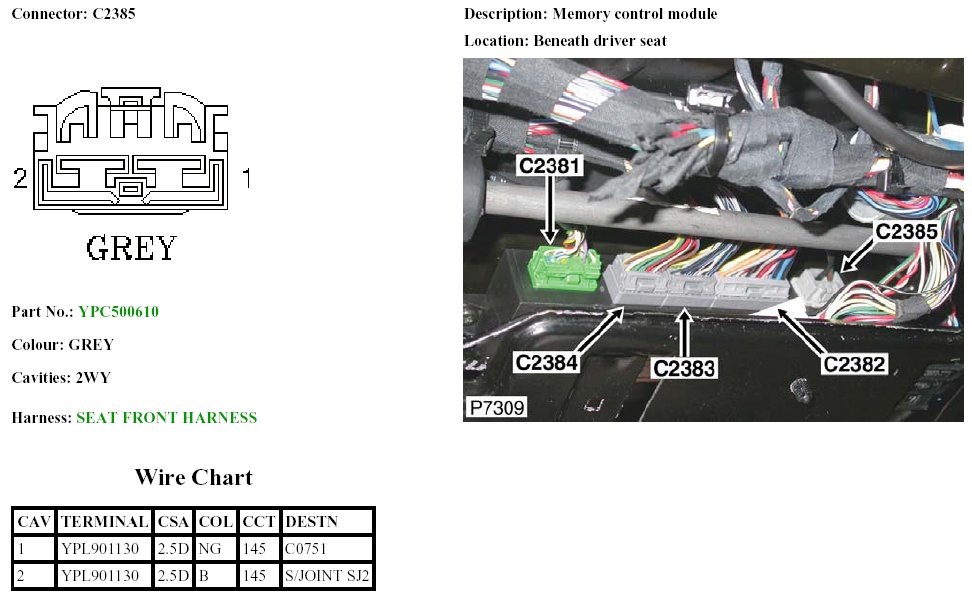

C2385:
