Dynamic Response Module

Dynamic Response Module

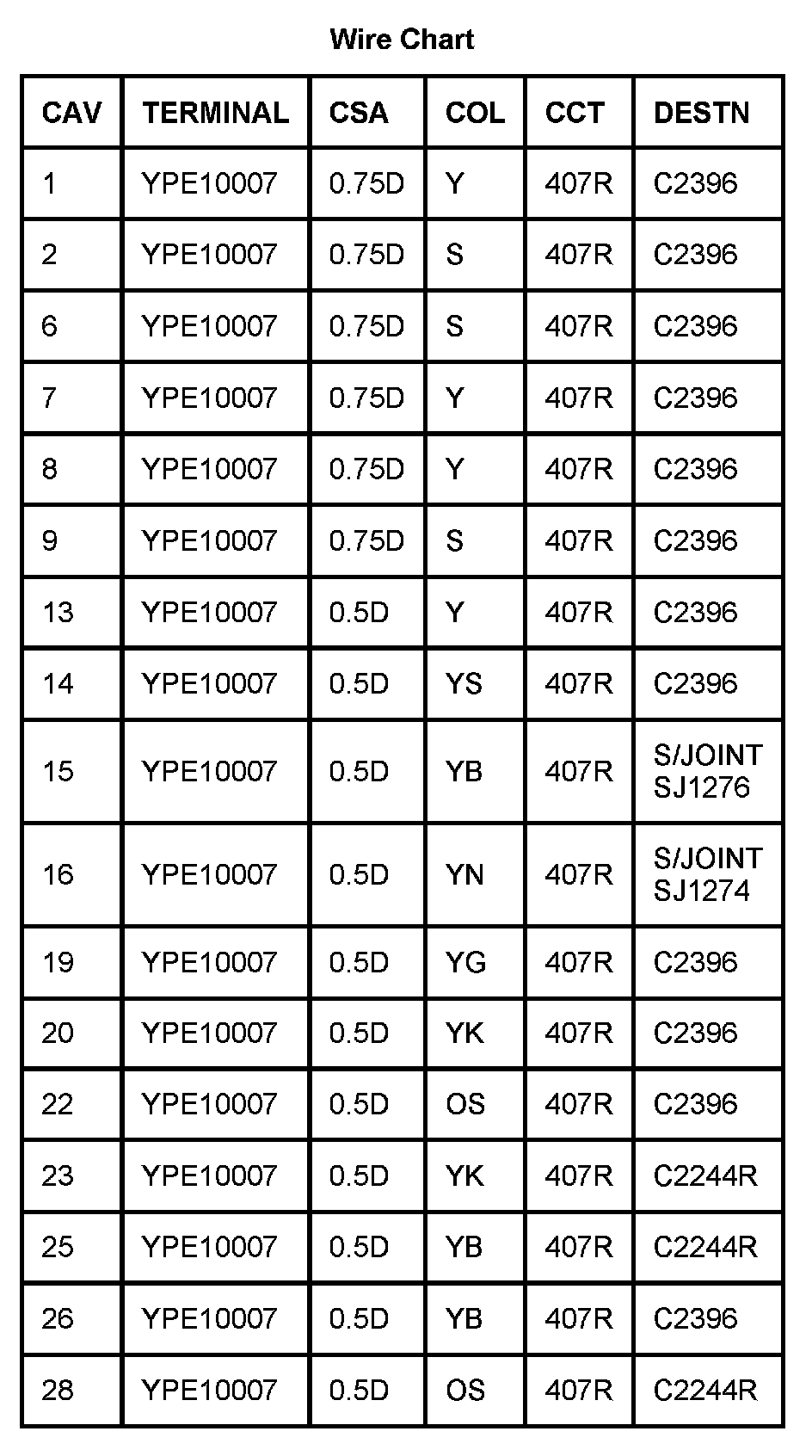

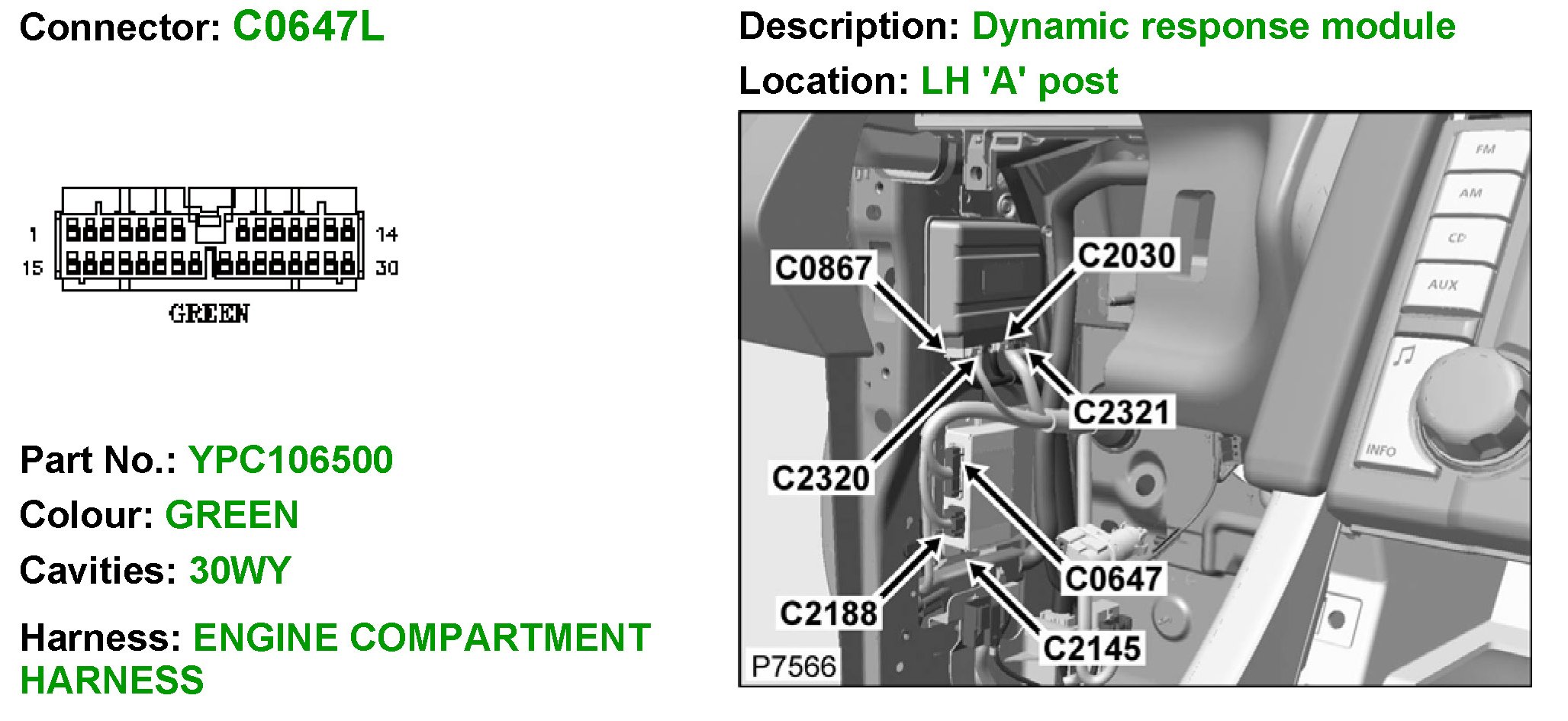

C0647L (Part 1):

C0647L (Part 2):

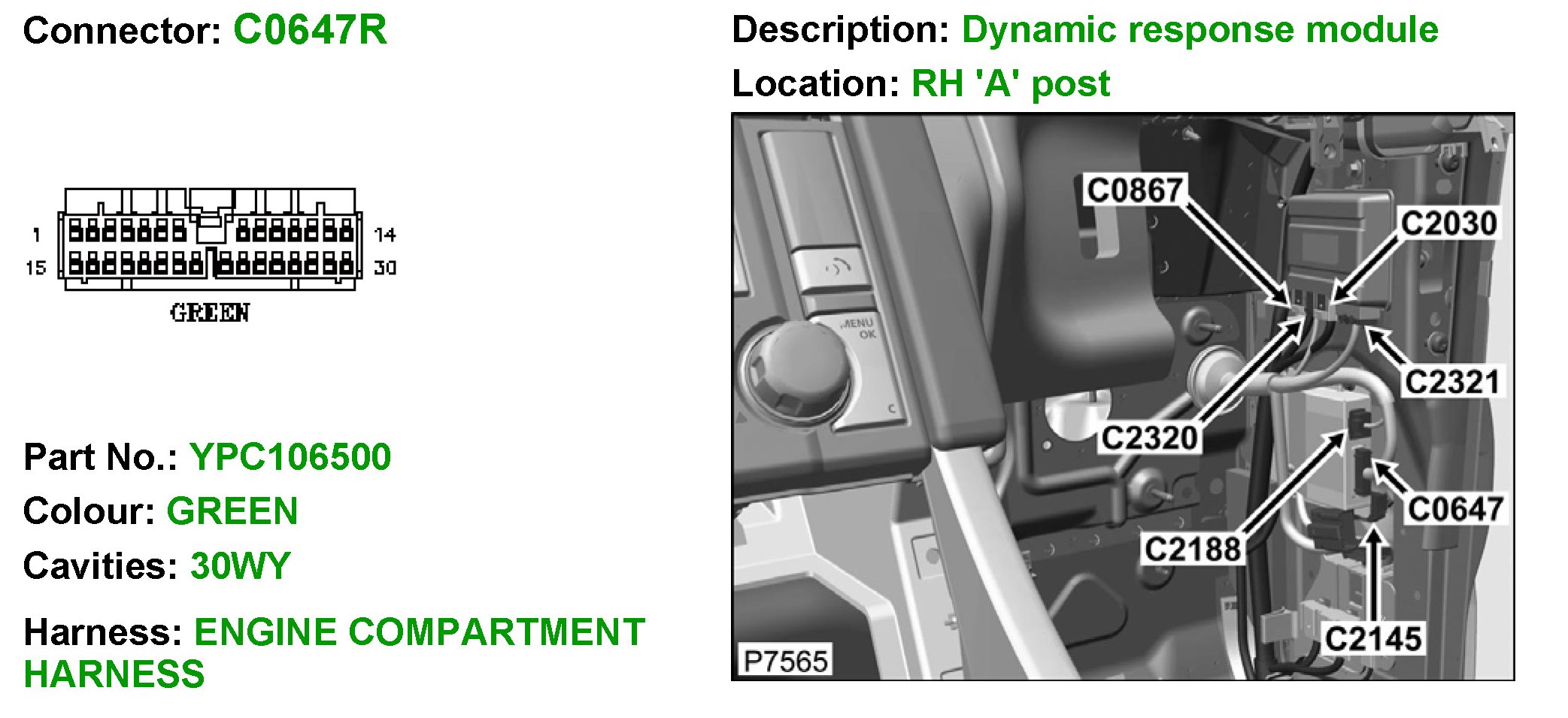

C0647R (Part 1):

C0647R (Part 2):
