Home >> Land Rover >> 2006 >> LR3 (LA) V6-4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

ABS Module

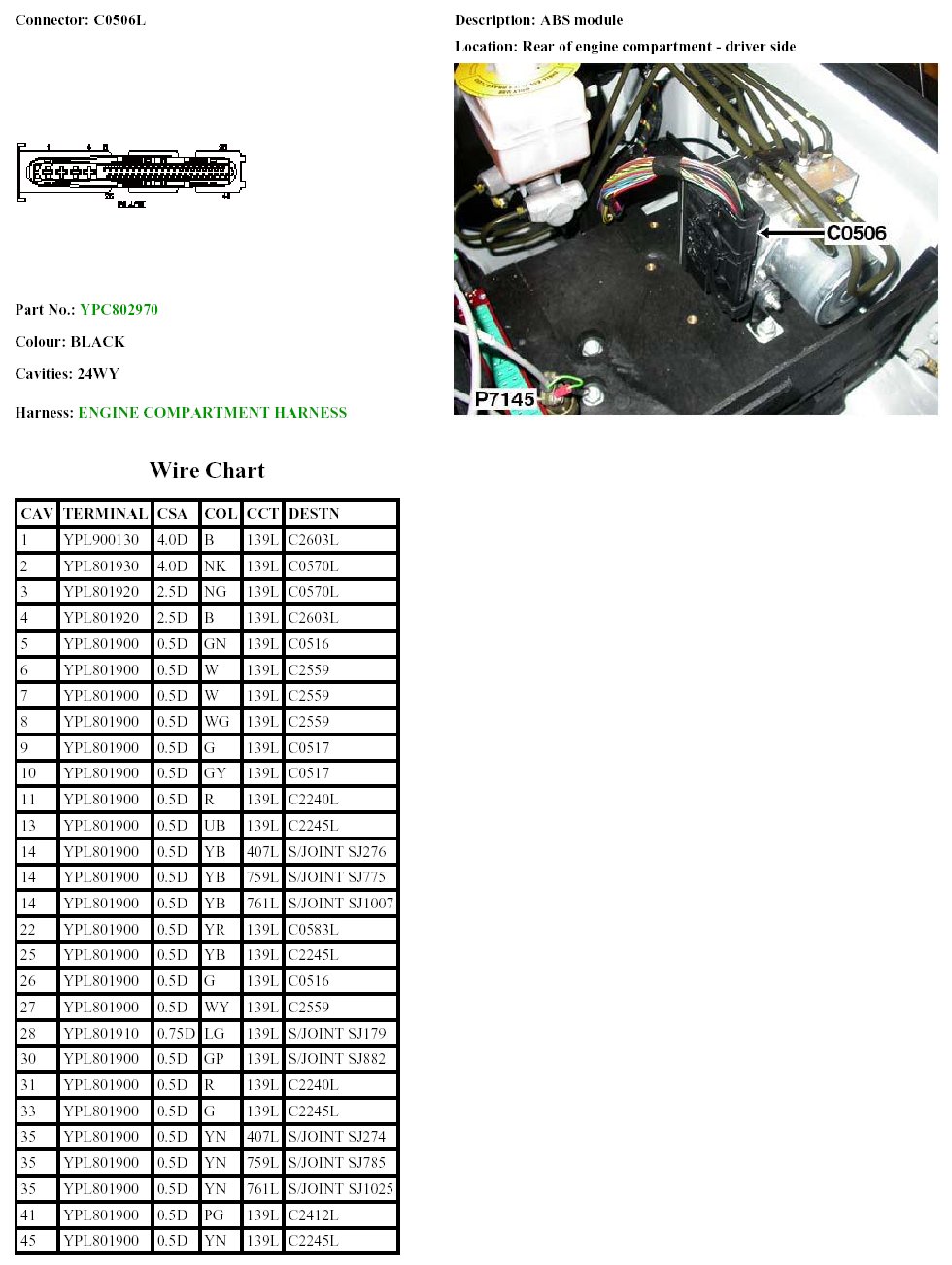

C0506L:

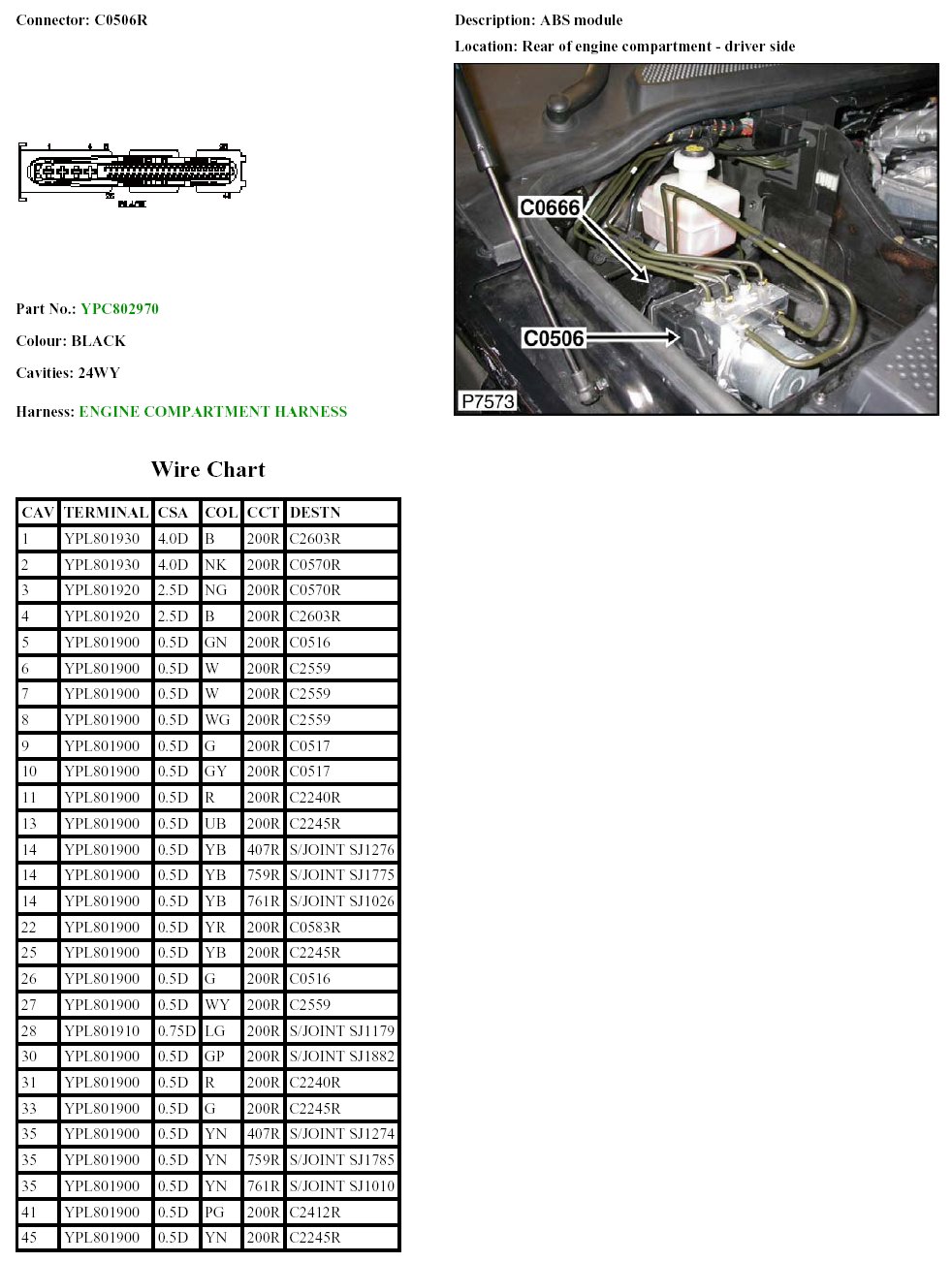

C0506R:
