Home >> Kia >> 2011 >> Rondo (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Electronic Brake Control Module

Electronic Brake Control Module

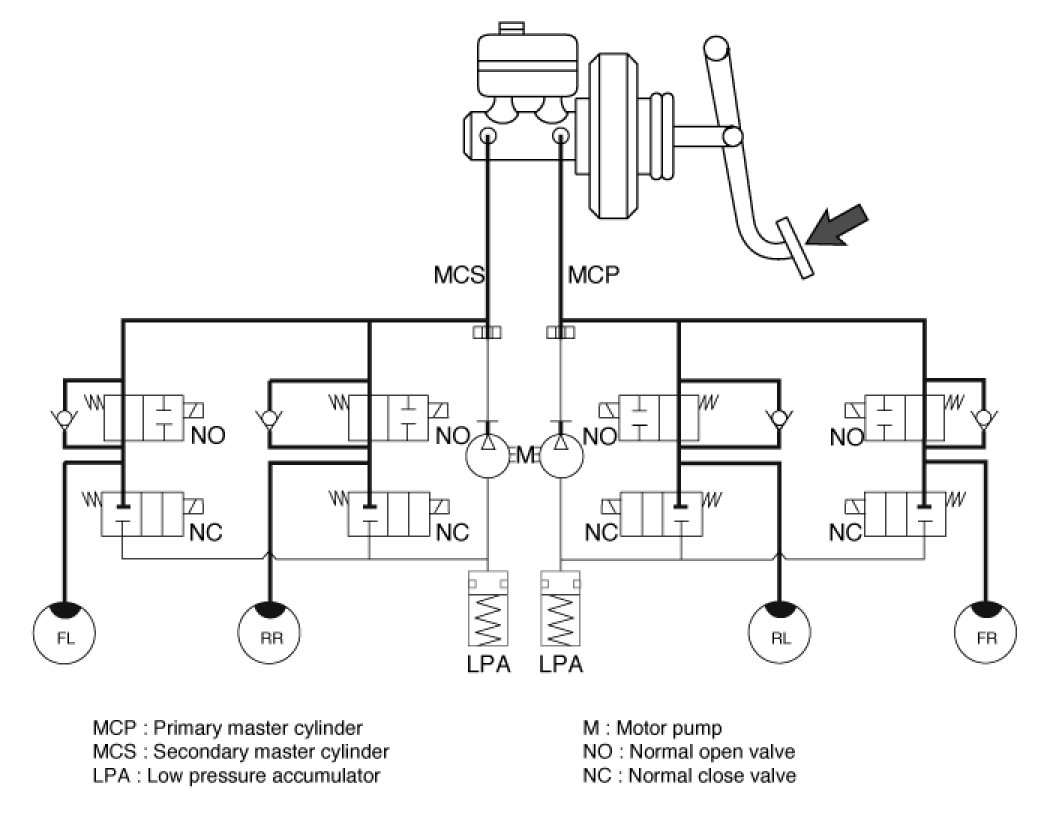

HYDRAULIC SYSTEM DIAGRAM
