Home >> Kia >> 2010 >> Rondo L4-2.4L >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Electronic Brake Control Module

Electronic Brake Control Module

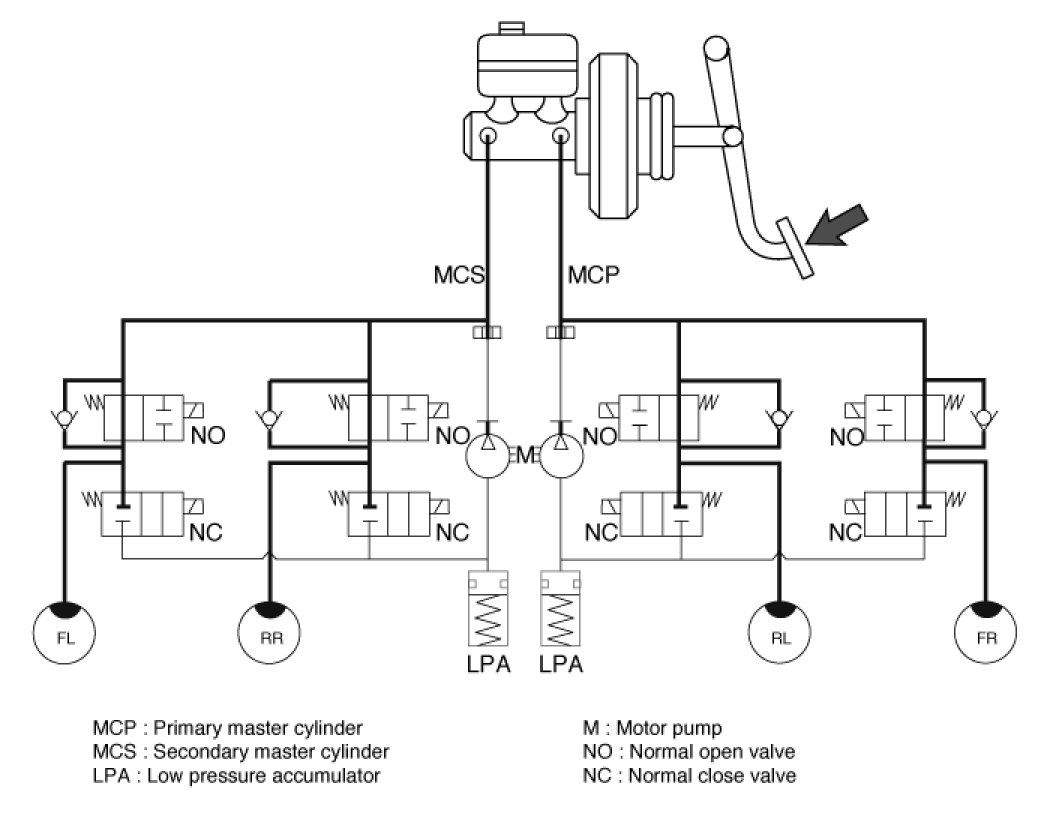

HYDRAULIC SYSTEM DIAGRAM
