Engine Control Module





ECM Terminal And Input / Output signal

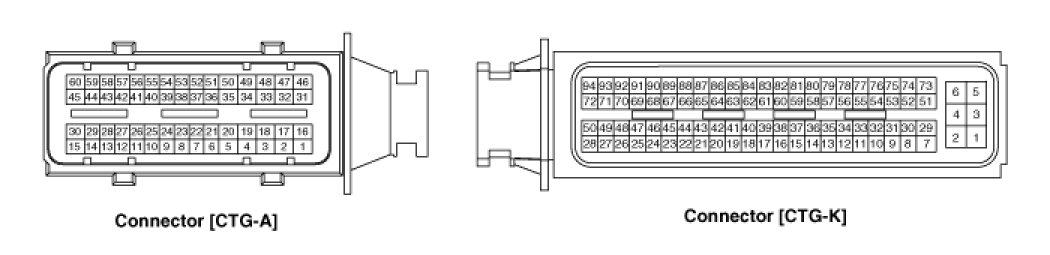

ECM Harness Connector




ECM Terminal Function

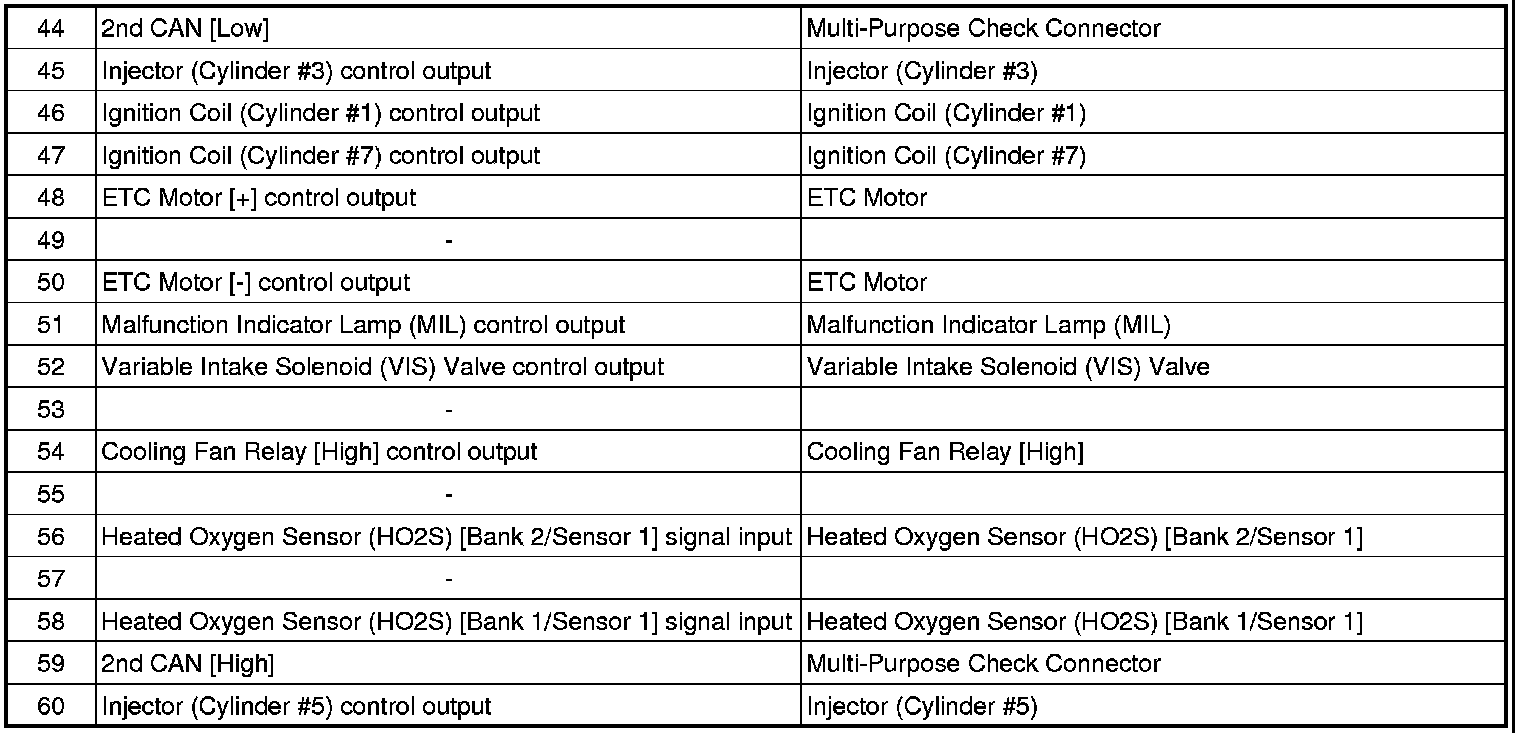

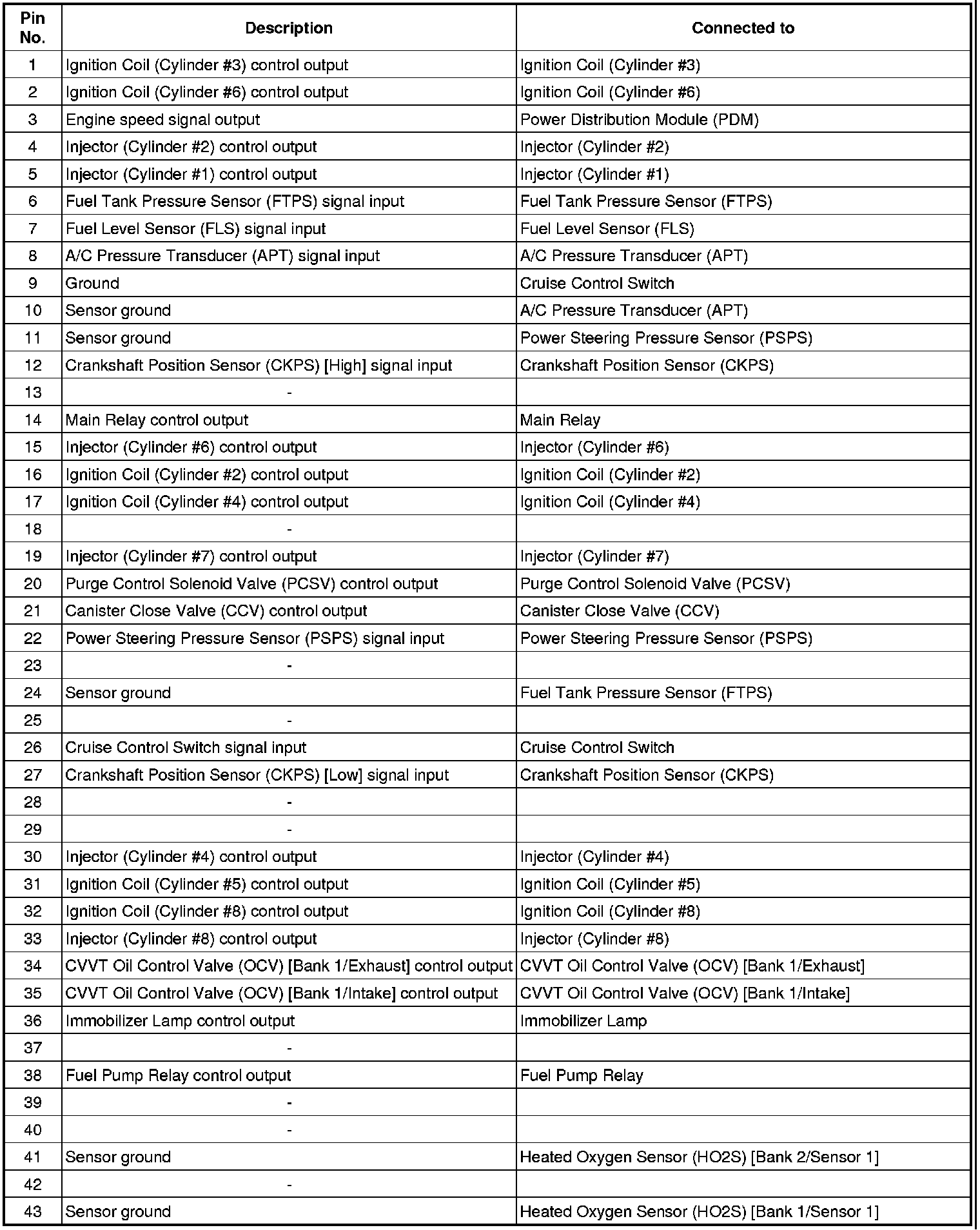

Connector [ CTG-A ]

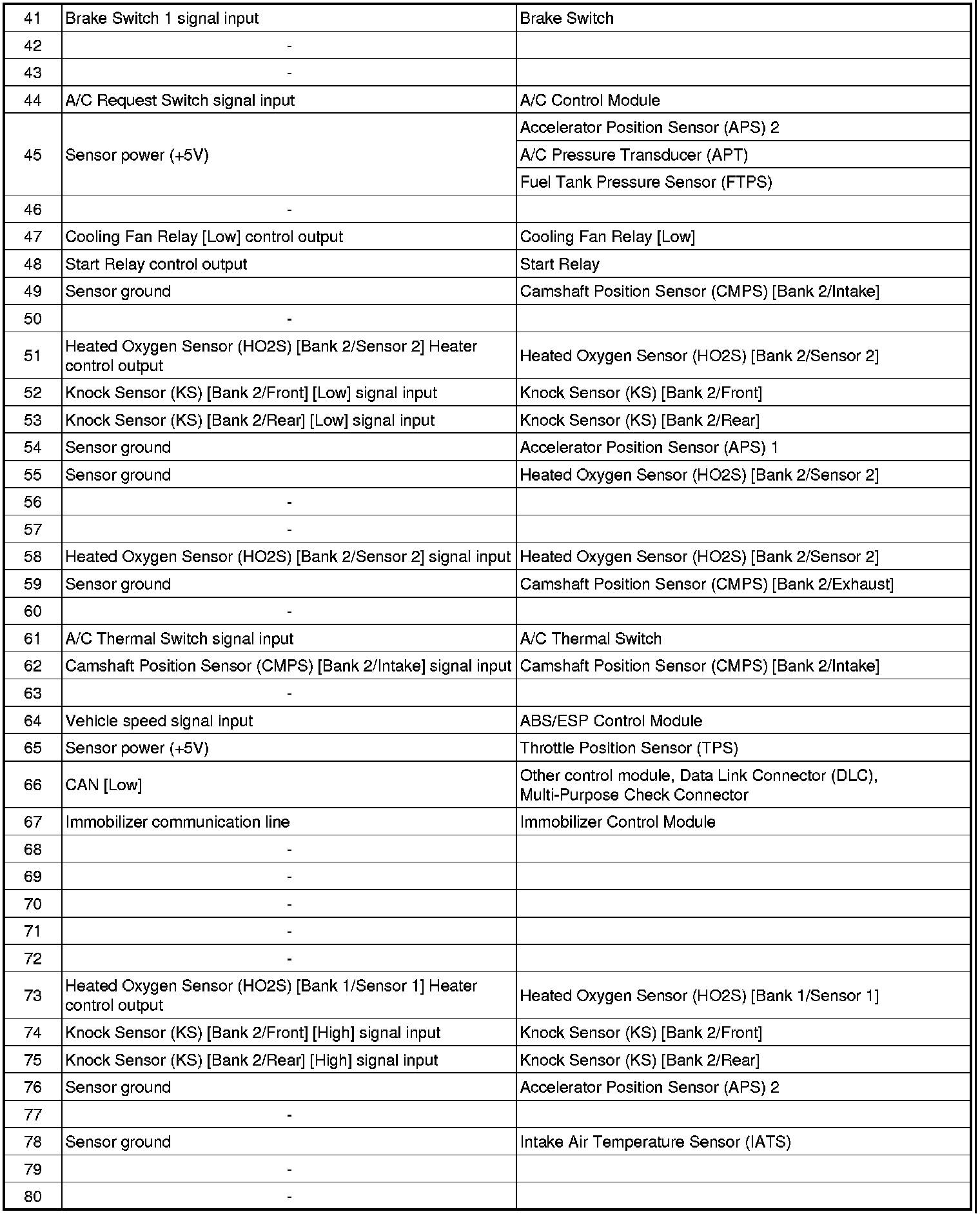

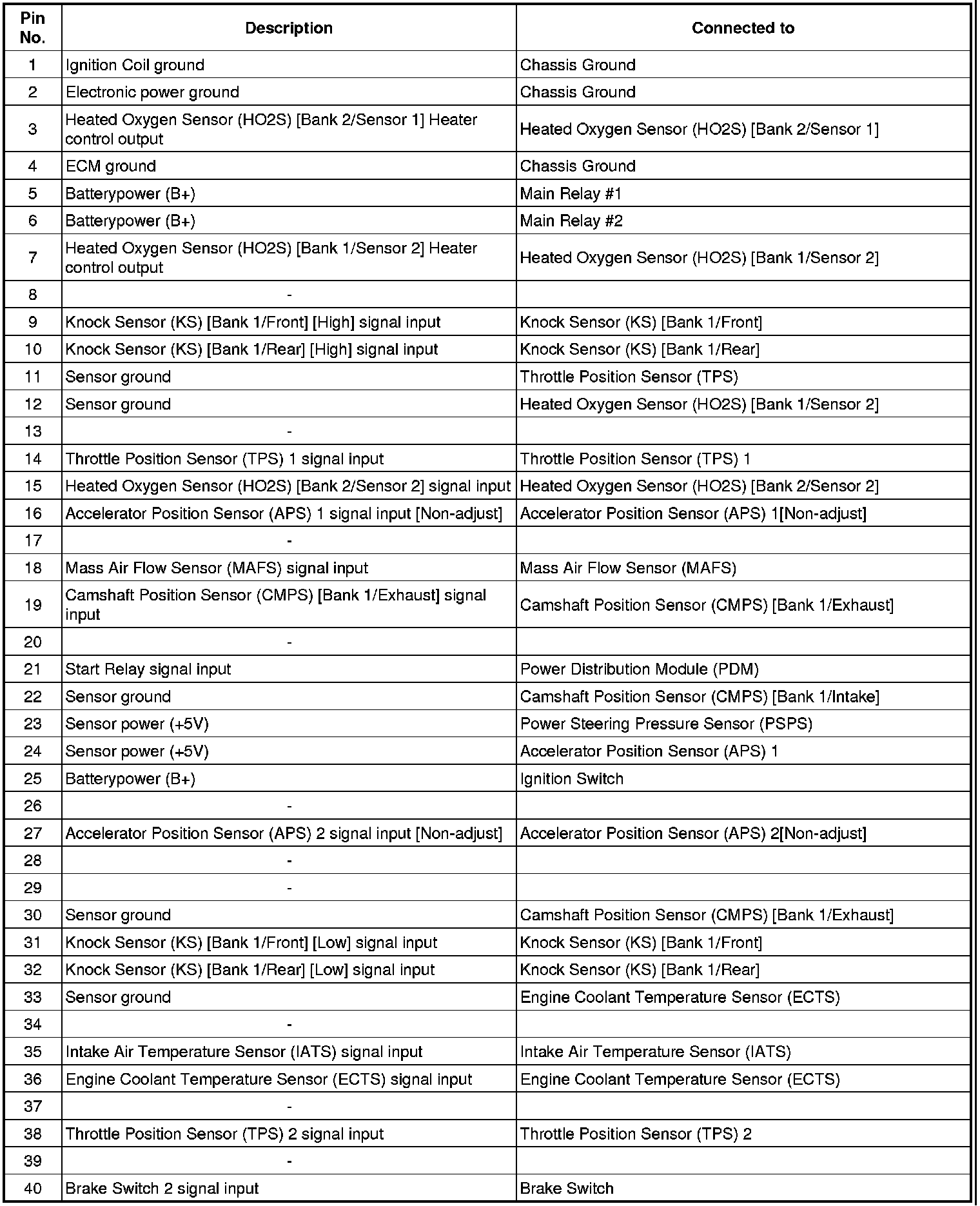

Connector [ CTG-K ]

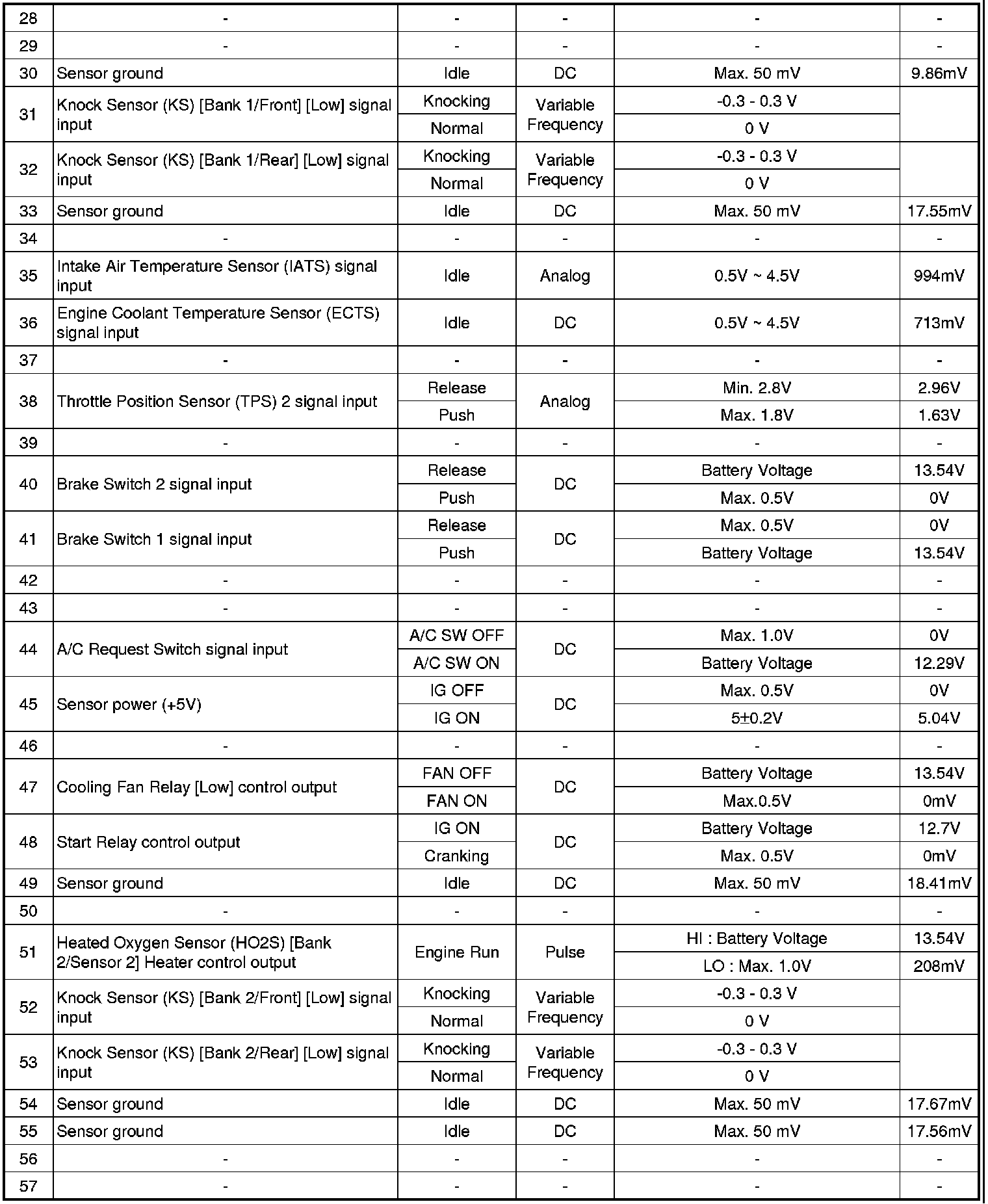

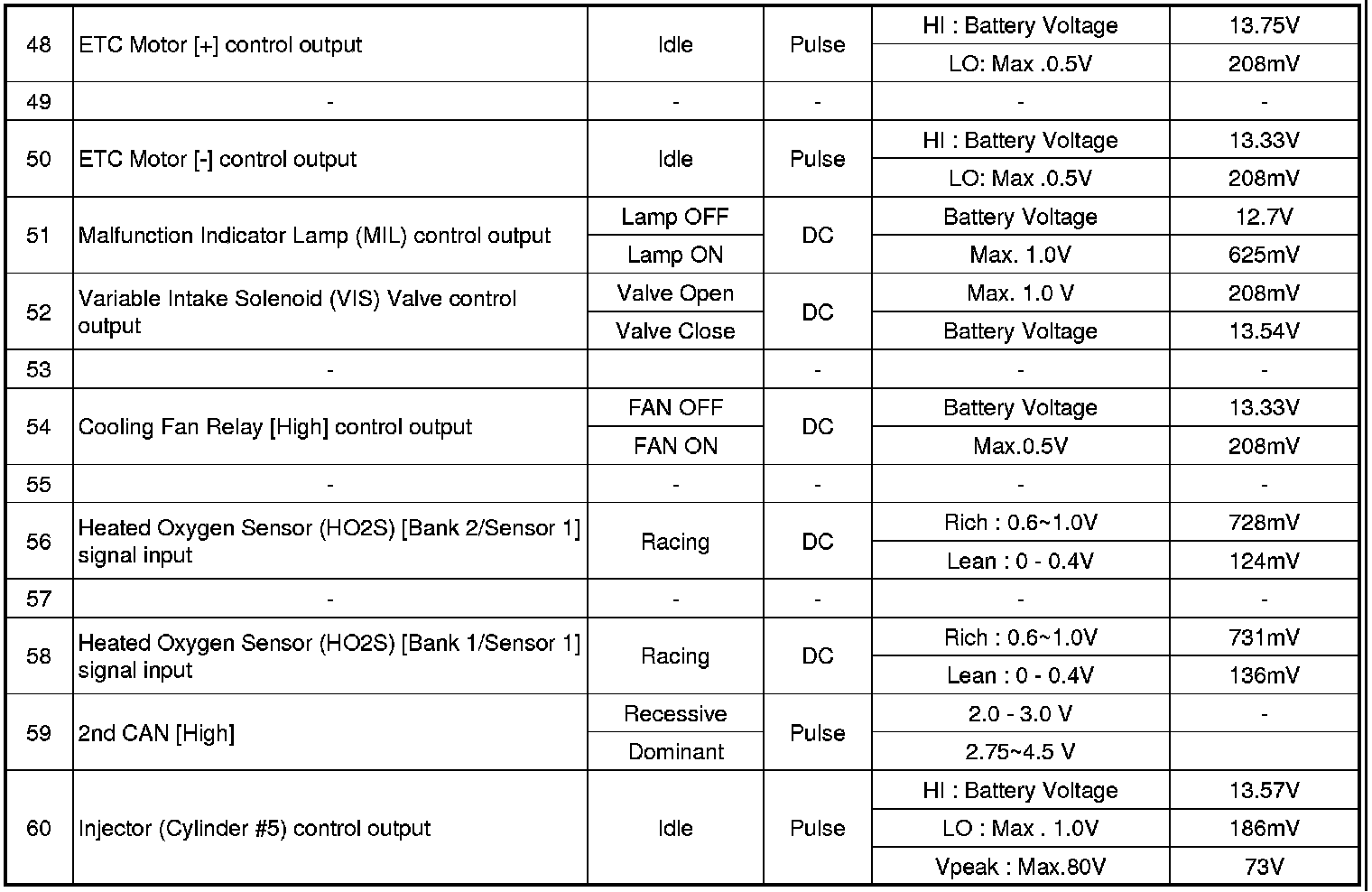

ECM Terminal Input/ Output signal

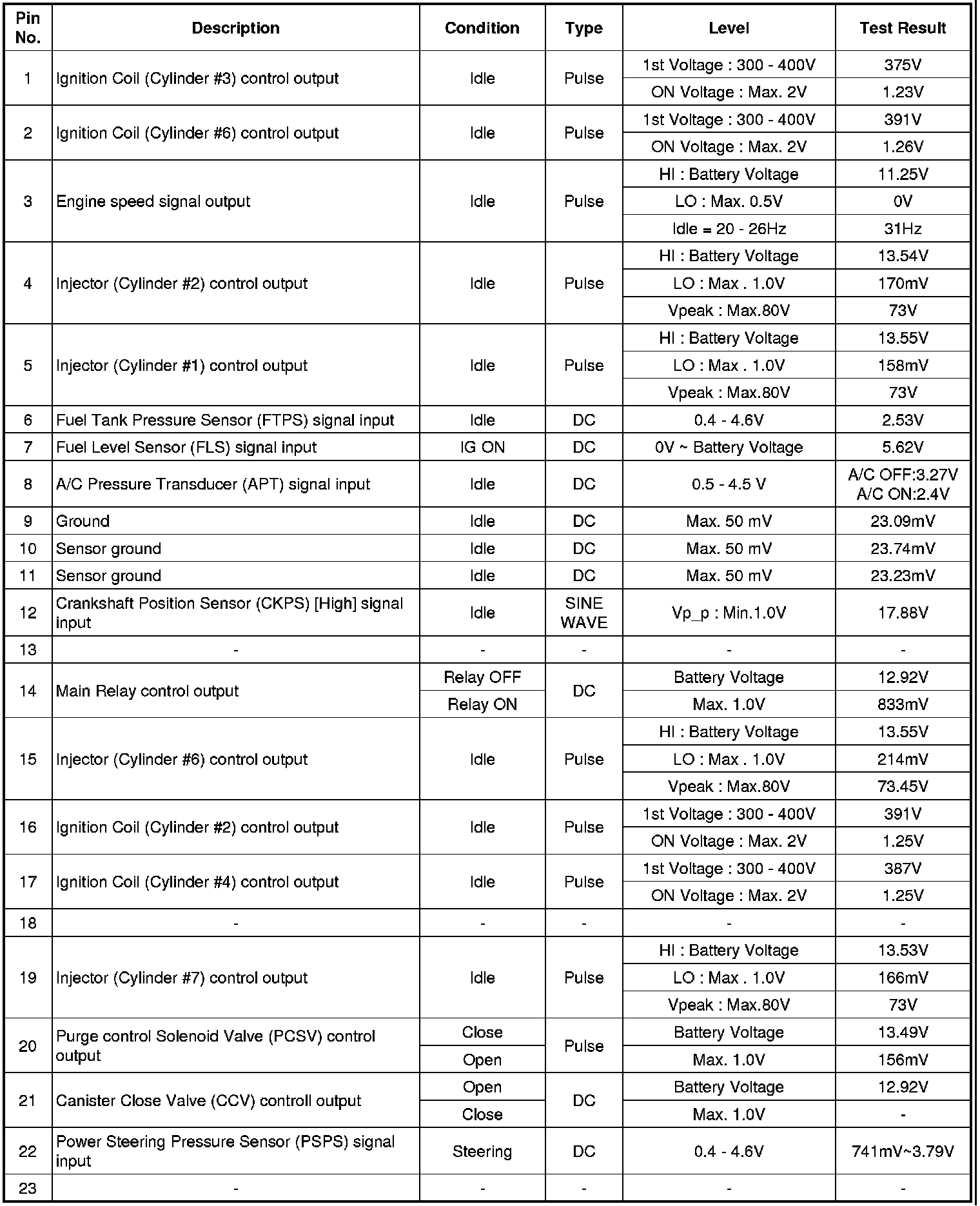

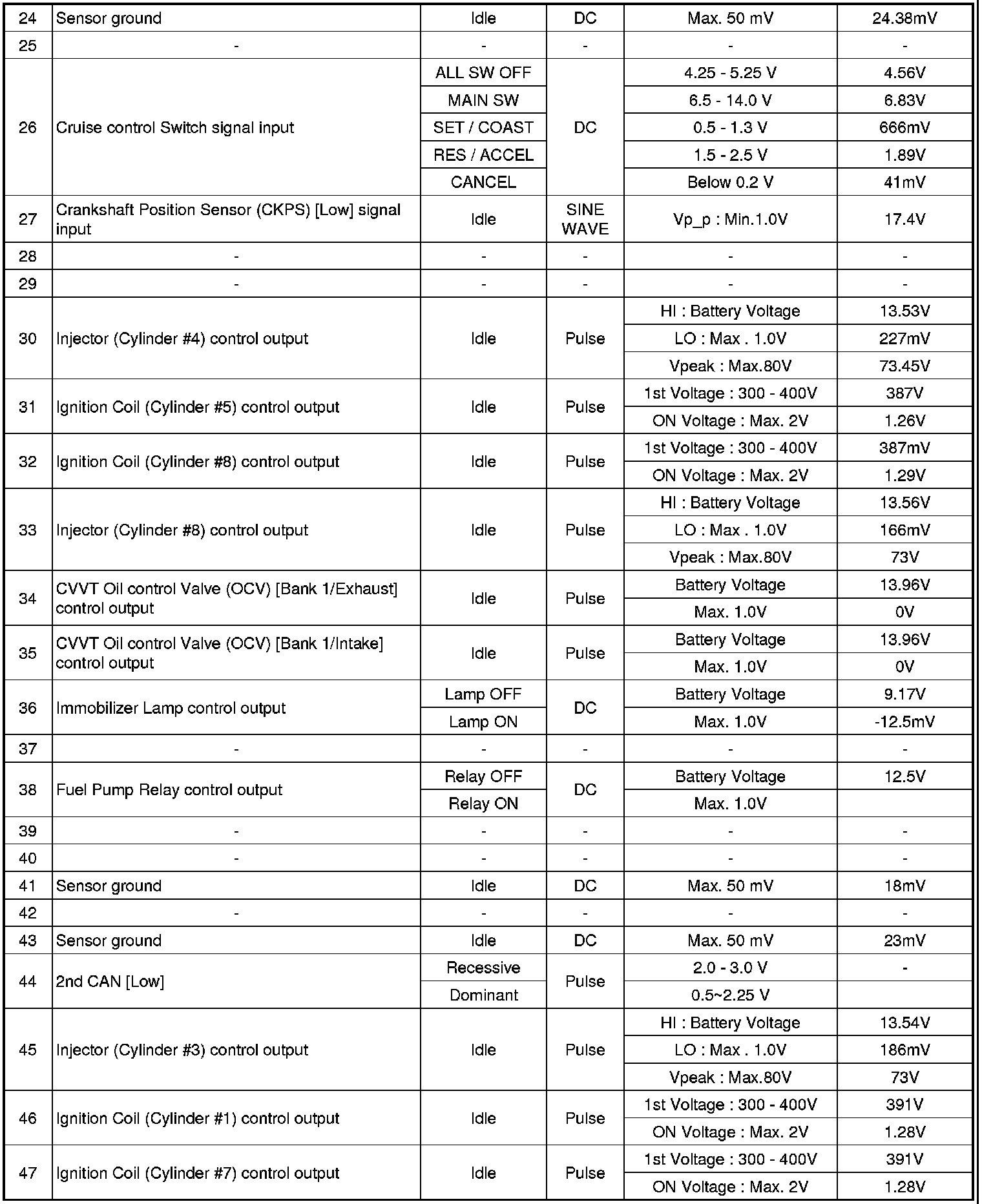

Connector [ CTG-A ]

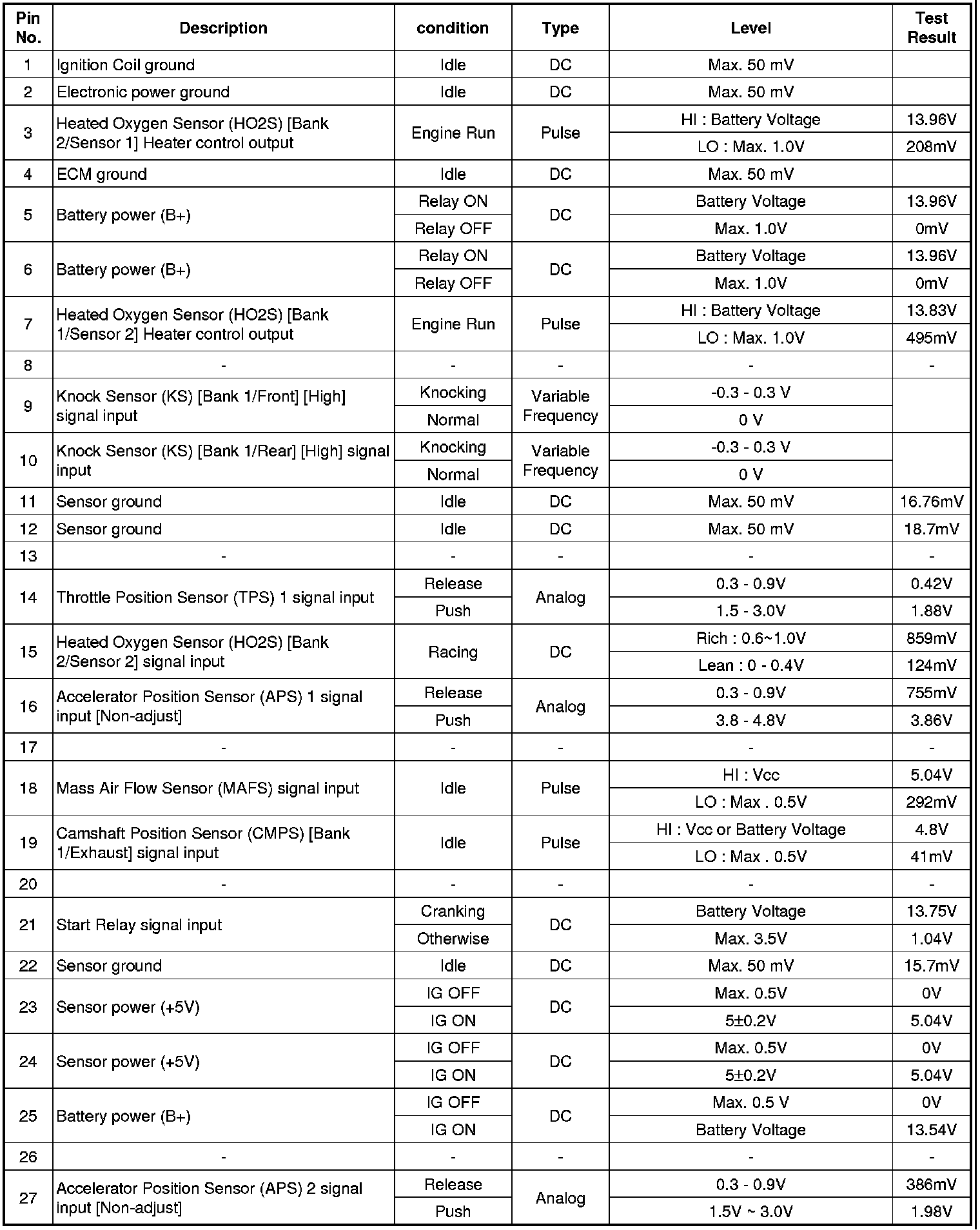

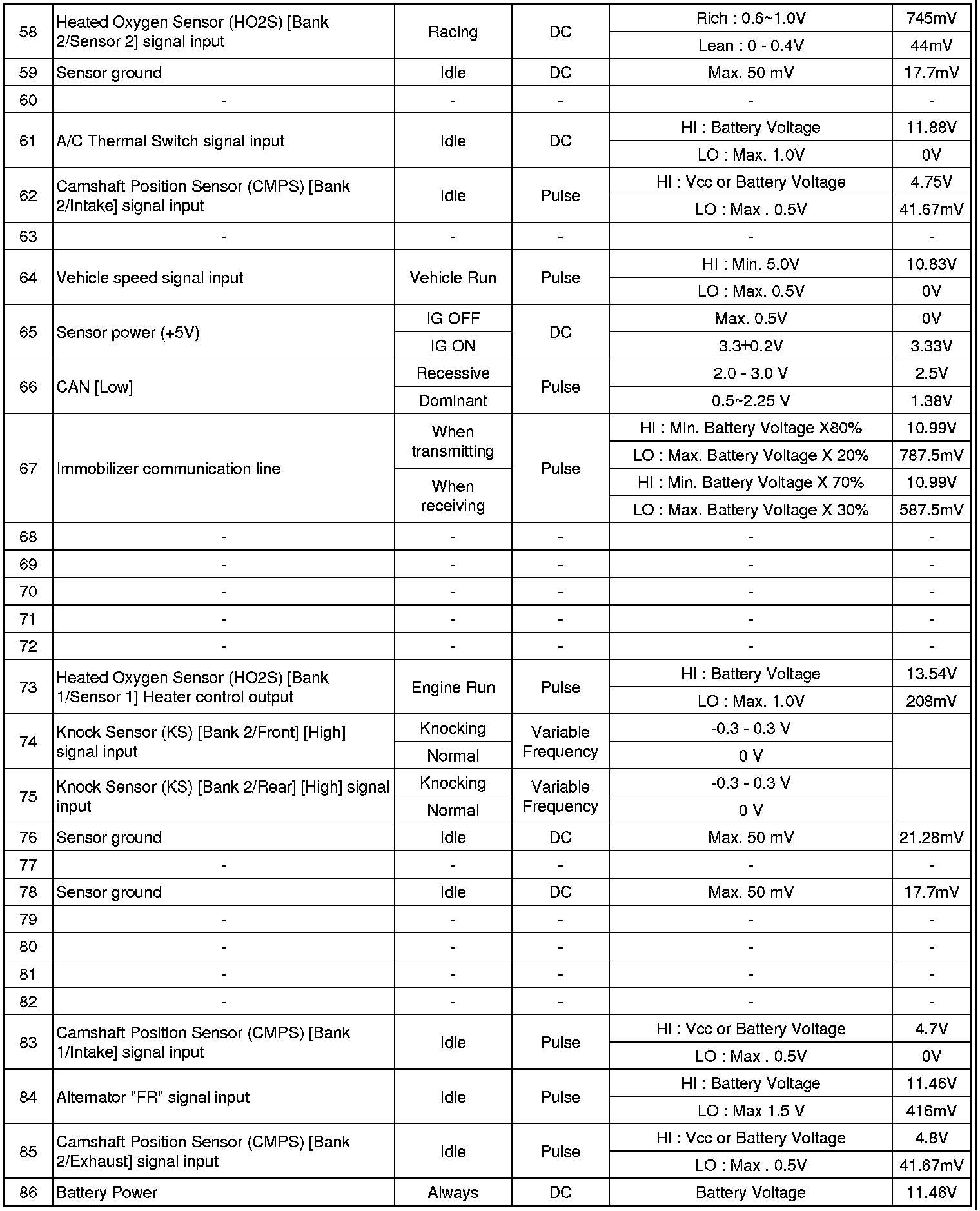

Connector [ CTG-K ]
