Schematic Diagram

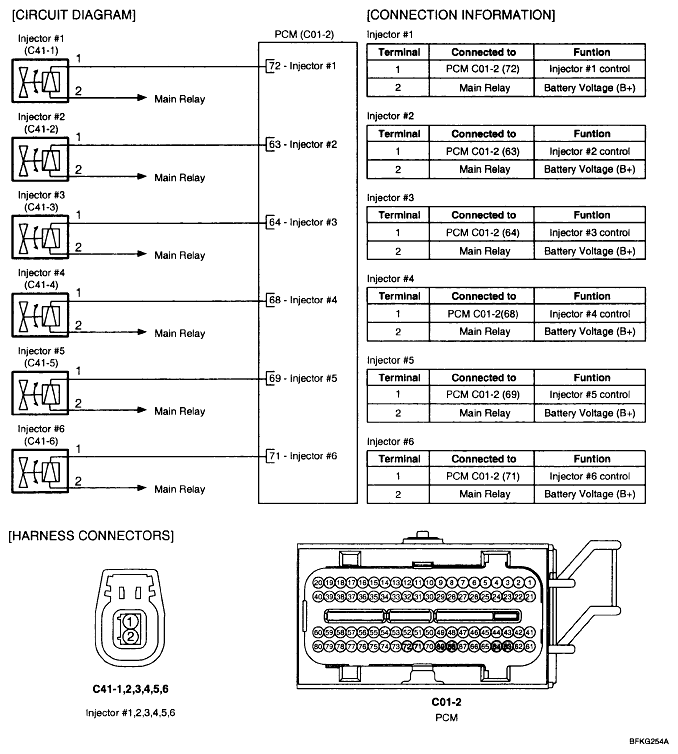

Fig 1: Injector Schematic Diagram

G04883215

Courtesy of KIA MOTORS AMERICA, INC.
