System Specifications

PUMP SPECIFICATIONS





SPECIFICATIONS

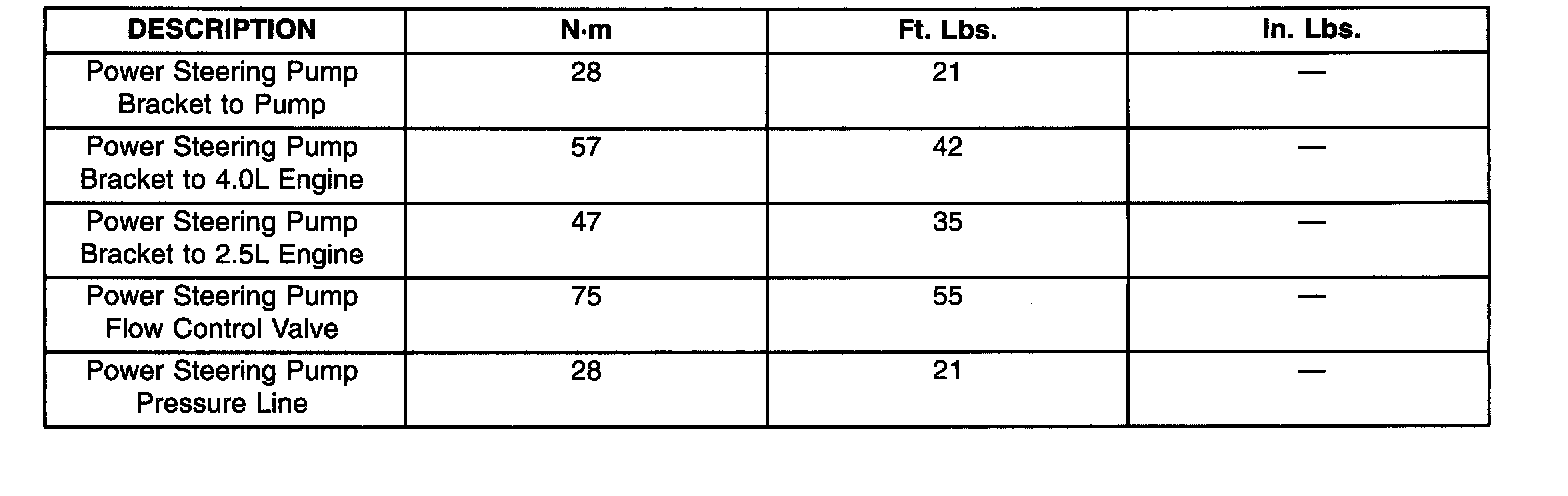

TORQUE CHART

SPECIFICATIONS





POWER STEERING GEAR

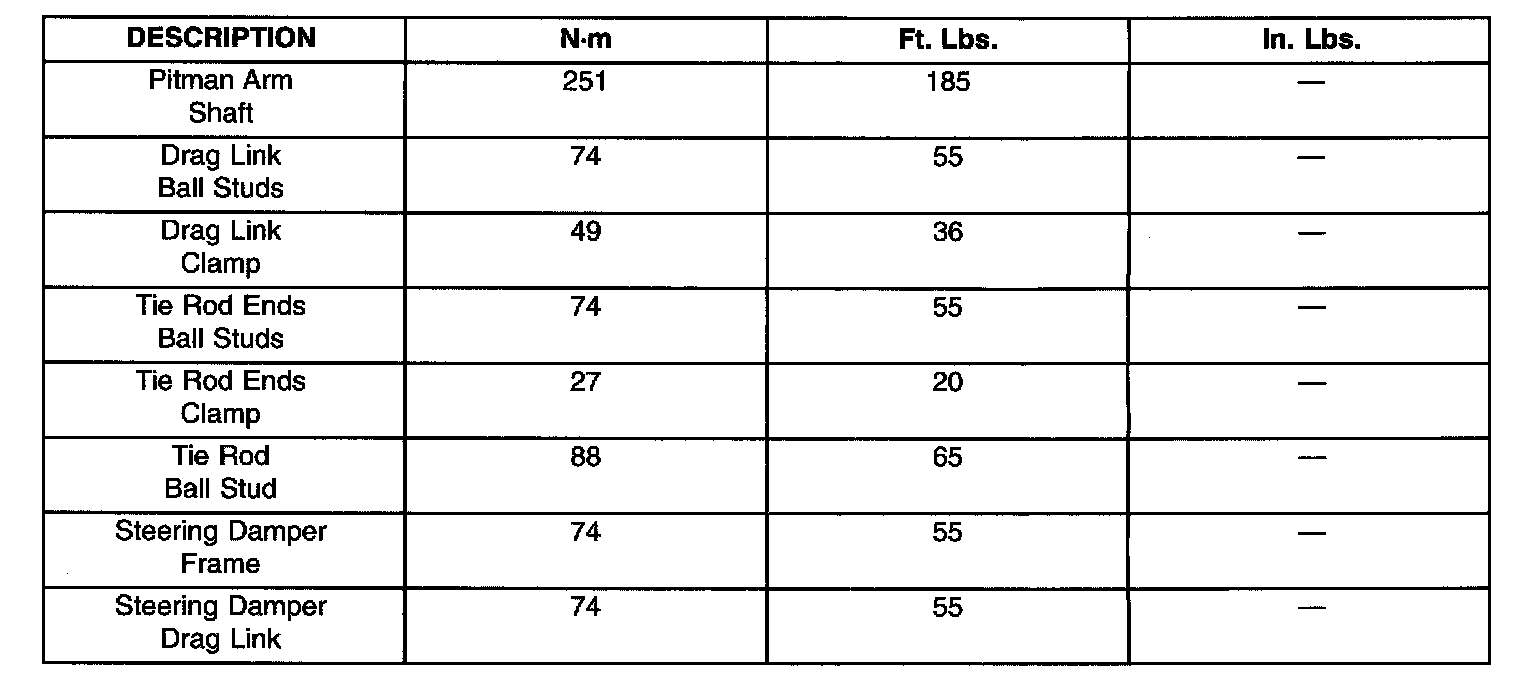

TORQUE CHART





TORQUE SPECIFICATIONS

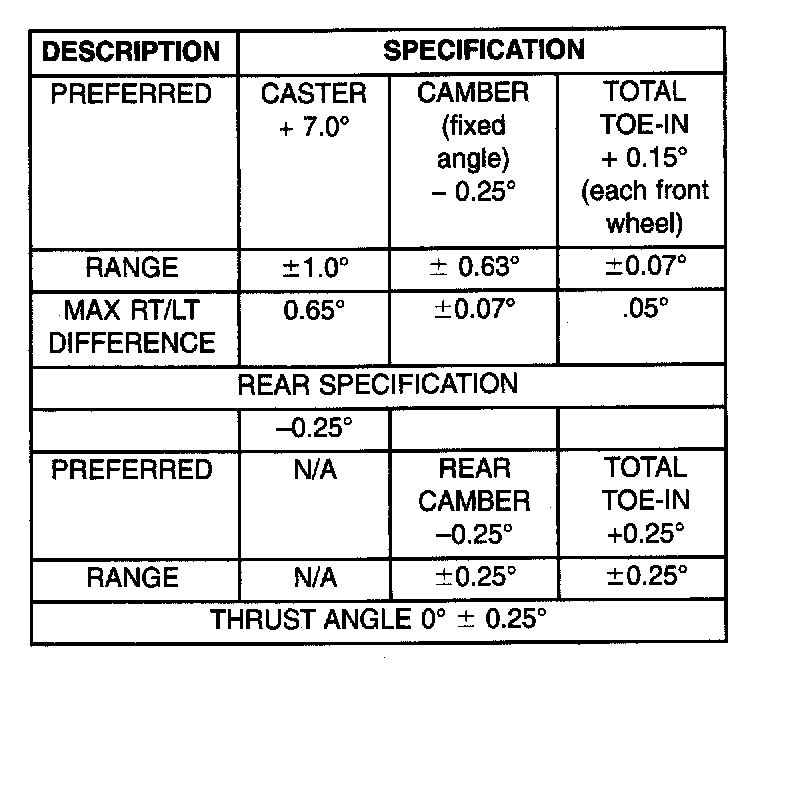

SPECIFICATIONS





TORQUE CHART

SPECIFICATIONS

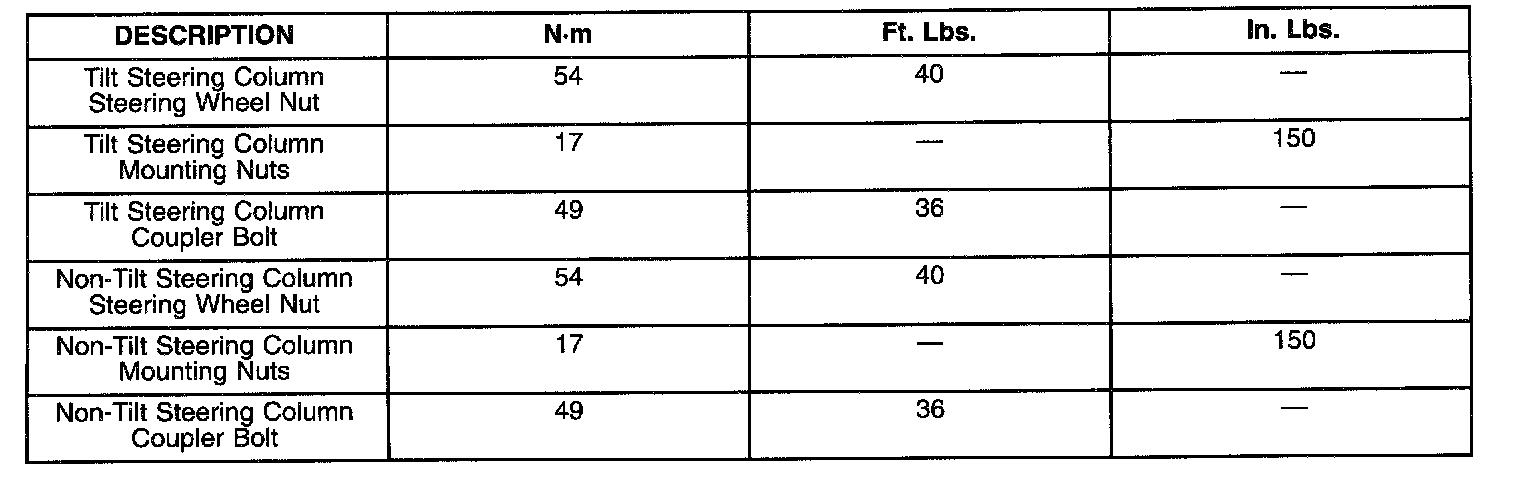

TORQUE CHART

SPECIFICATIONS
