Electrical Circuit Inspection Procedure: Notes

• Continuity Check
• Voltage Check

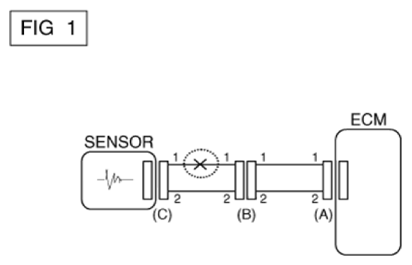

  If an open circuit occurs (as seen in [FIG. 1]), it can be found by performing Step 2 (Continuity Check Method) or Step  3 (Voltage Check Method) as shown below.

Courtesy of HYUNDAI MOTOR AMERICA

Specification (Resistance)

1Ω or less → Normal Circuit

1MΩ or Higher → Open Circuit

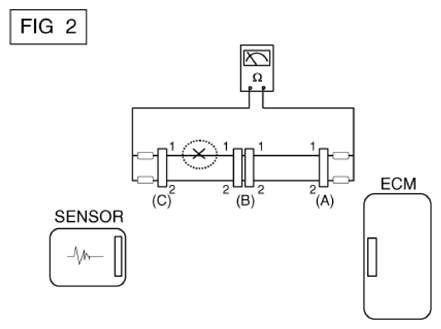

1. Disconnect connectors (A) and (C), and measure resistance between connectors (A) and (C) as shown in [FIG. 2].

   In [FIG. 2], if the measured resistances in lines 1 and 2 are "over 1 MΩ" and "below 1Ω" respectively, line 1 has an open circuit.

   (Line 2 is normal.) To find the exact broken point, check the sub line of line 1 as described in the next step.

   Courtesy of HYUNDAI MOTOR AMERICA

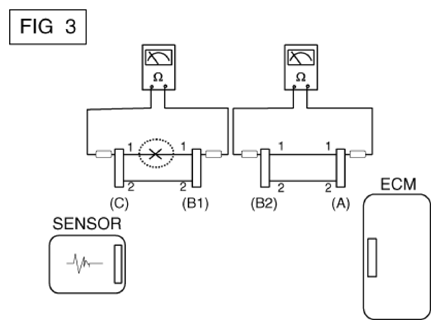

2. Disconnect connector (B), and measure the resistances between connectors (C) and (B1), and between (B2) and (A) as shown in [FIG. 3].

   In this case, the measured resistance between connectors (C) and (B1) is higher than 1 MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

Courtesy of HYUNDAI MOTOR AMERICA

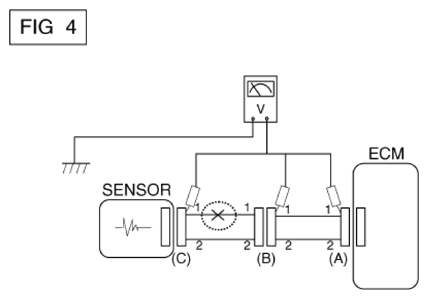

1. With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each of connectors (A), (B) and (C) as shown in [FIG. 4].

   The measured voltages of connectors are 5V, 5V and 0V respectively. So the open circuit is between connectors (C) and (B).
