Transmission Position Sensor/Switch, A/T

Specifications

- Type: Combination of output signals from 4 terminals

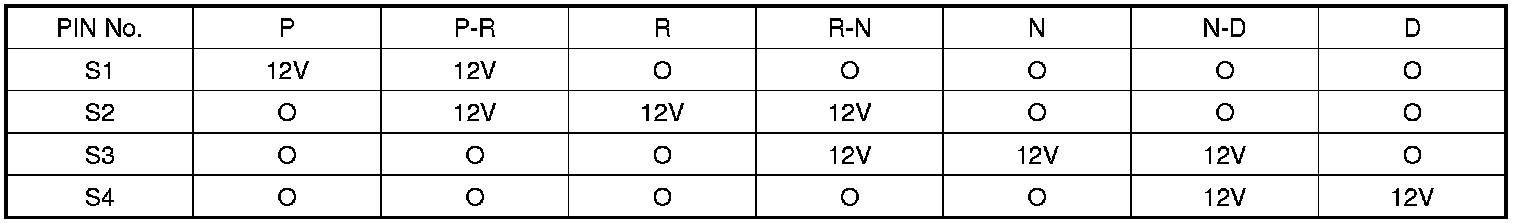

Signal Code Table
