Home >> Hyundai >> 2011 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

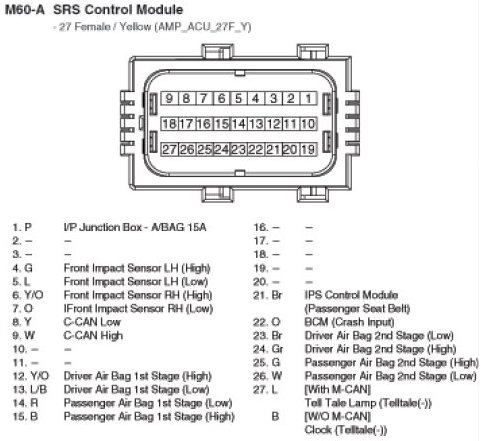

M60-A SRS Control Module:

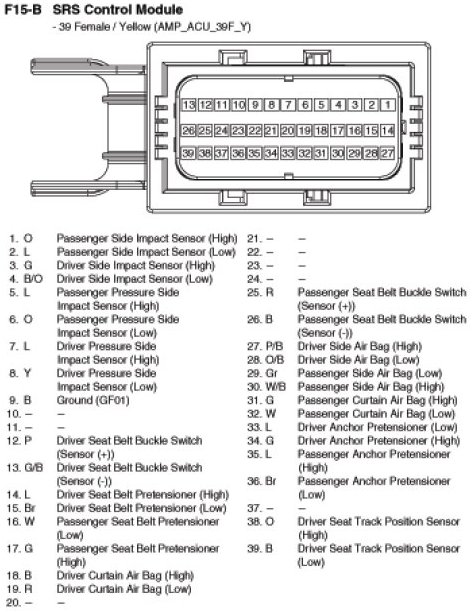

F15-B SRS Control Module:
