Home >> Hyundai >> 2007 >> Santa Fe AWD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Rear Control Panel

Rear Control Panel

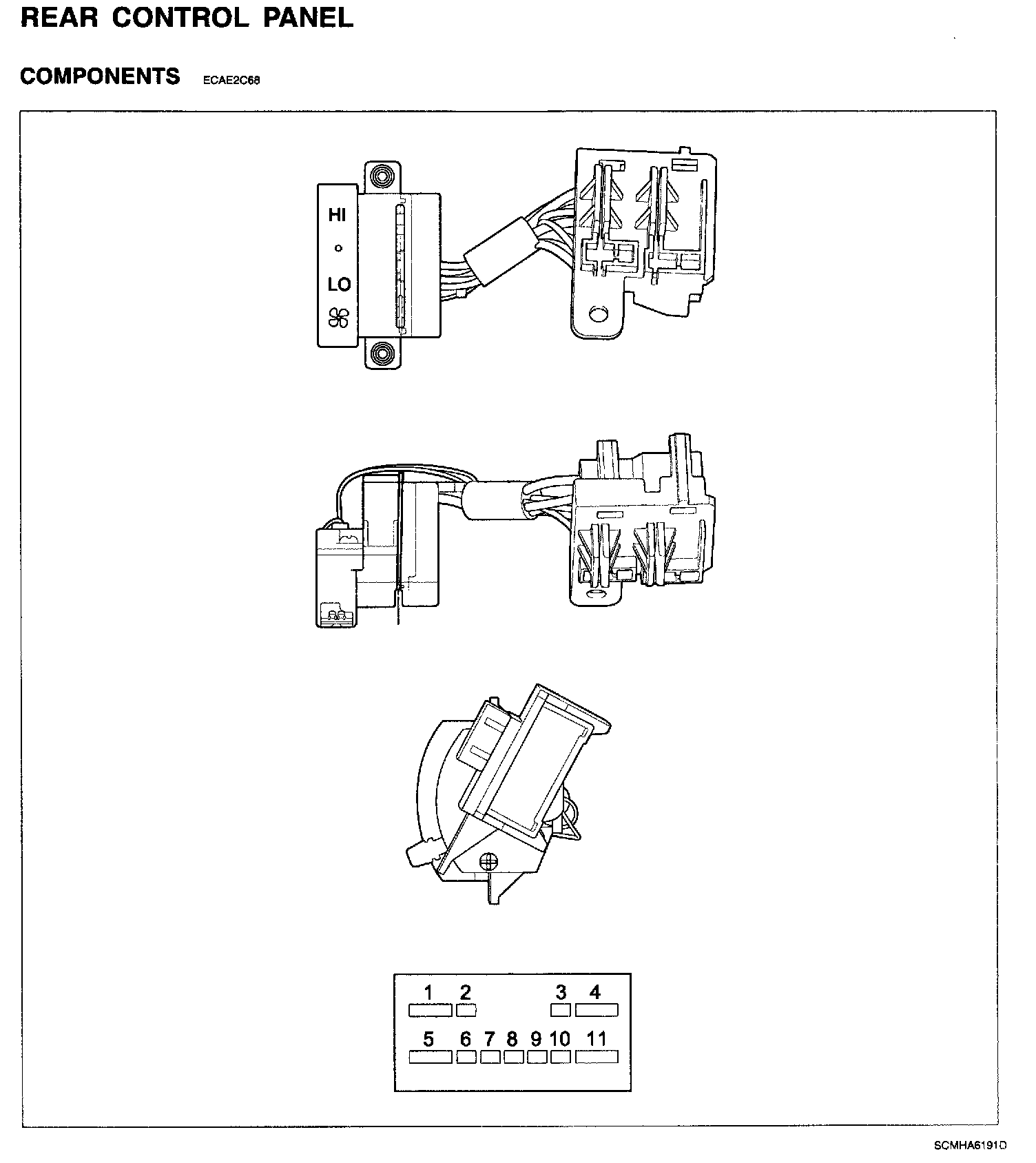

Rear Control Panel - Components:

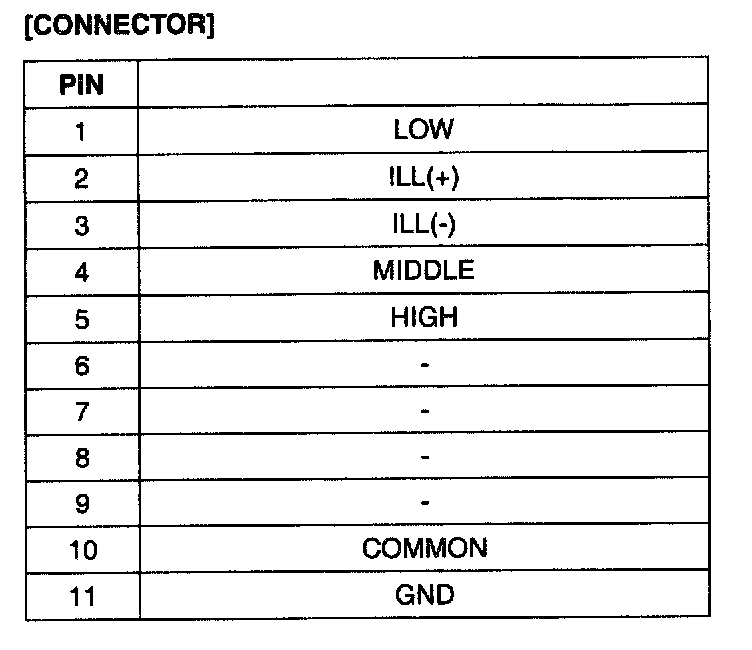

Connector:
