Automatic Transaxle Shift Control: Components

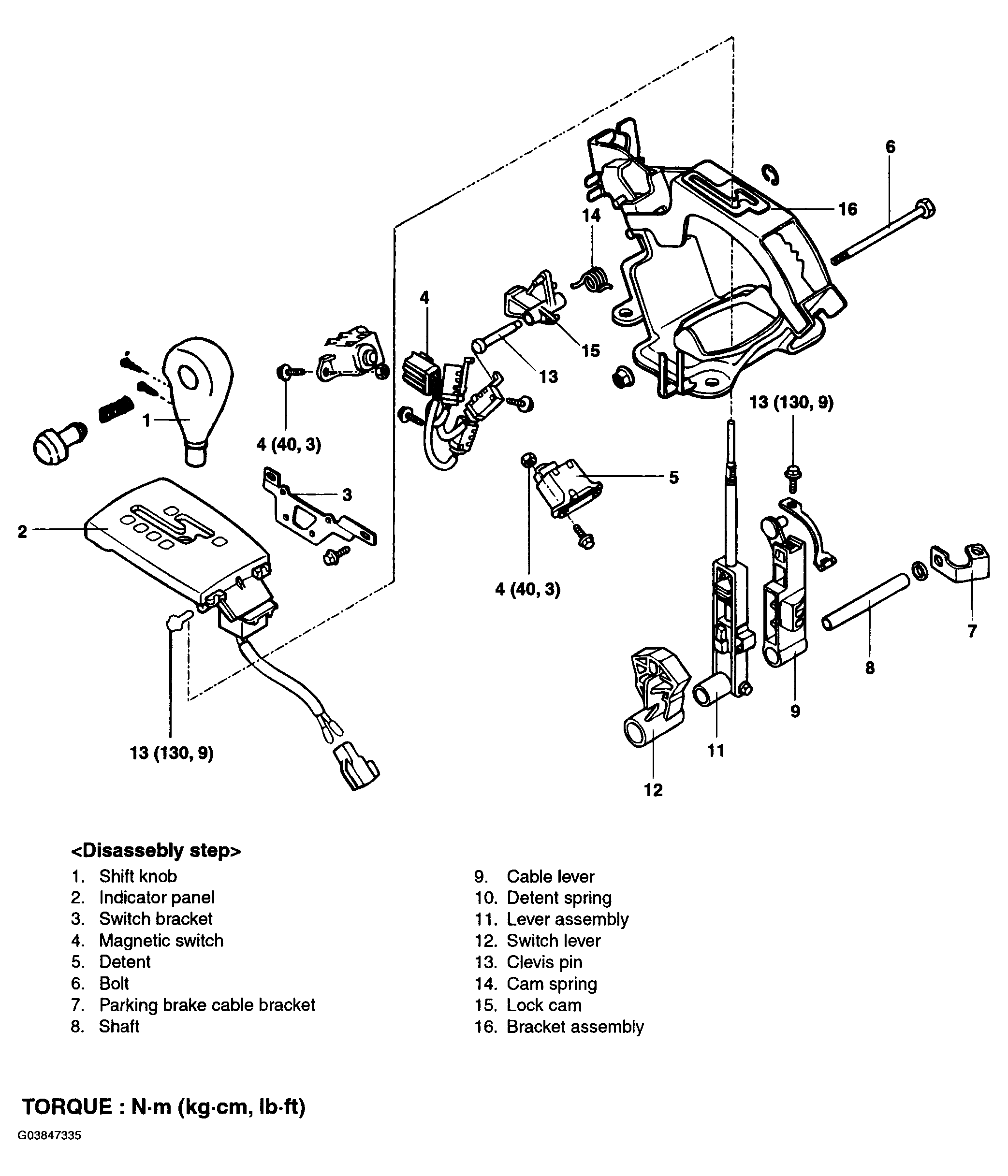

Fig 1: Automatic Transaxle Shift Control Replacement Components With Torque Specifications

G03847335

Courtesy of HYUNDAI MOTOR CO.
