Engine Control Module
>>
With TCU (Vehicle With Automatic Transaxle)
With TCU (Vehicle With Automatic Transaxle)

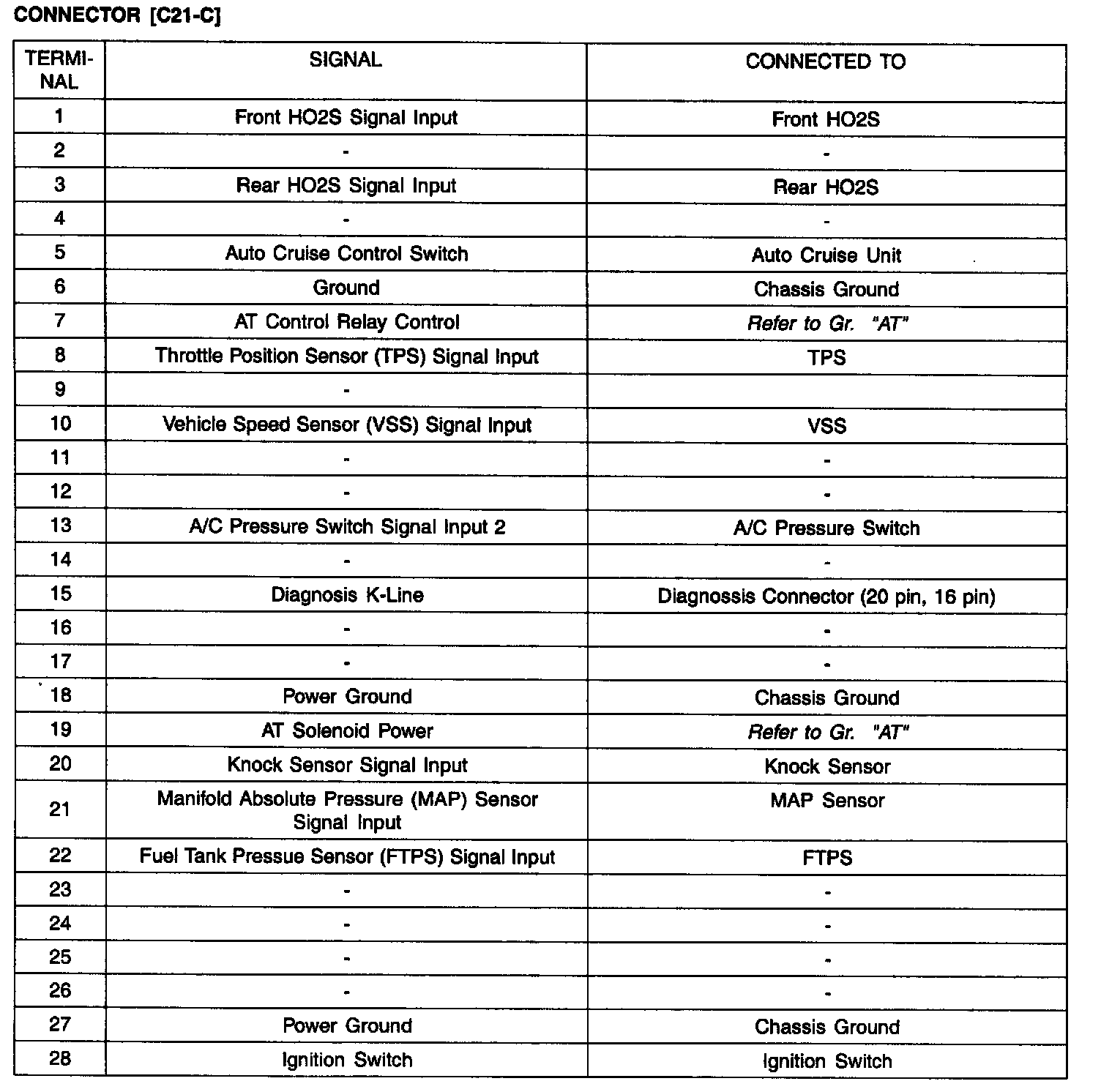

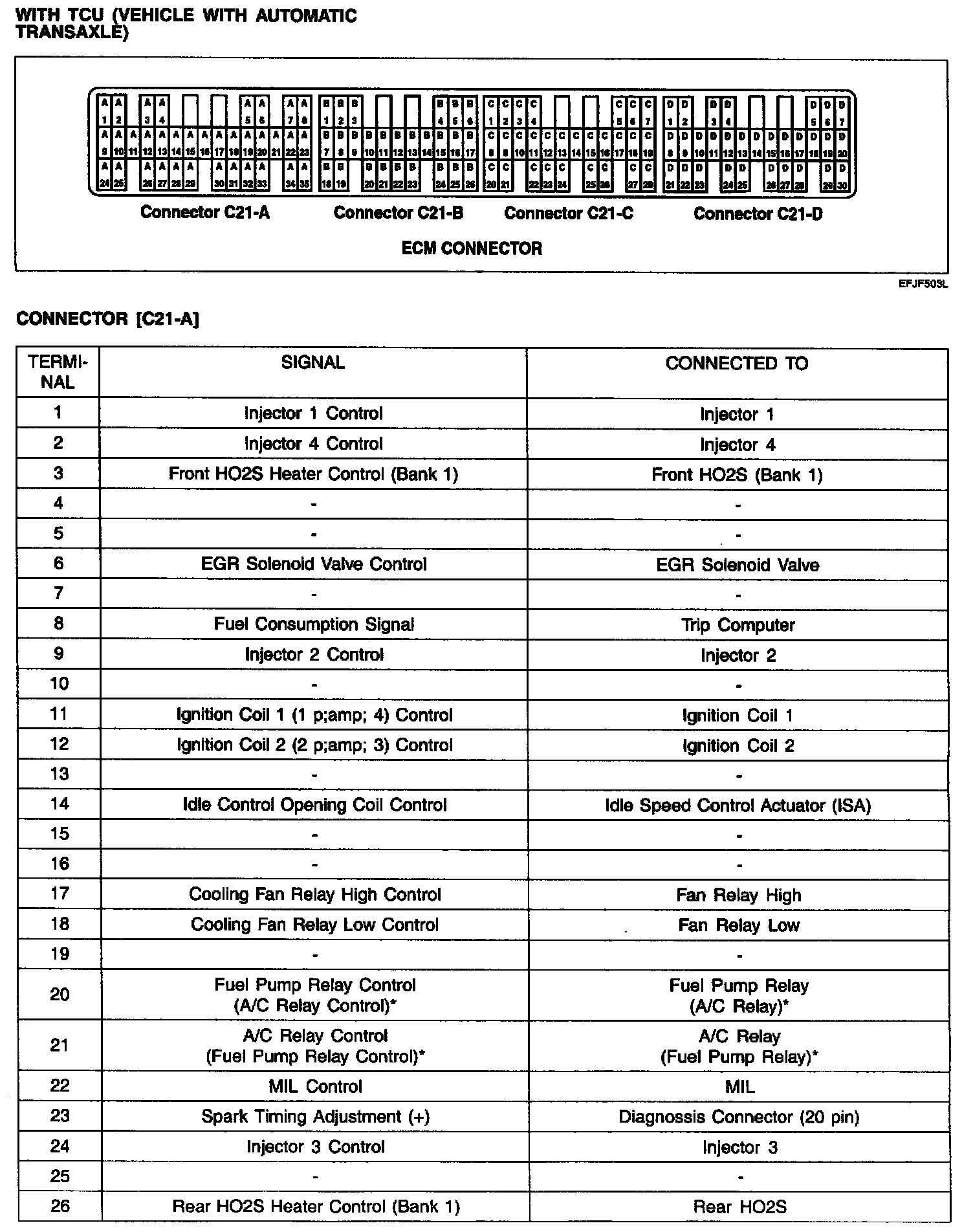

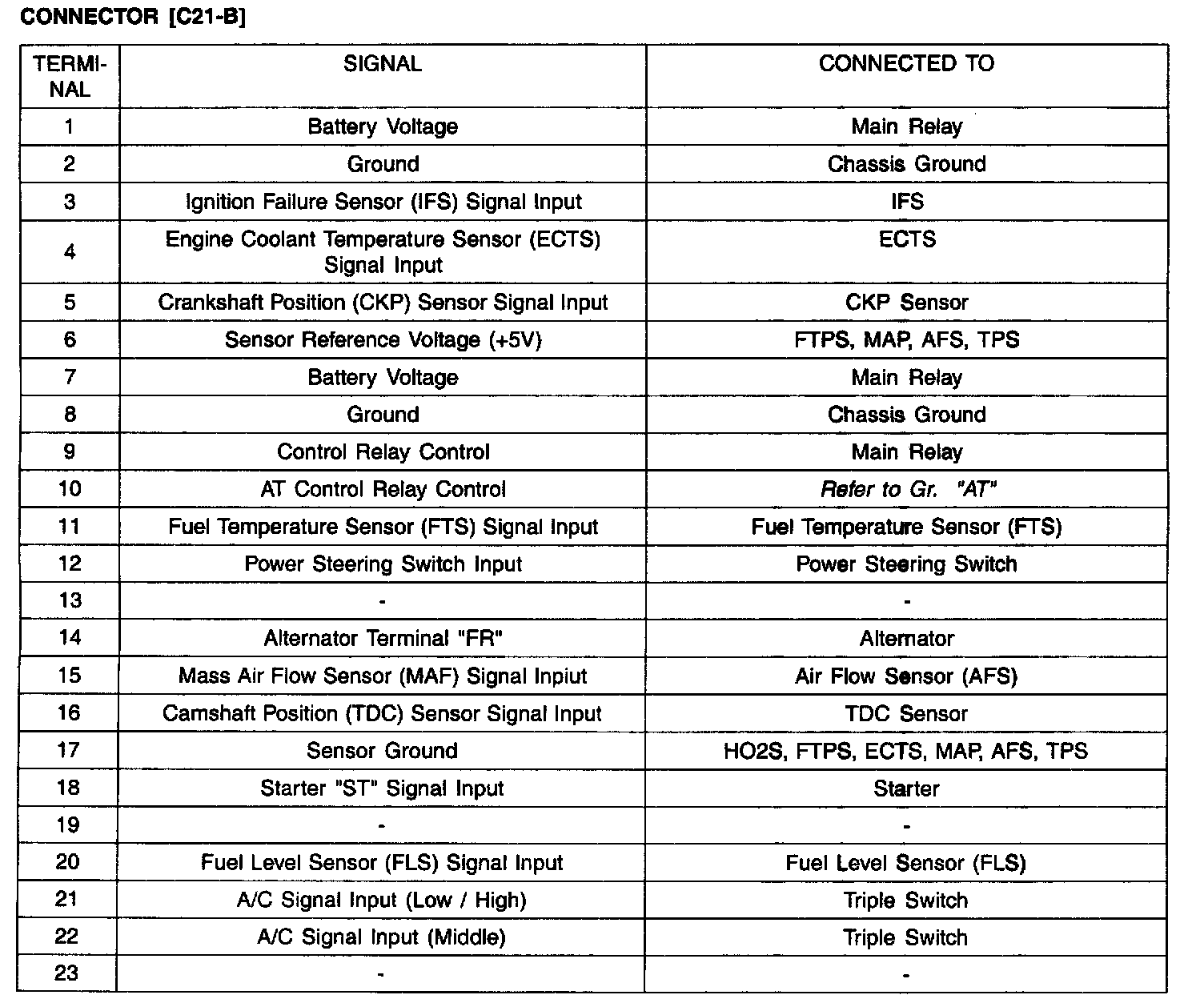

ECU Terminal Layout With TCU:
