Air Bag Control Module

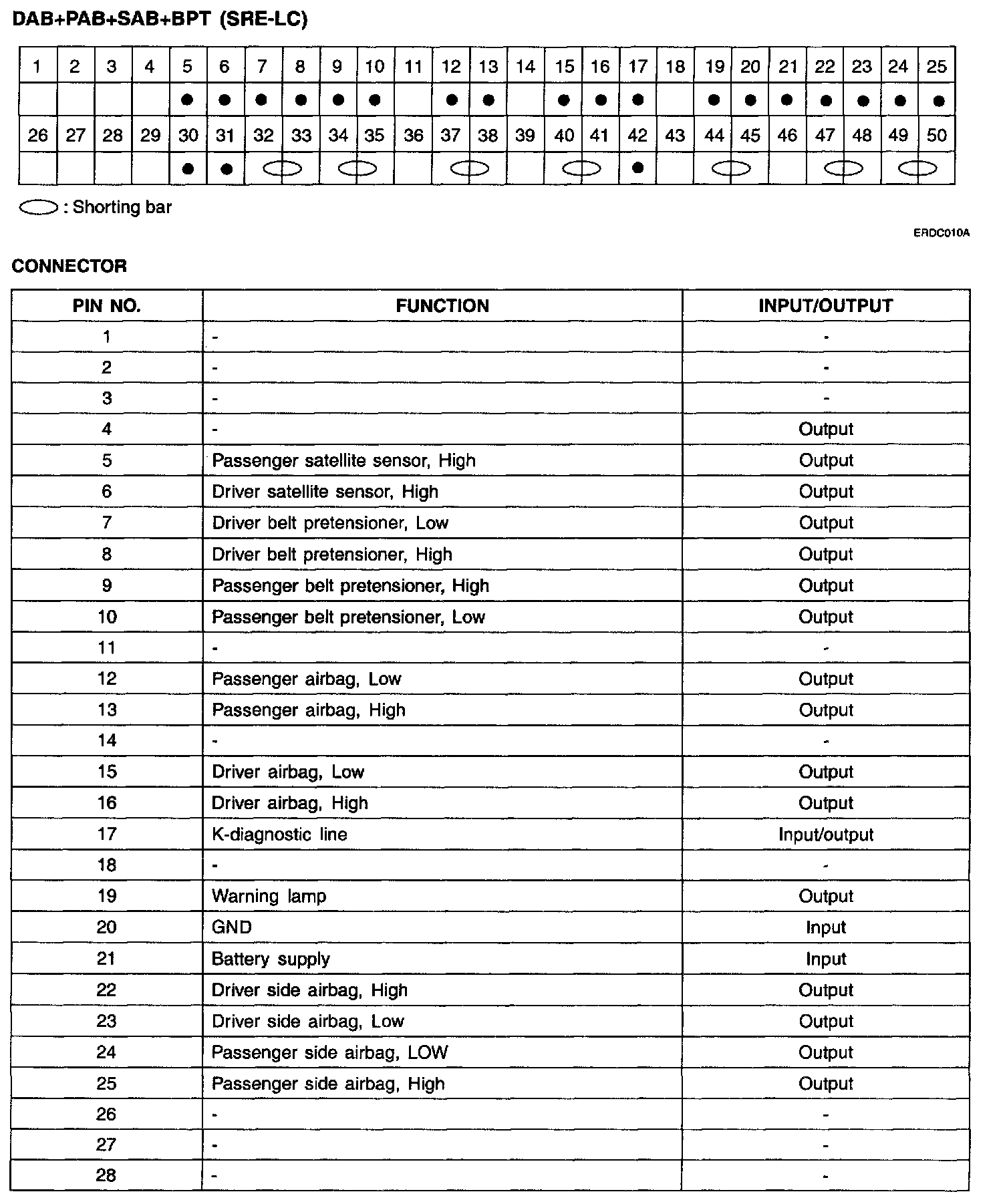

DAB+PAB+SAB+BPT(SRE-LC) Part 1:

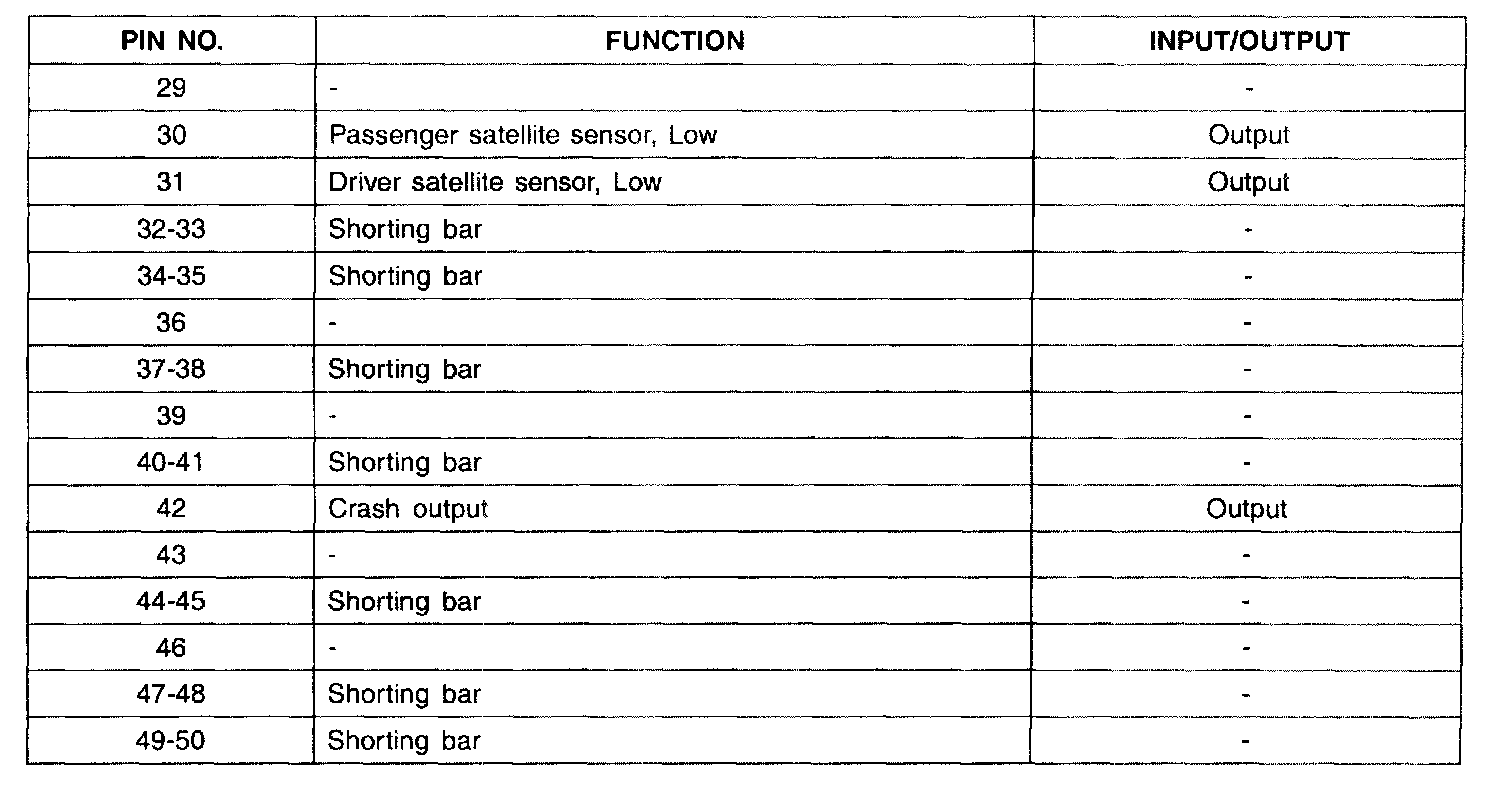

DAB+PAB+SAB+BPT(SRE-LC) Part 2:

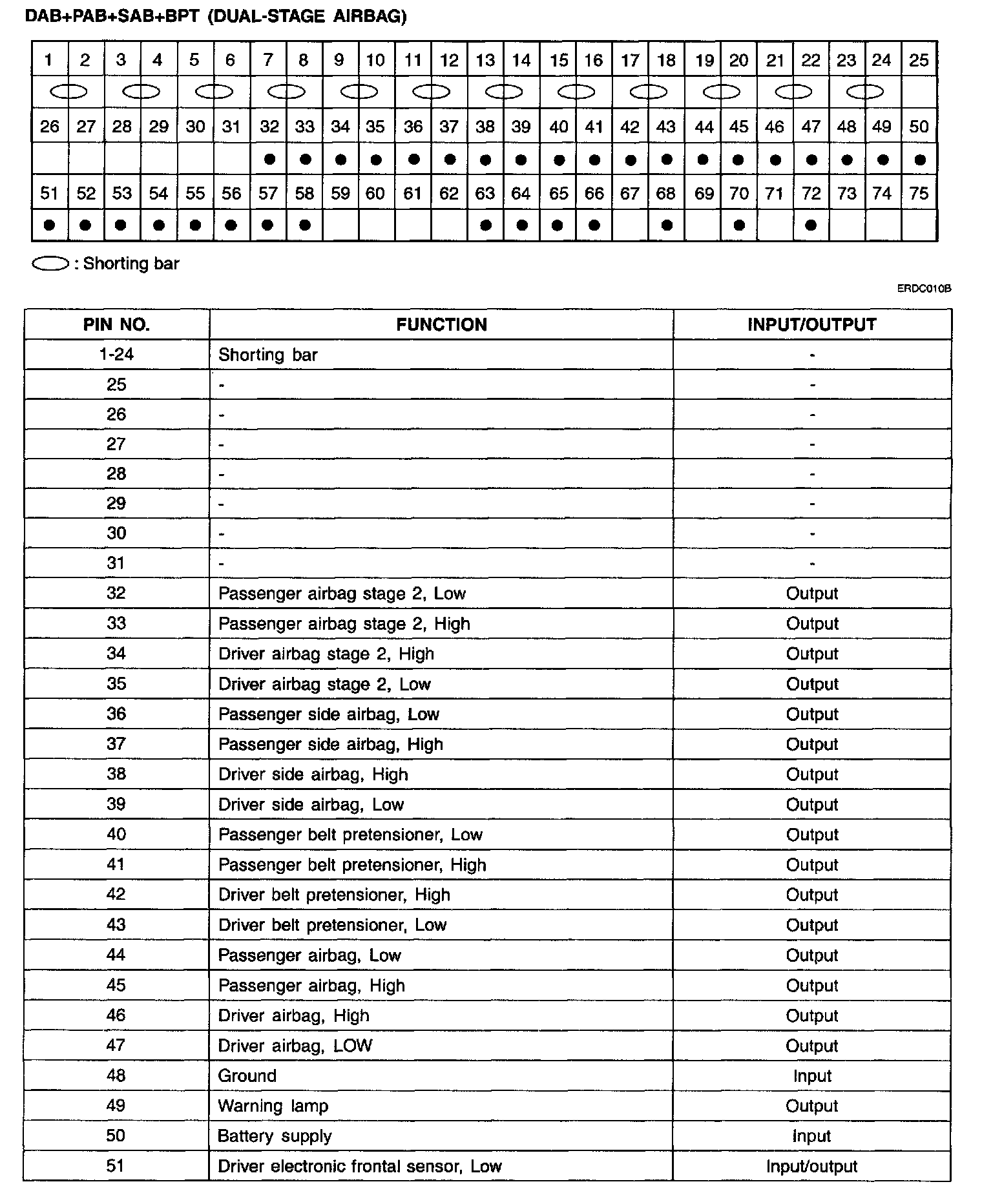

DAB+PAB+SAB+BPT(Dual- Stage Airbag) Part 1:

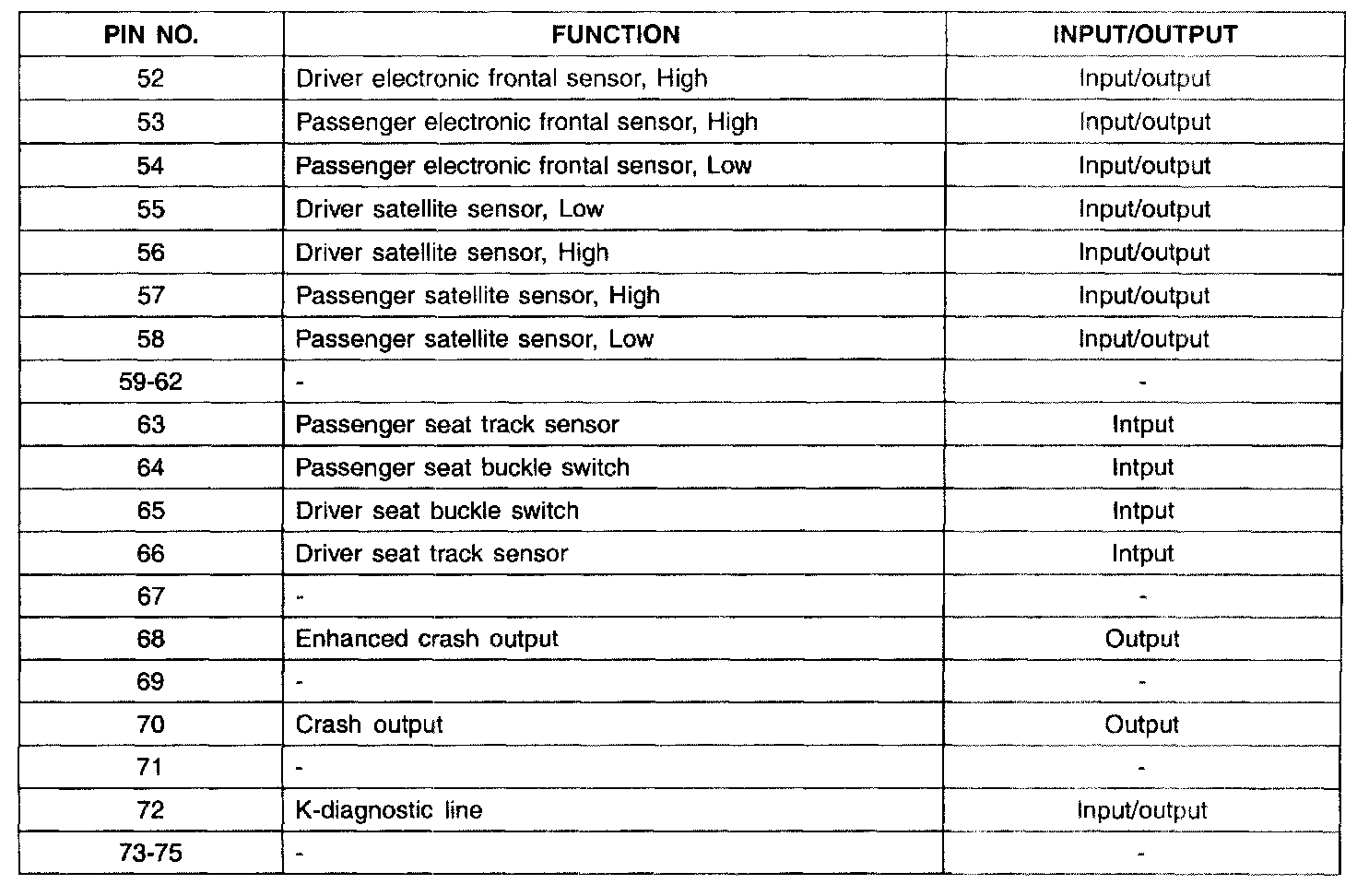

DAB+PAB+SAB+BPT(Dual- Stage Airbag) Part 2:
