Component Location Index

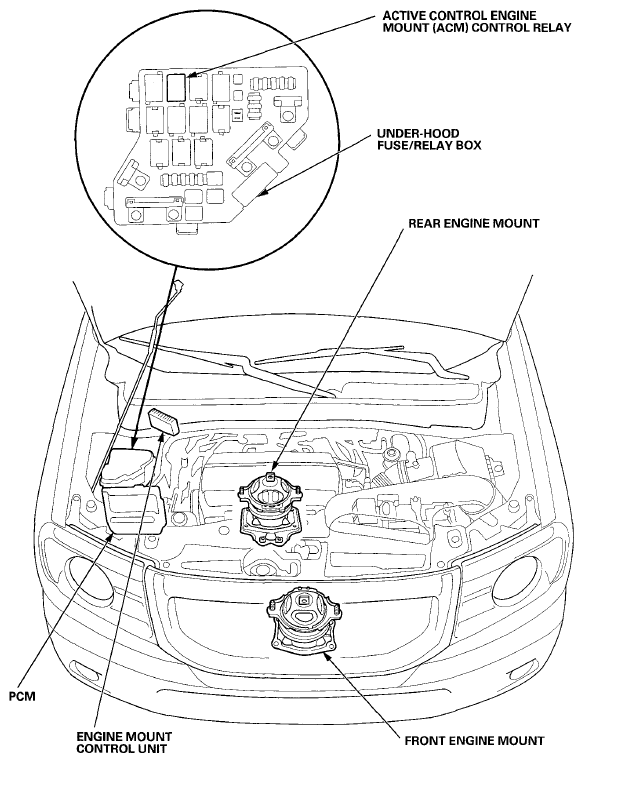

Fig 1: Active Control Engine Mount System Component Location

G08078491

Courtesy of AMERICAN HONDA MOTOR CO., INC.
