Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

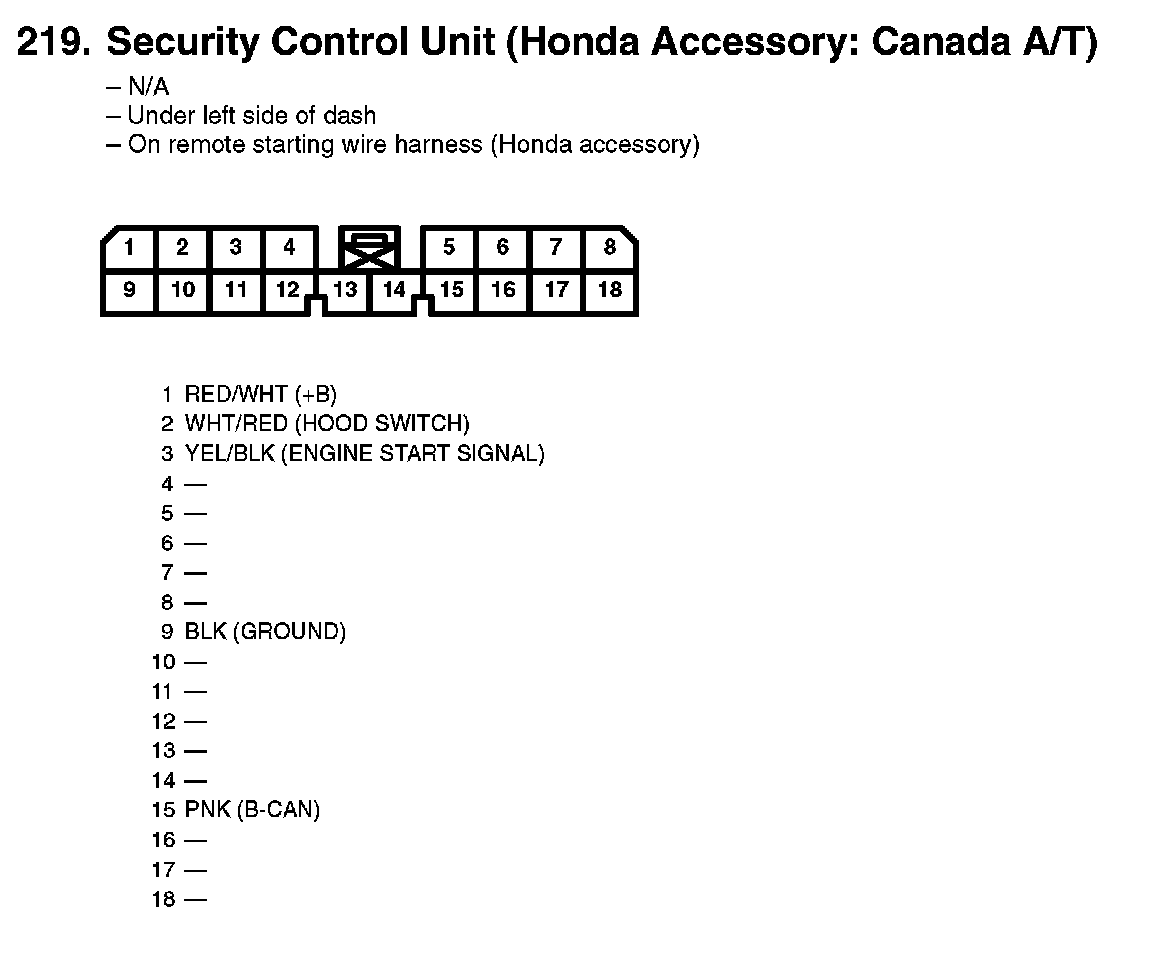

219. Security Control Unit (Honda Accessory: Canada A/T):

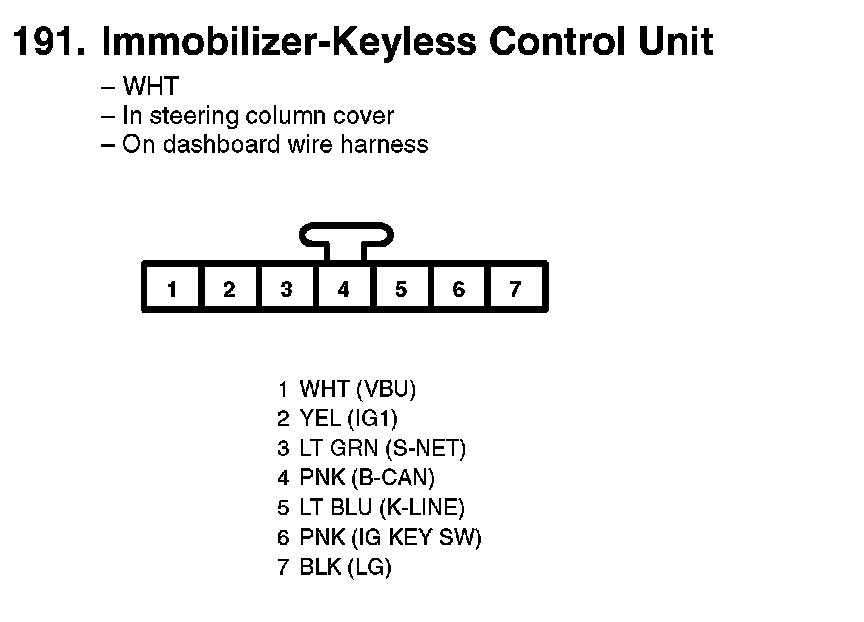

191. Immobilizer-Keyless Control Unit:
