Home >> Honda >> 2004 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

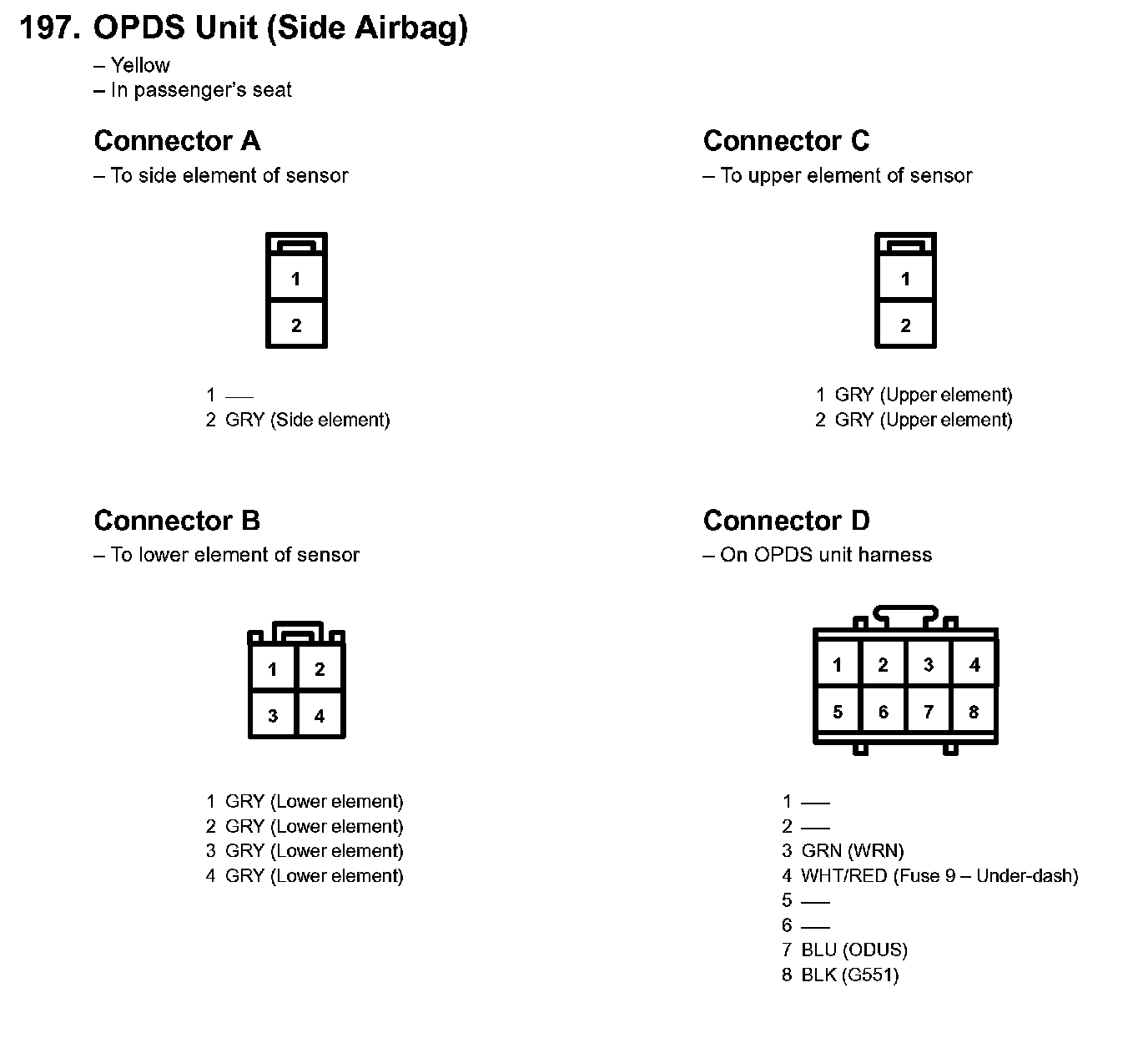

197. OPDS Unit (Side Airbag):

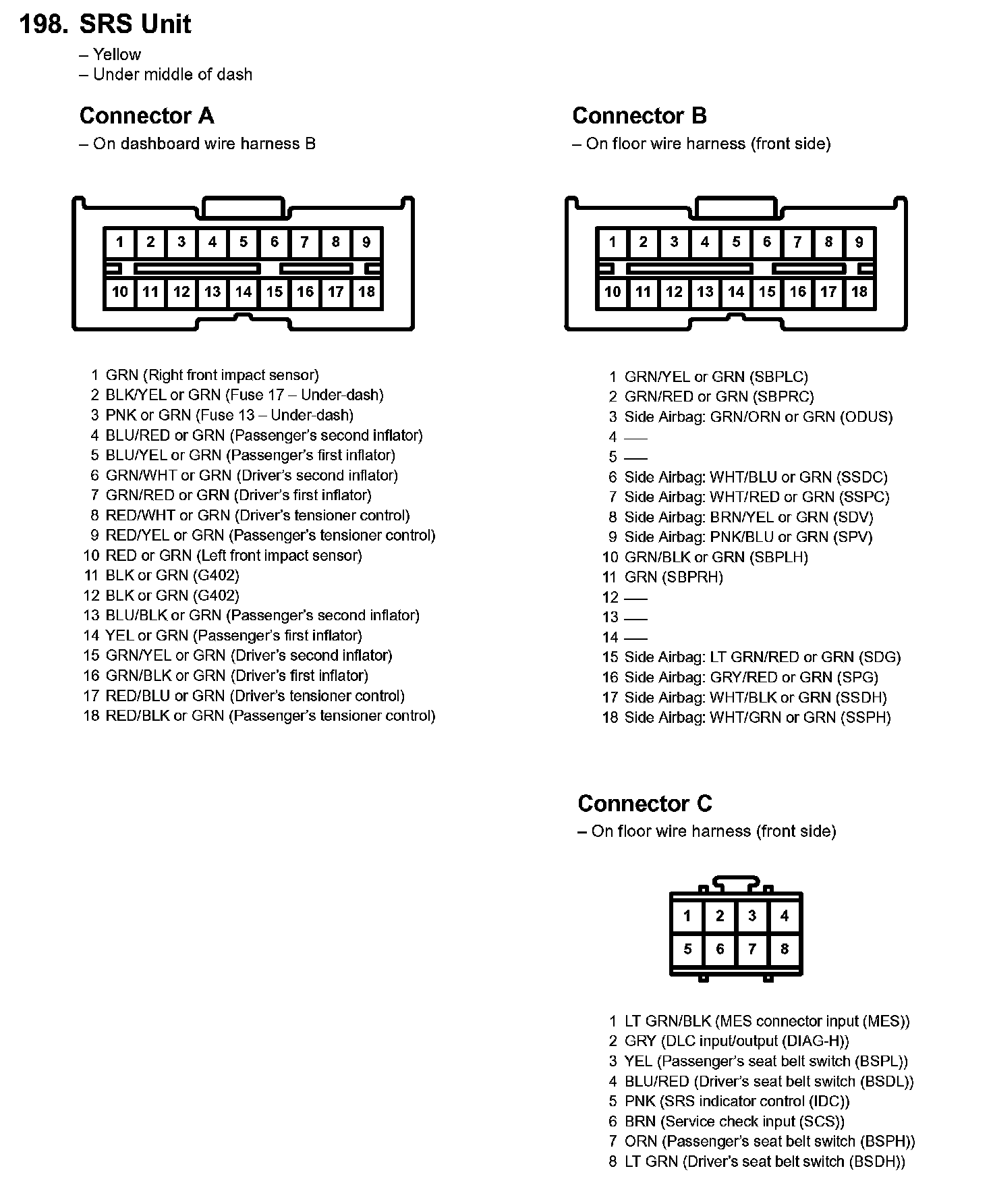

198. SRS Unit:
