Home >> Honda >> 2003 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Transistor HVAC

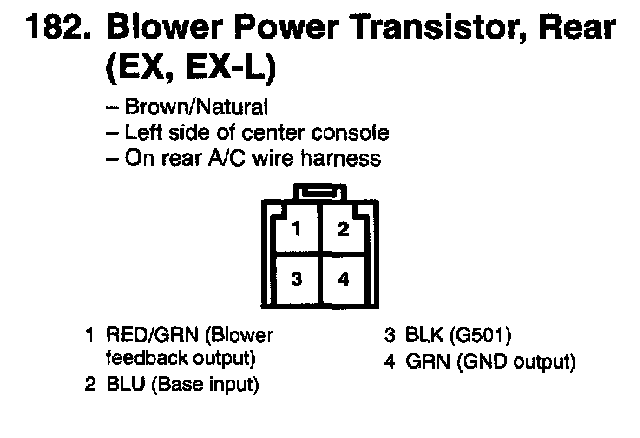

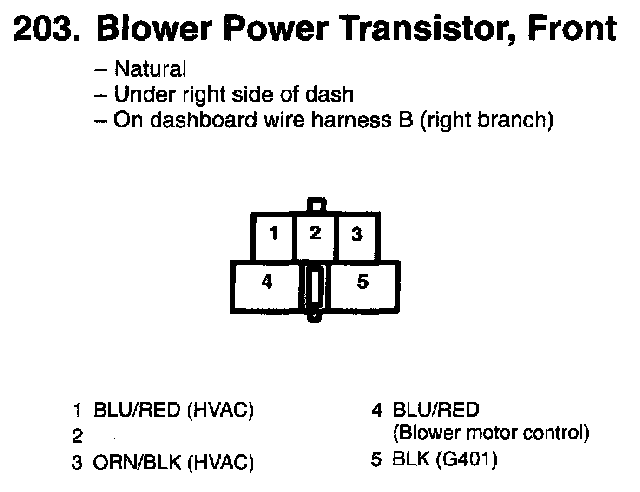

Power Transistor HVAC

(EX, EX-L):
