Honda
>>
2003
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>

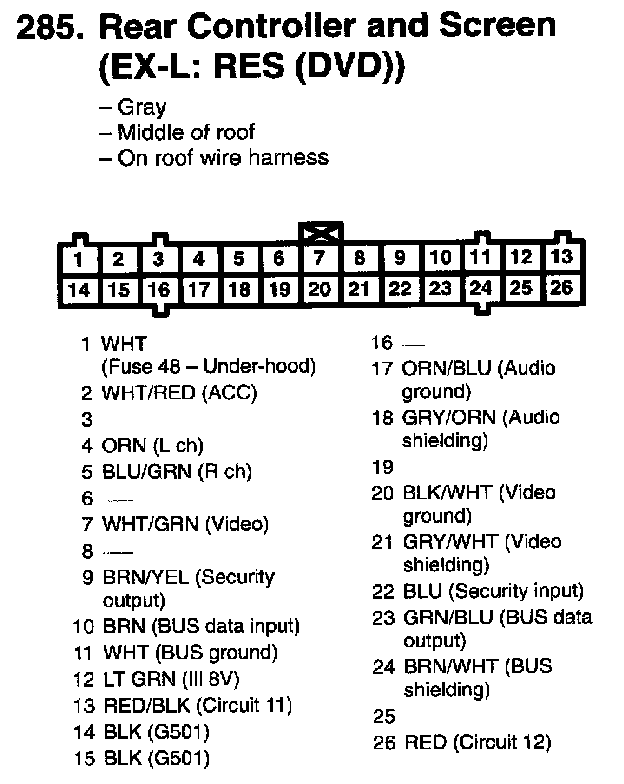

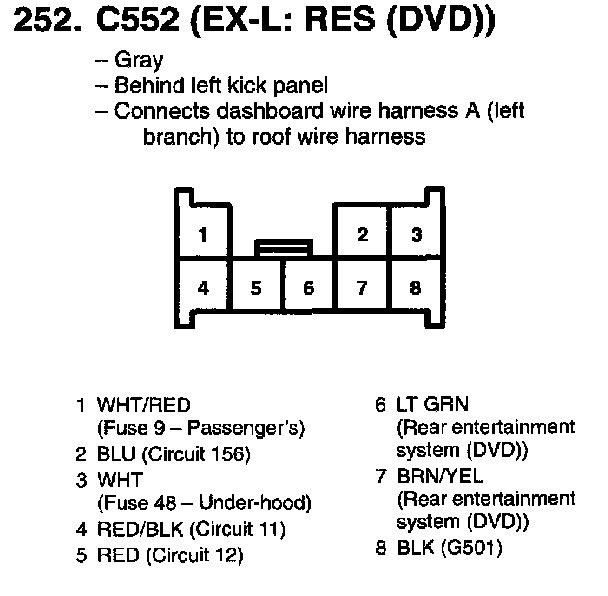

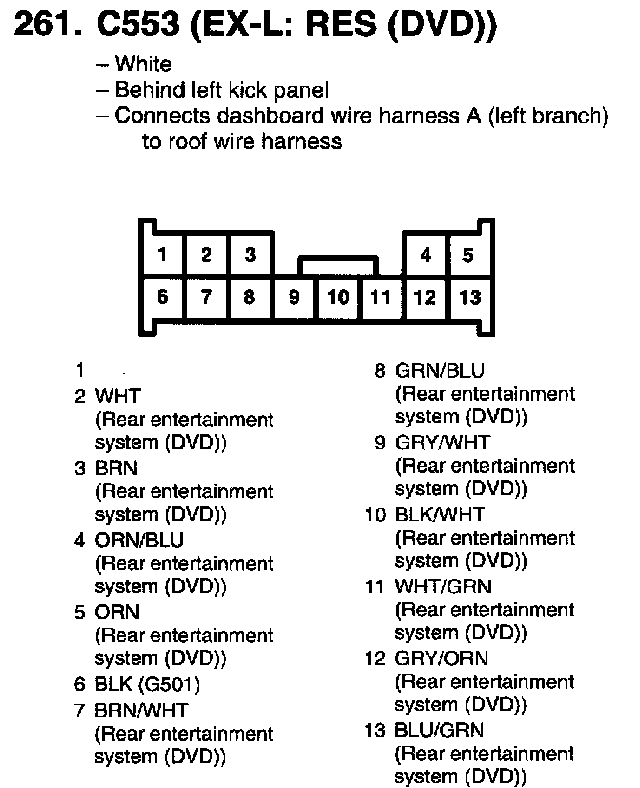

Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram
(EX-L: RES (DVD)):
(EX-L: RES (DVD)):
(EX-L: RES (DVD)):
