Exhaust System - Exploded View

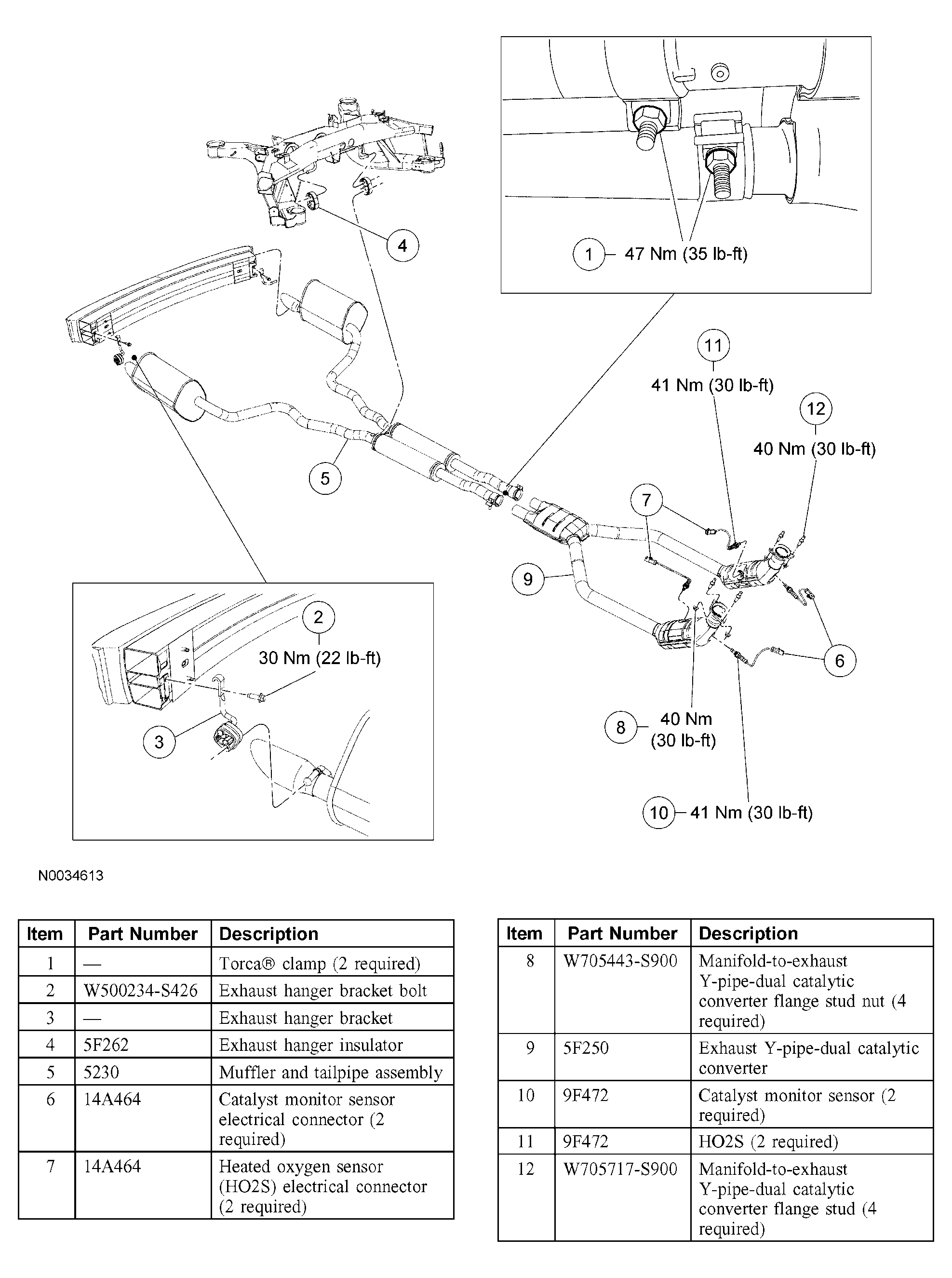

Fig 1: Exhaust System - Exploded View With Torque Specifications
G04008770Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate PROCEDURES in this article.
