Home >> Ford >> 1995 >> Aerostar AWD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Integrated Control Relay Module

Integrated Control Relay Module

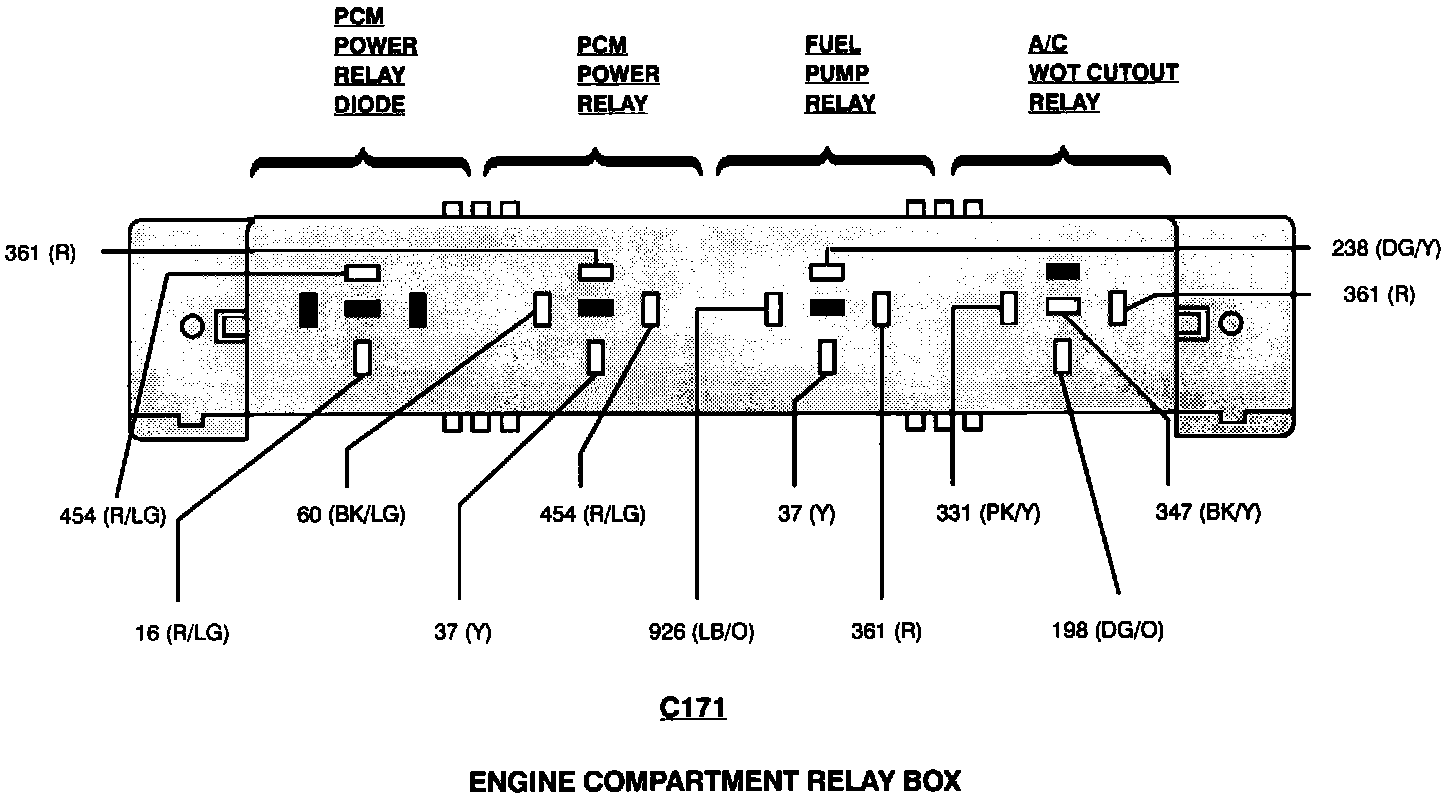

Engine Compartment Relay Box:
