Ignition Control Module
Ignition Control Module

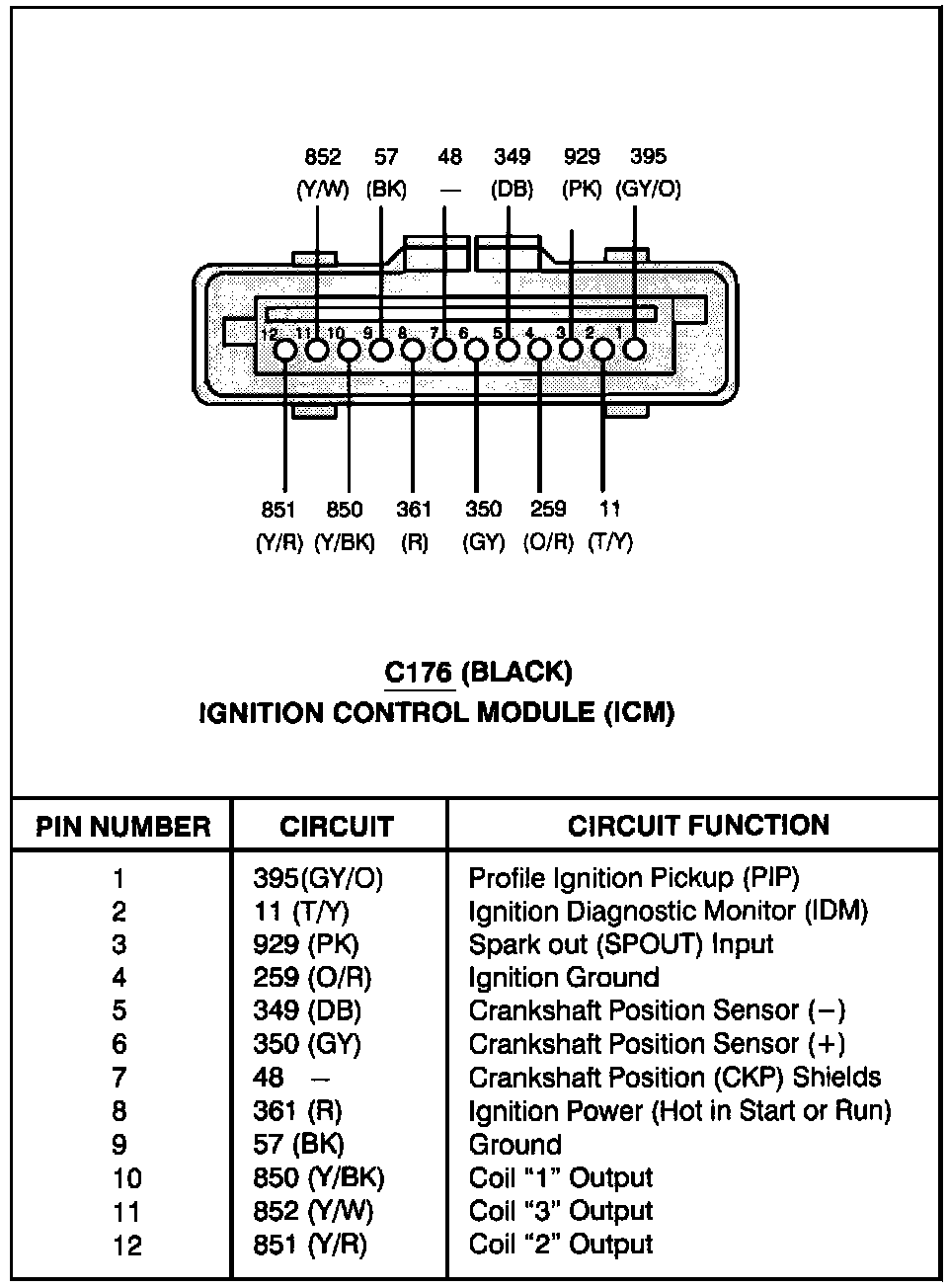

Ignition Control Module:
Connector View
Electronic Distributorless Ignition System (EDIS) Module:
Ignition Control Module
(ICM)
Pin-Out
