Home >> Ford >> 1994 >> Tempo L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

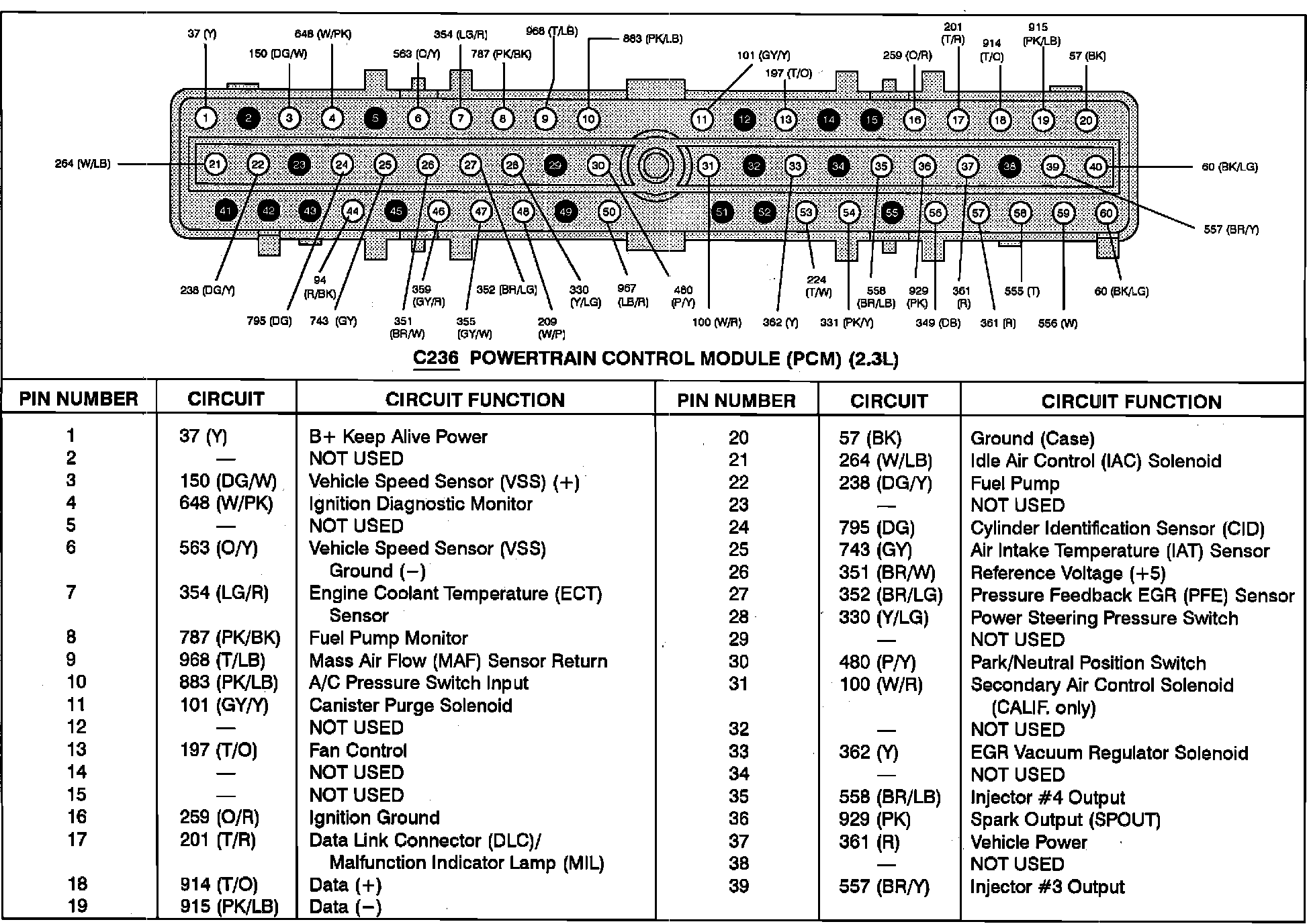

Powertrain Control Module (PCM):

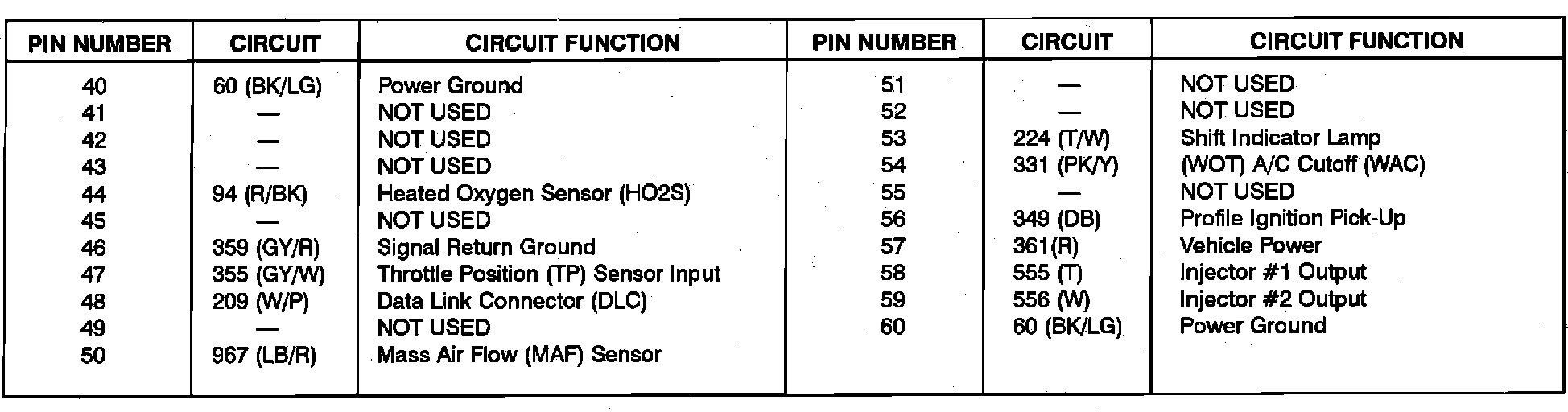

Powertrain Control Module (PCM) Pinout Chart:
