Home >> Ford >> 1994 >> Tempo L4-140 2.3L HSC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

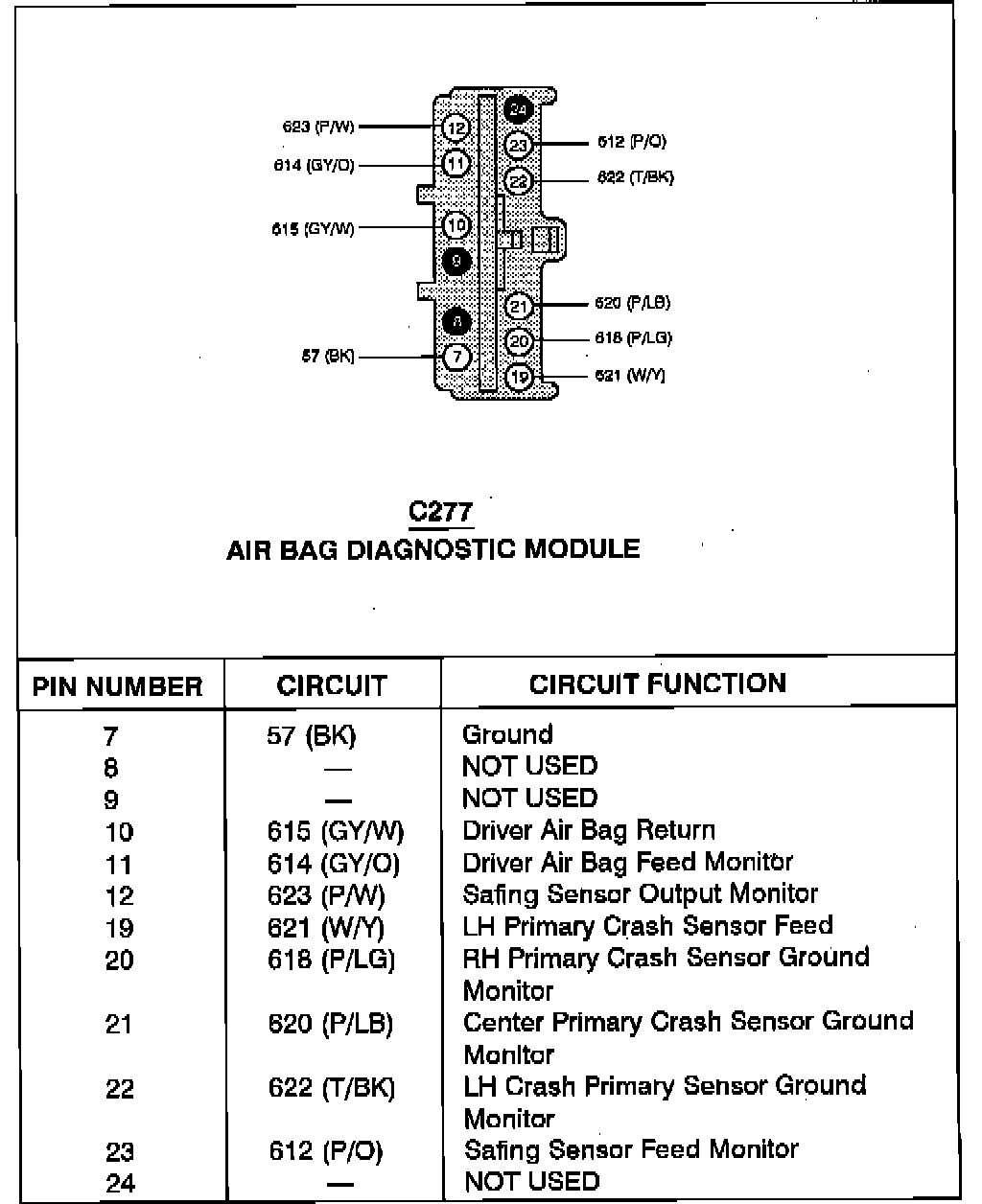

Air Bag Diagnostic Module:

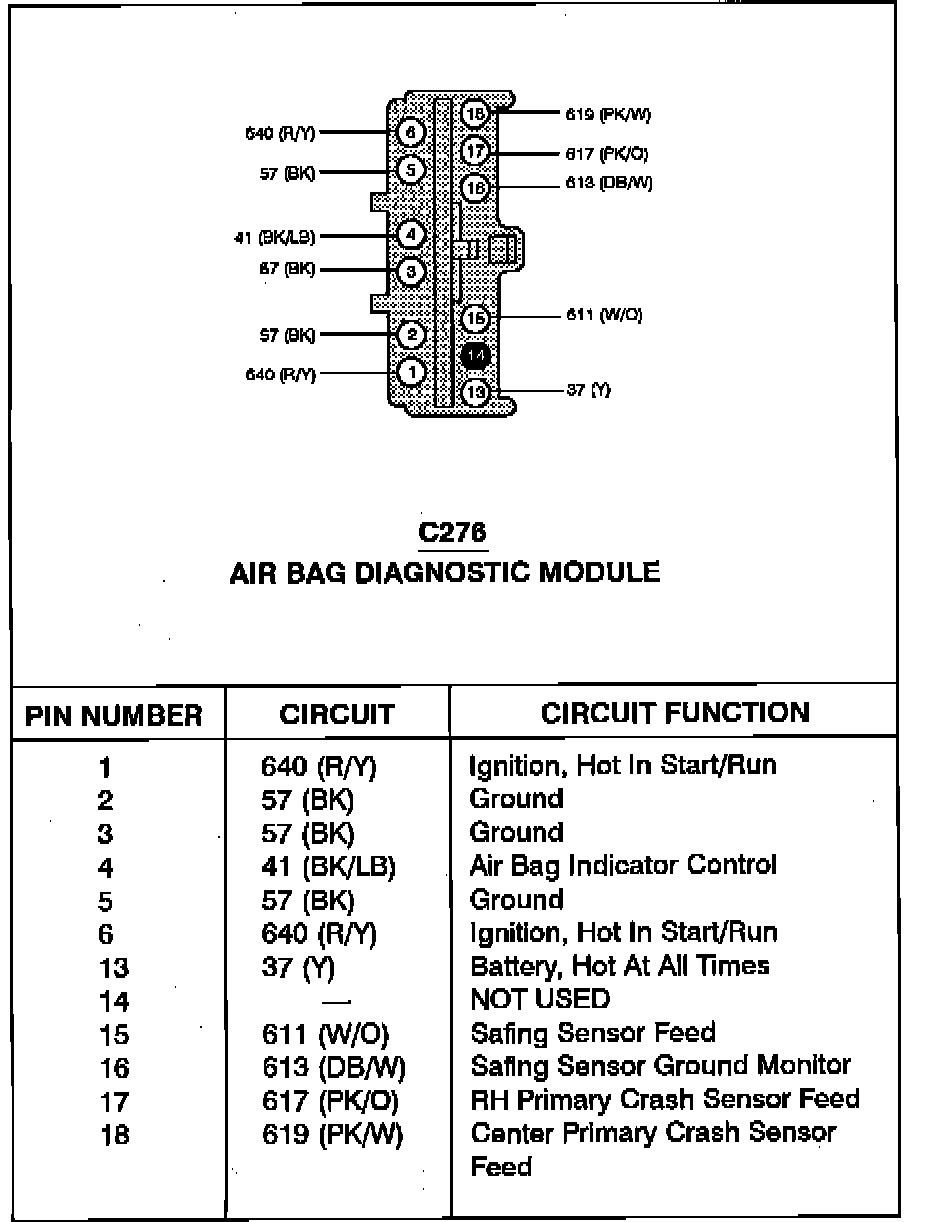

Air Bag Diagnostic Module:
