Home >> Ford >> 1993 >> Aerostar 2WD V6-183 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Terminal Identification

Terminal Identification

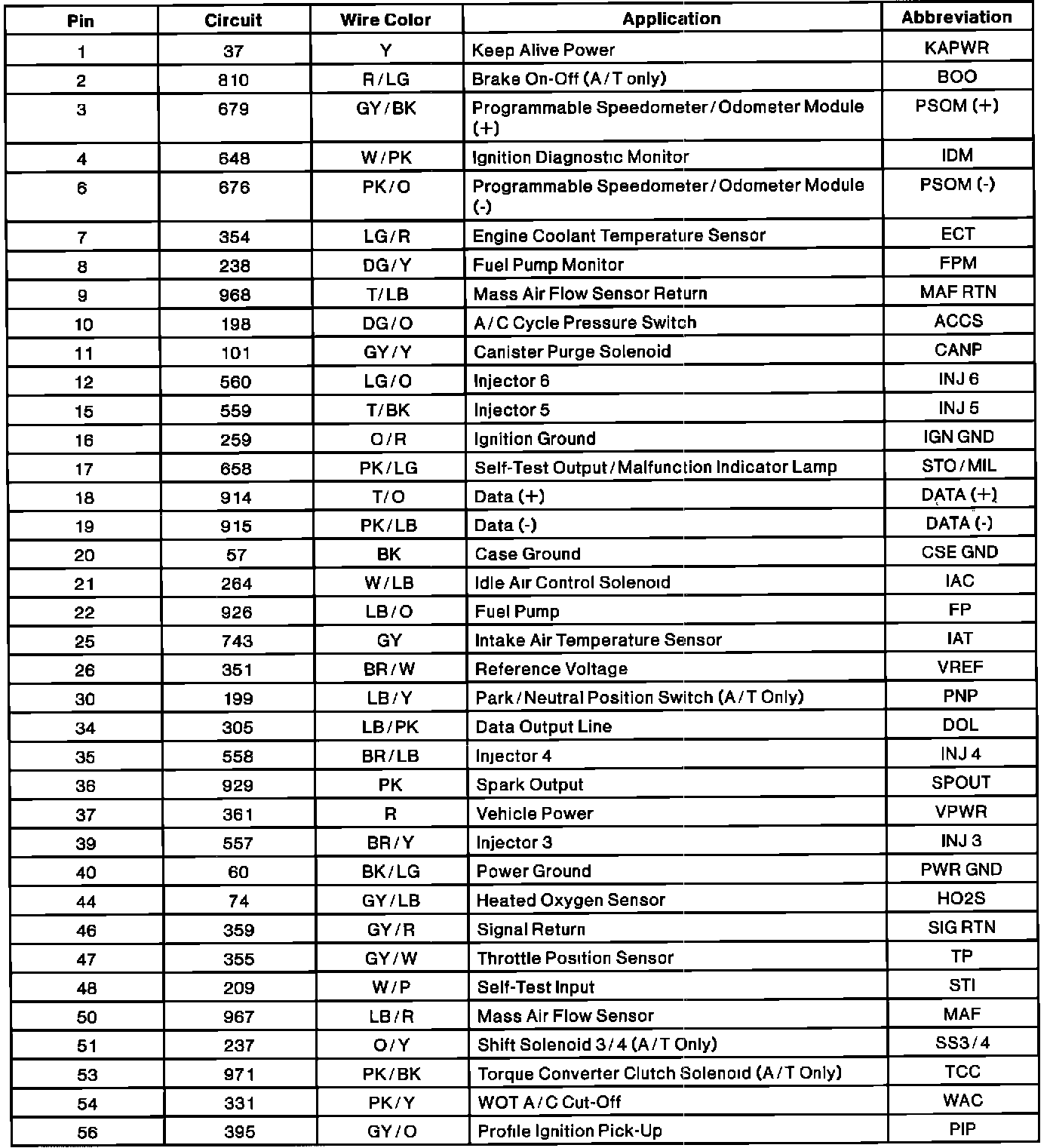

Powertrain Control Module (PCM) Connector Pin Useage:



Powertrain Control Module (PCM) Connector Pin Useage:
