Home >> Eagle >> 1994 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> 4-Way Connector

4-Way Connector

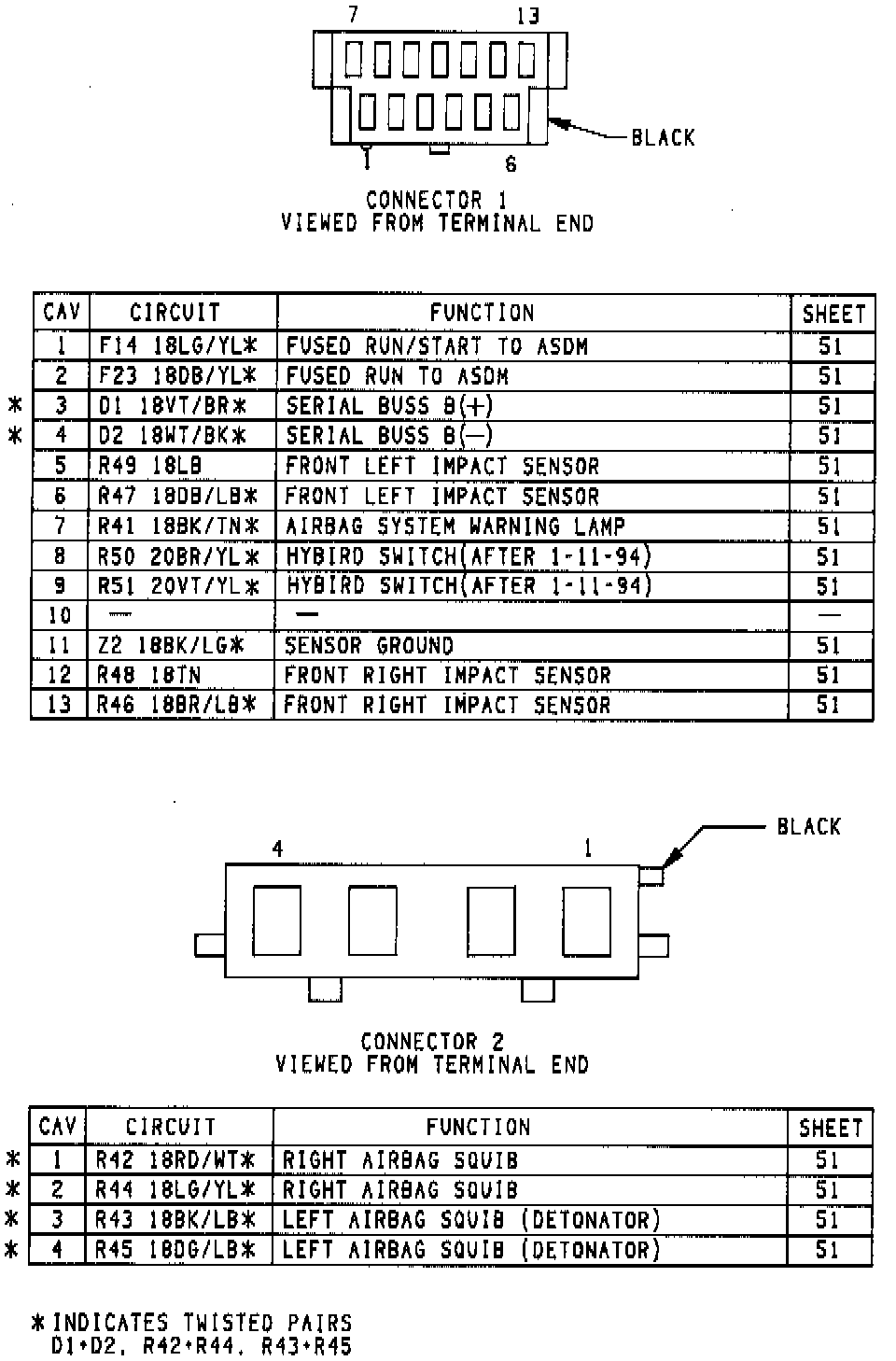

Airbag Control Module Connectors:

Air Bag Control Module Connector:
