Transmission Range Sensor Connector End View

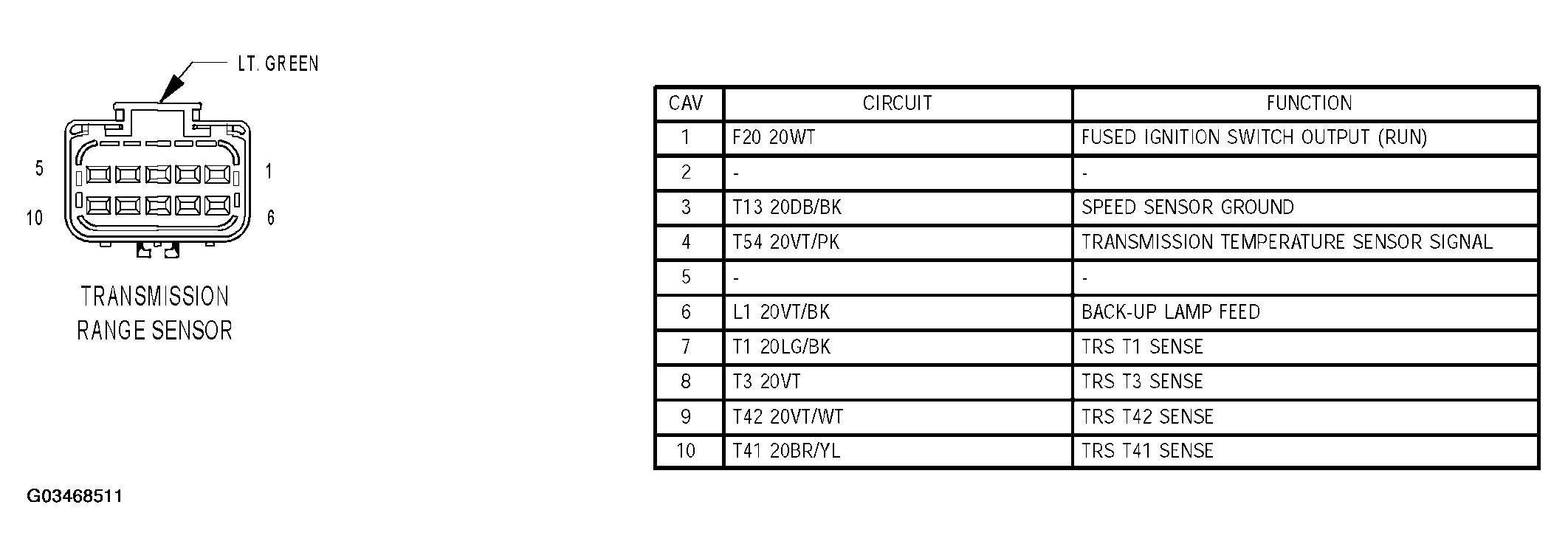

Fig 1: Transmission Range Sensor Connector End View

G03468511

Courtesy of DAIMLERCHRYSLER CORP.
