Left Remote Radio Switch Connector End View

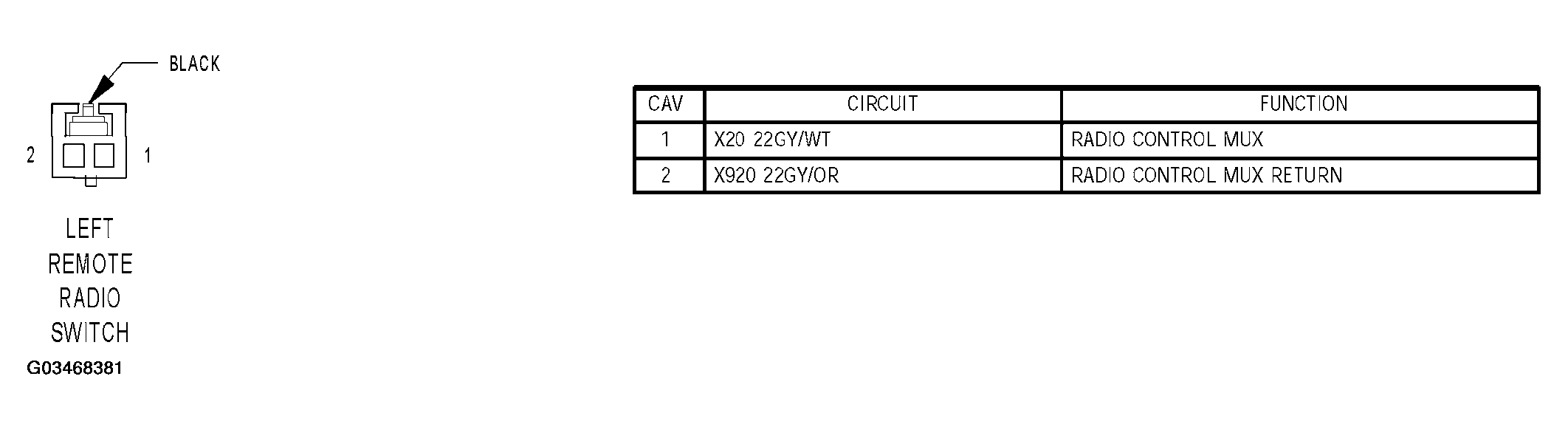

Fig 1: Left Remote Radio Switch Connector End View

G03468381

Courtesy of DAIMLERCHRYSLER CORP.
