Home >> Chrysler >> 2003 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Manual Temperature Control Head

Manual Temperature Control Head

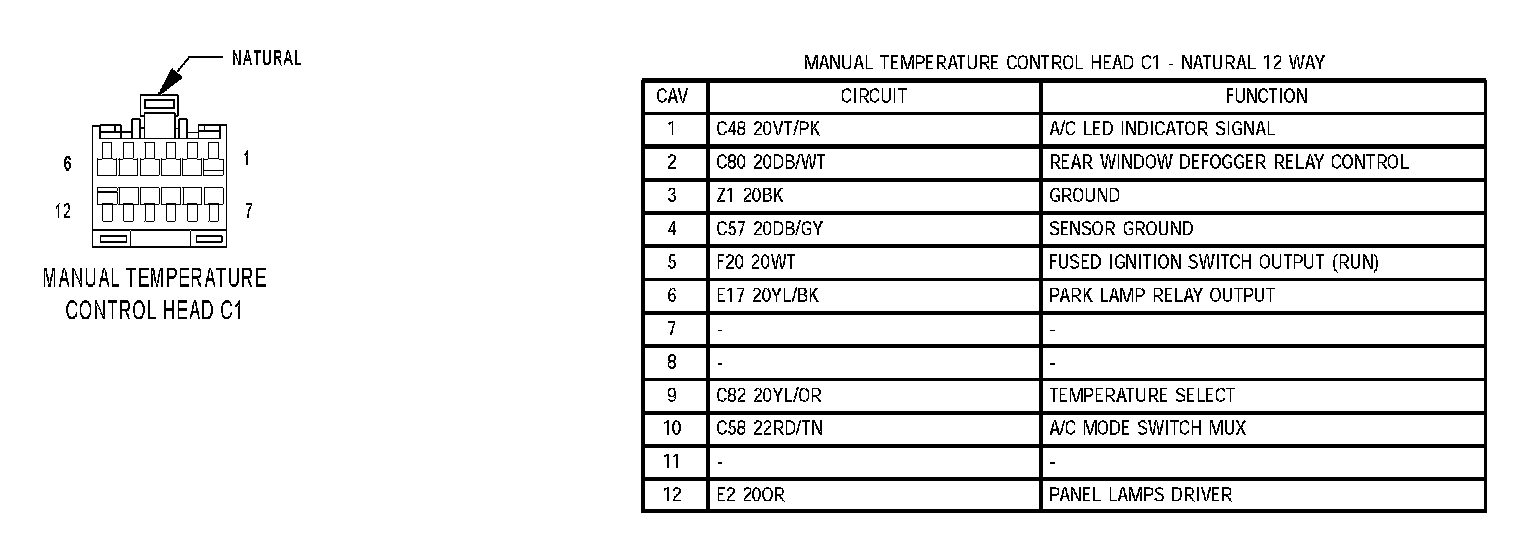

Manual Temperature Control Head C1:

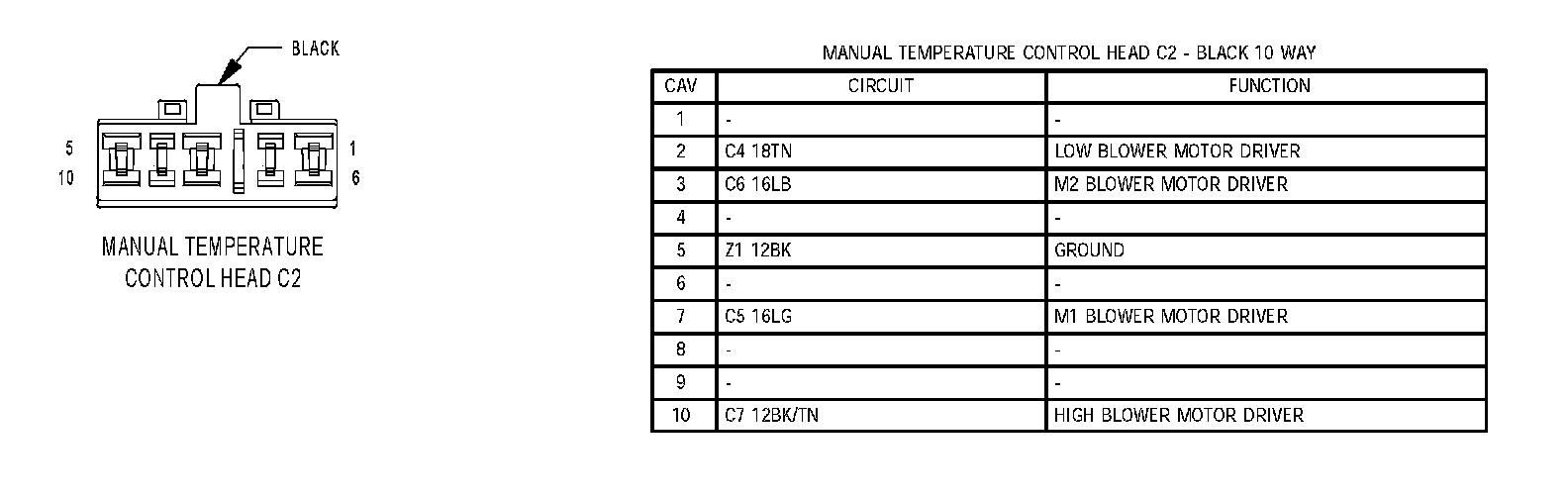

Manual Temperature Control Head C2:
