Keyless Entry - Active

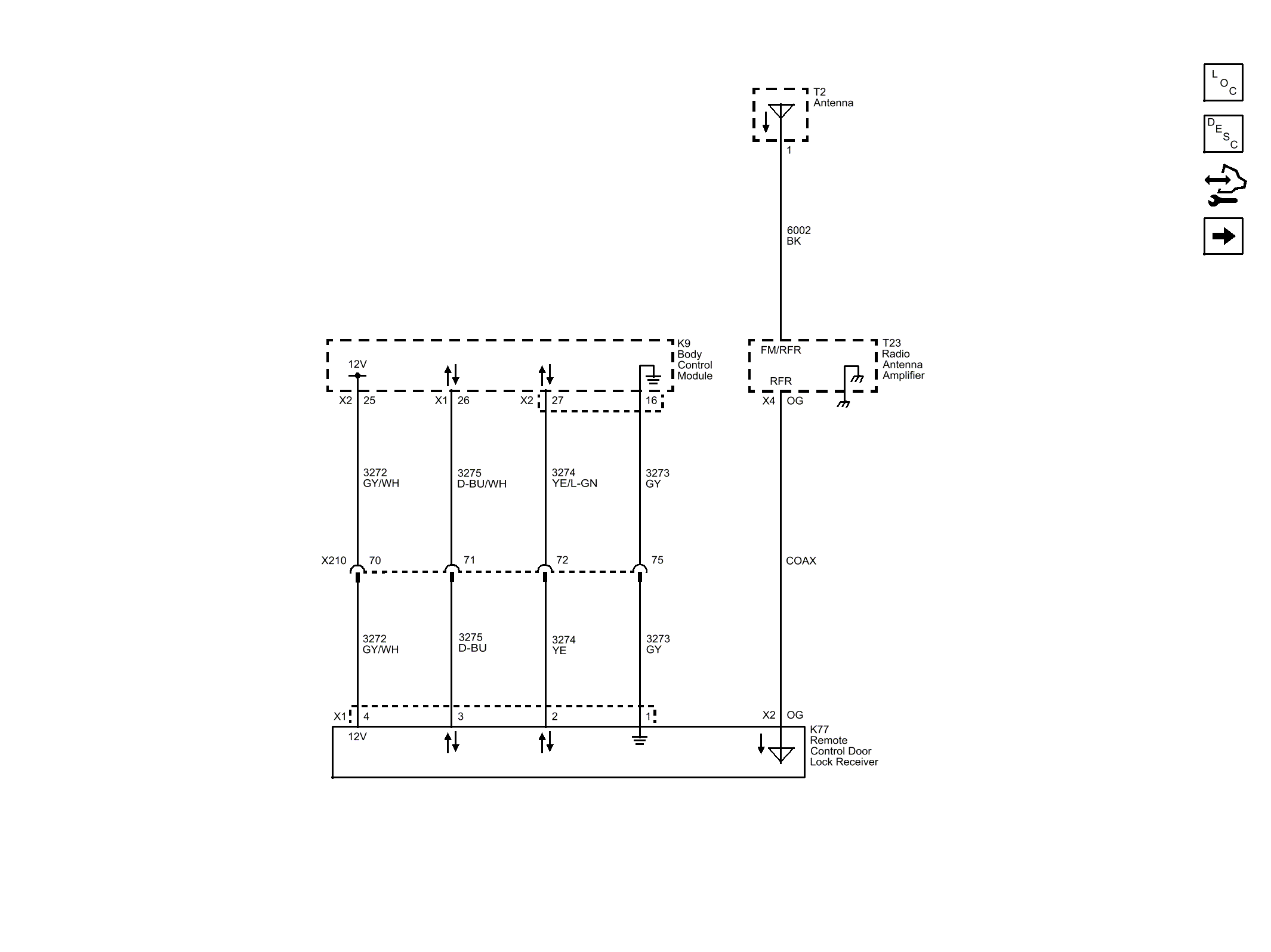

Fig 1: Keyless Entry Wiring Schematic - Active
GM2916854Courtesy of GENERAL MOTORS COMPANY
