Heated Seat Control Module - Driver X2 (KA1 without A45)
Heated Seat Control Module - Driver X2 (KA1 without A45)

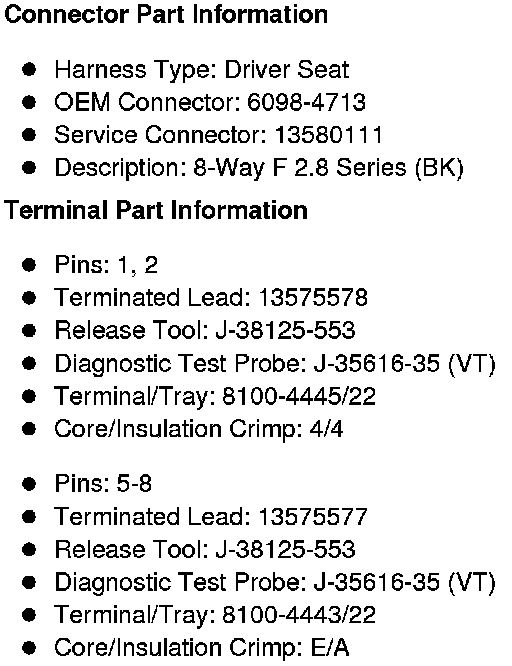

Component Connector End Views

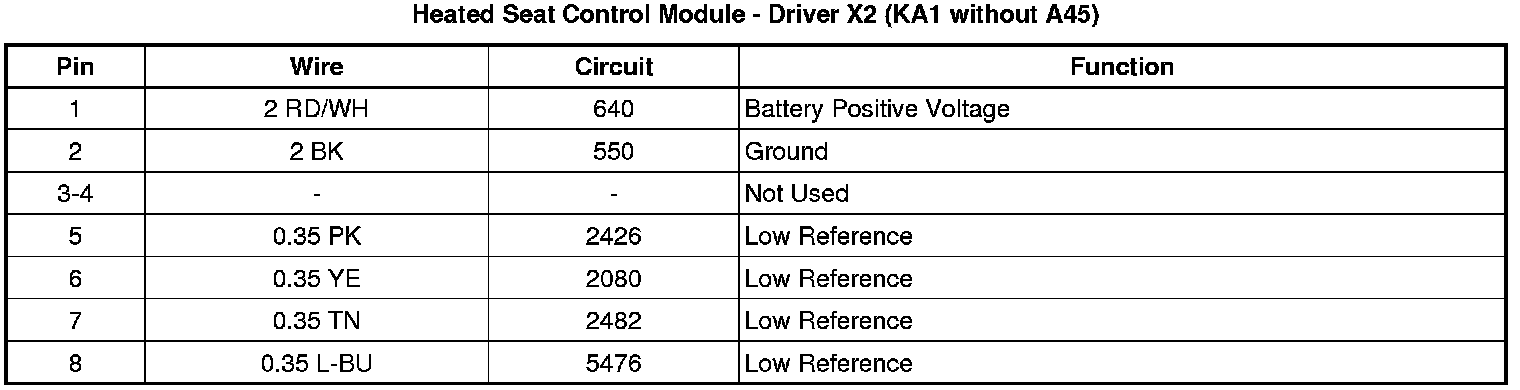

Heated Seat Control Module - Driver X2 (KA1 without A45)
