Fuel Pressure Control Module: Diagrams

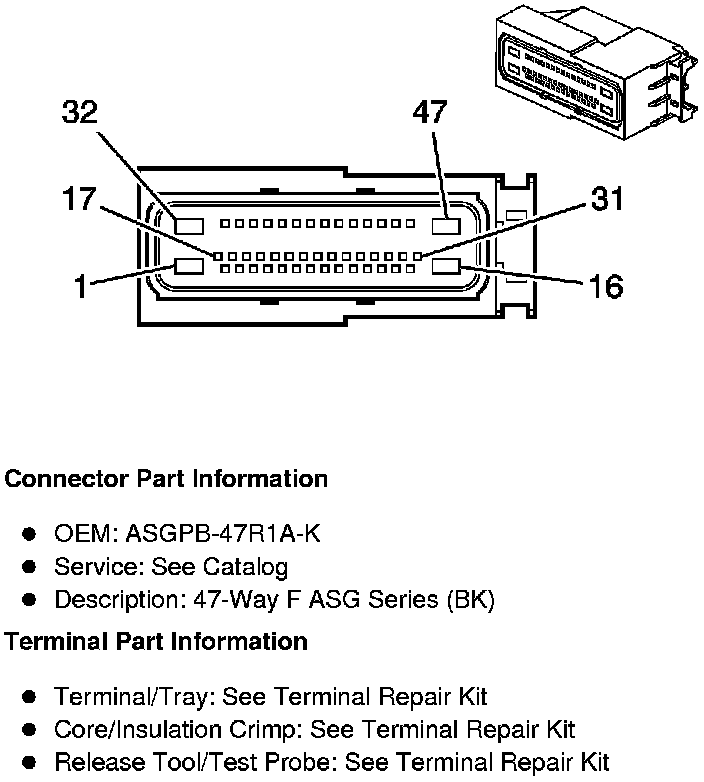

Component Connector End Views

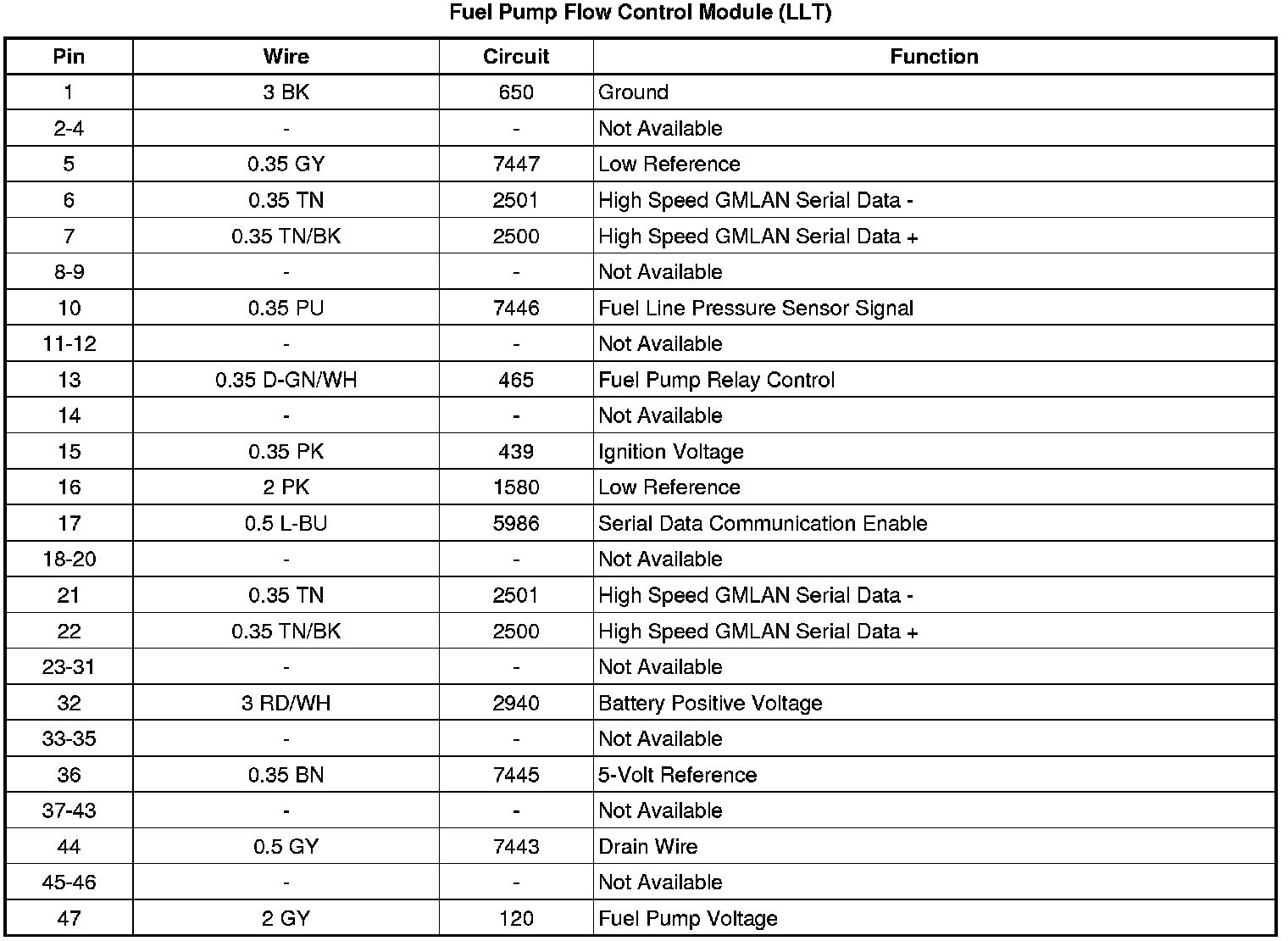

Fuel Pump Flow Control Module (LLT)
