Transfer Case Encoder Motor

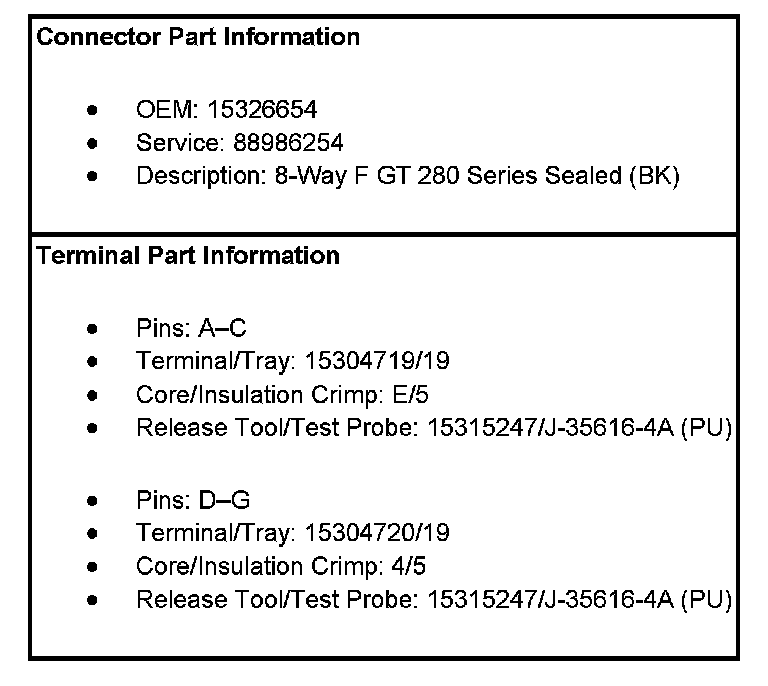

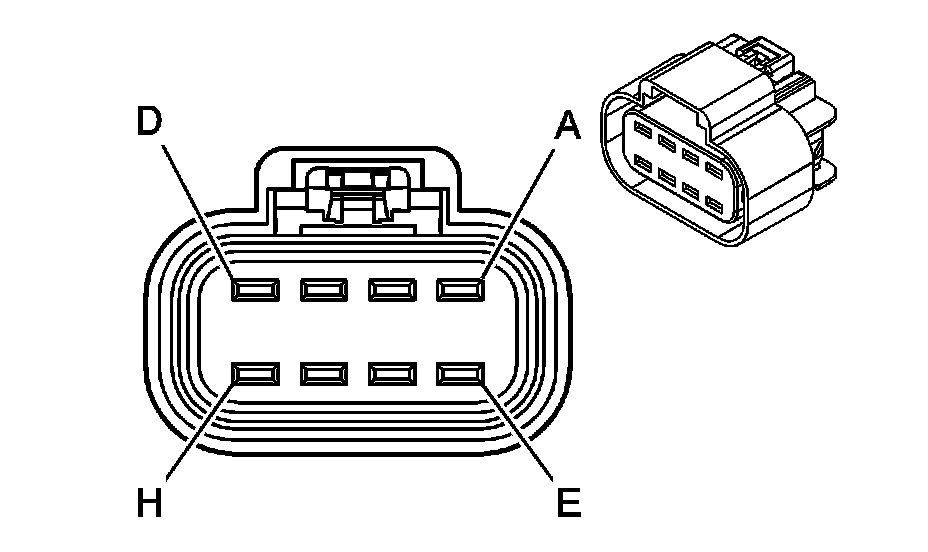

Transfer Case Control Connector End Views

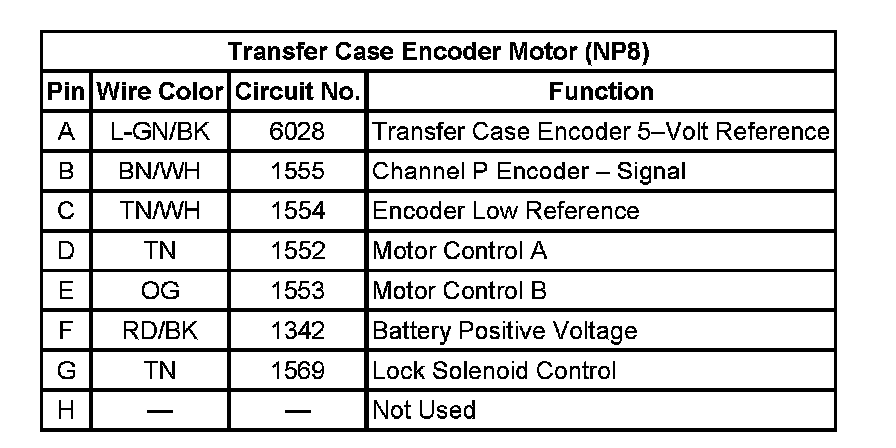

Transfer Case Encoder Motor (NP8)







Transfer Case Encoder Motor (NP8):
