Body Control Module (BCM) - C4

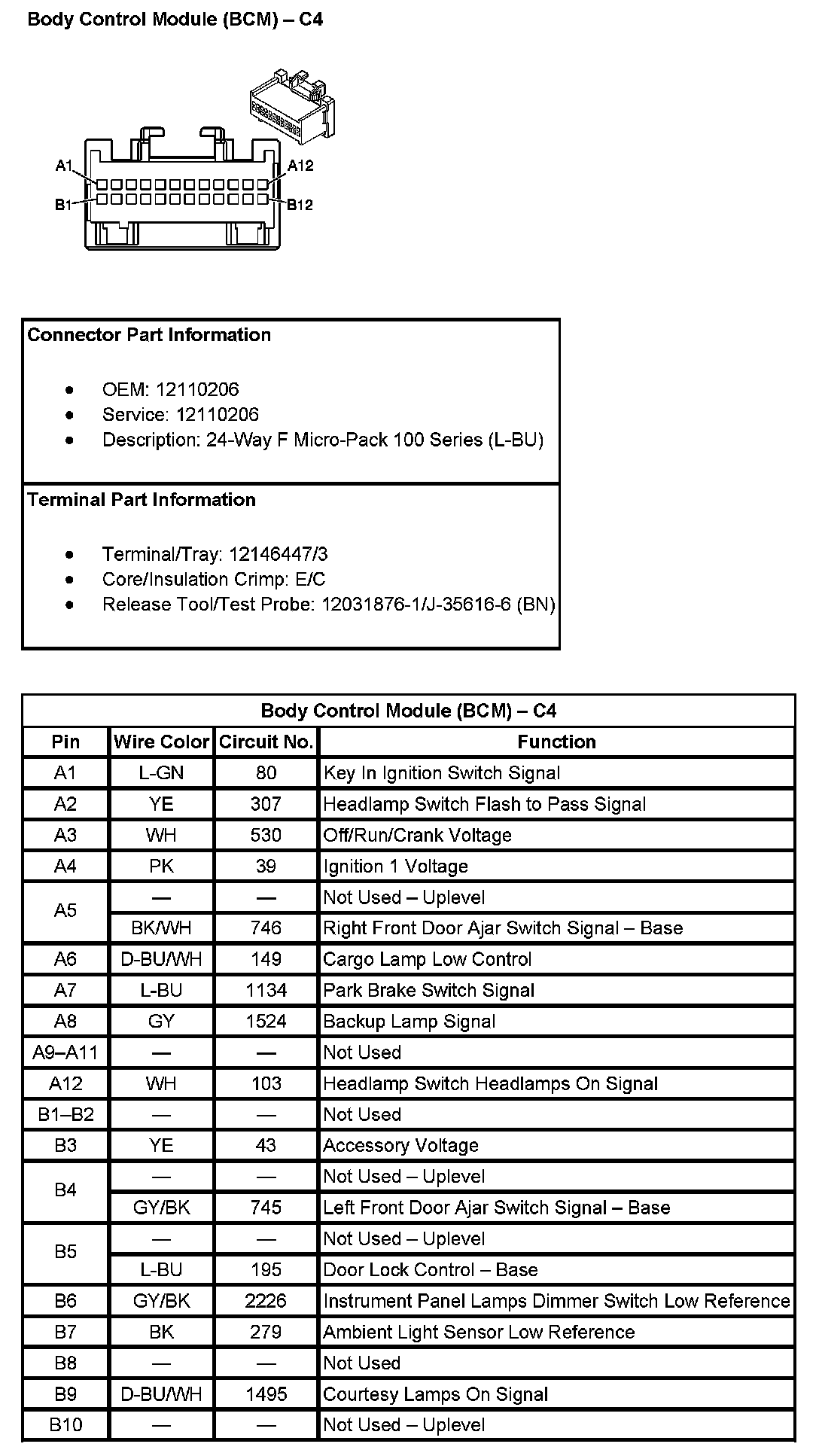

Body Control Module (BCM) - C4 (Pin A1 To B10):



Body Control Module (BCM) - C4 (Pin B12):
