Home >> Chevrolet >> 2005 >> Blazer 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

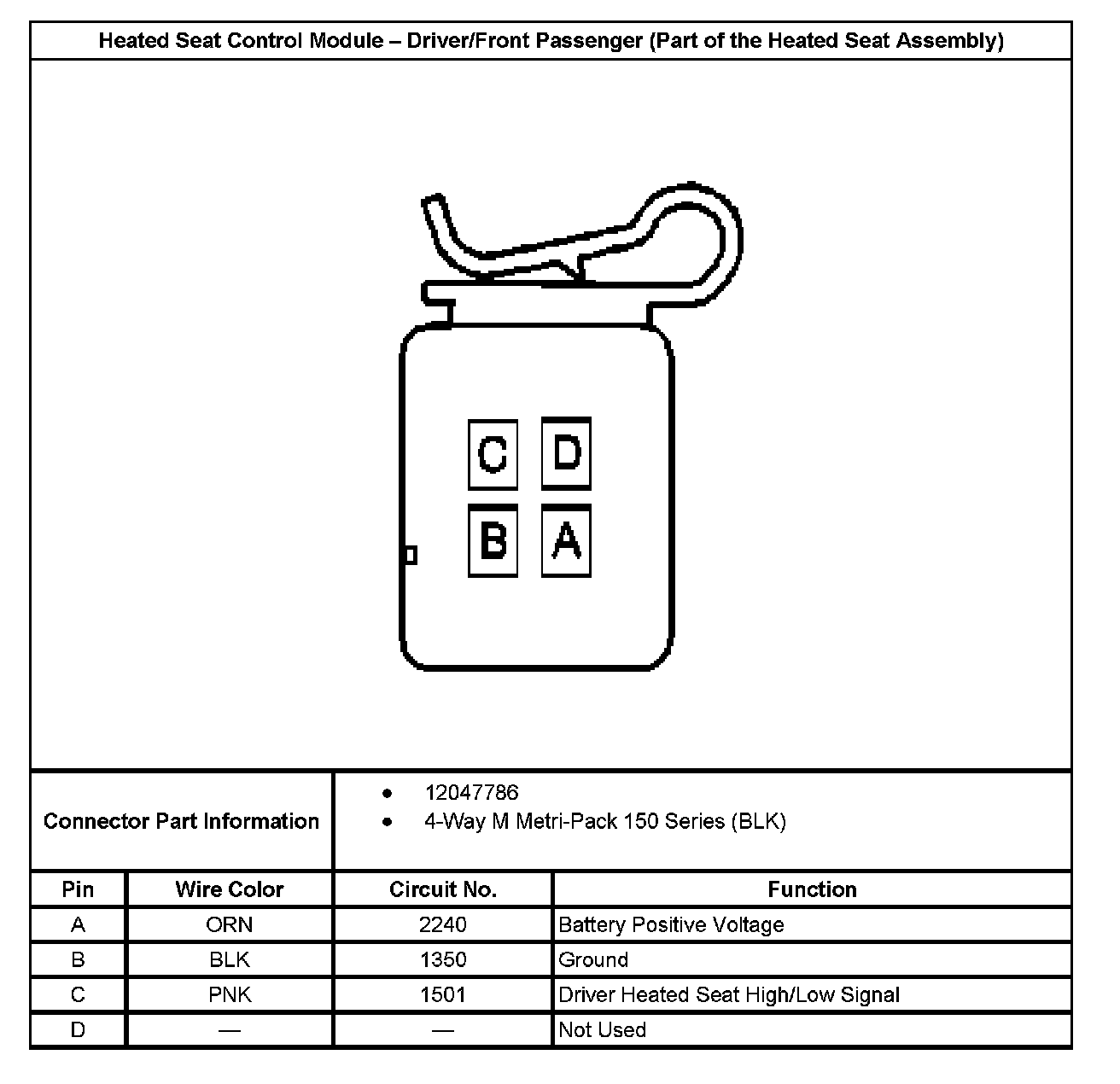

Heated Seat Control Module - Driver/Front Passenger (Part Of The Heated Seat Assembly):
