Home >> Chevrolet >> 2000 >> C Tahoe 2WD V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2

C2

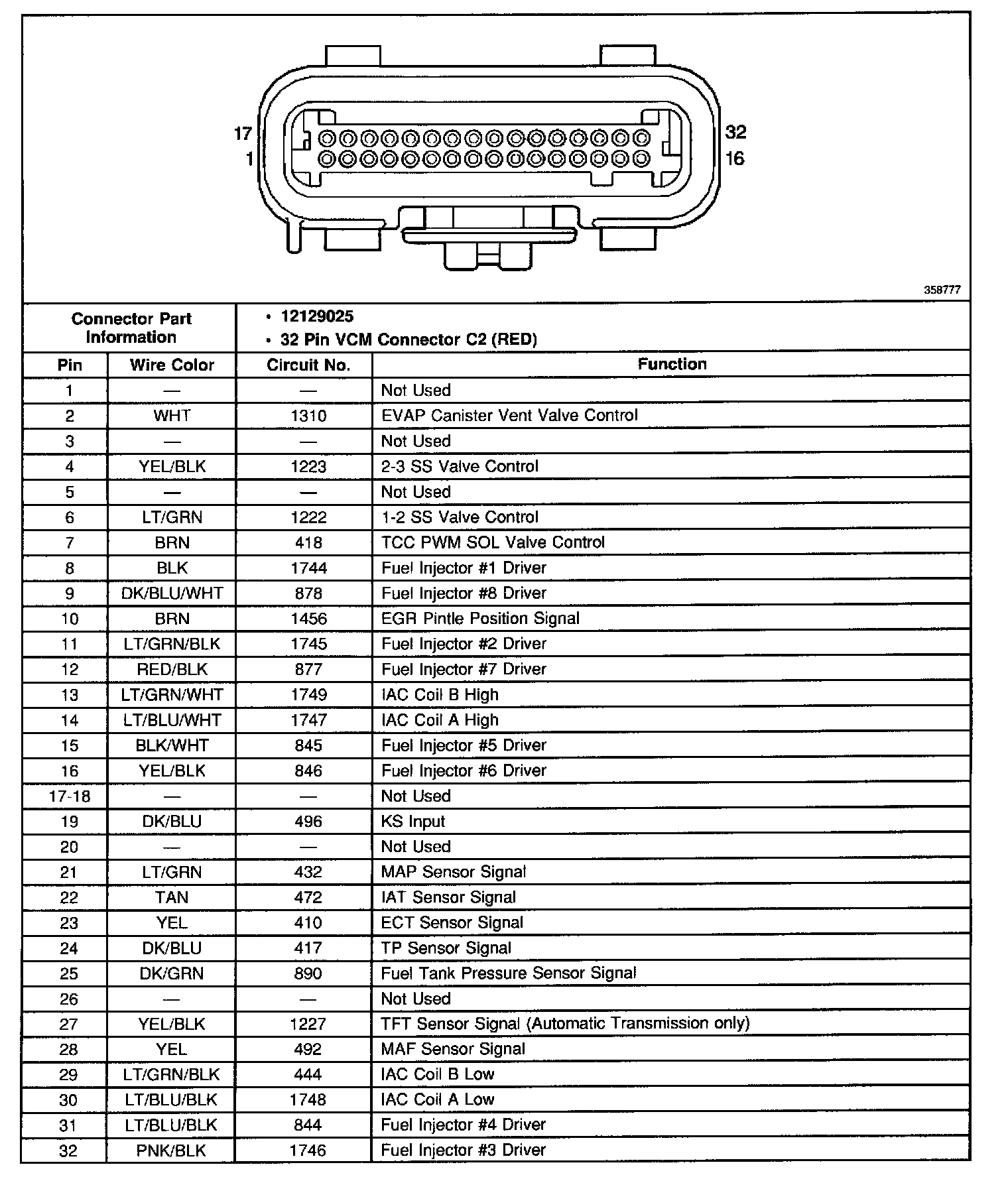

Vehicle Control Module (VCM) Connector C2:
