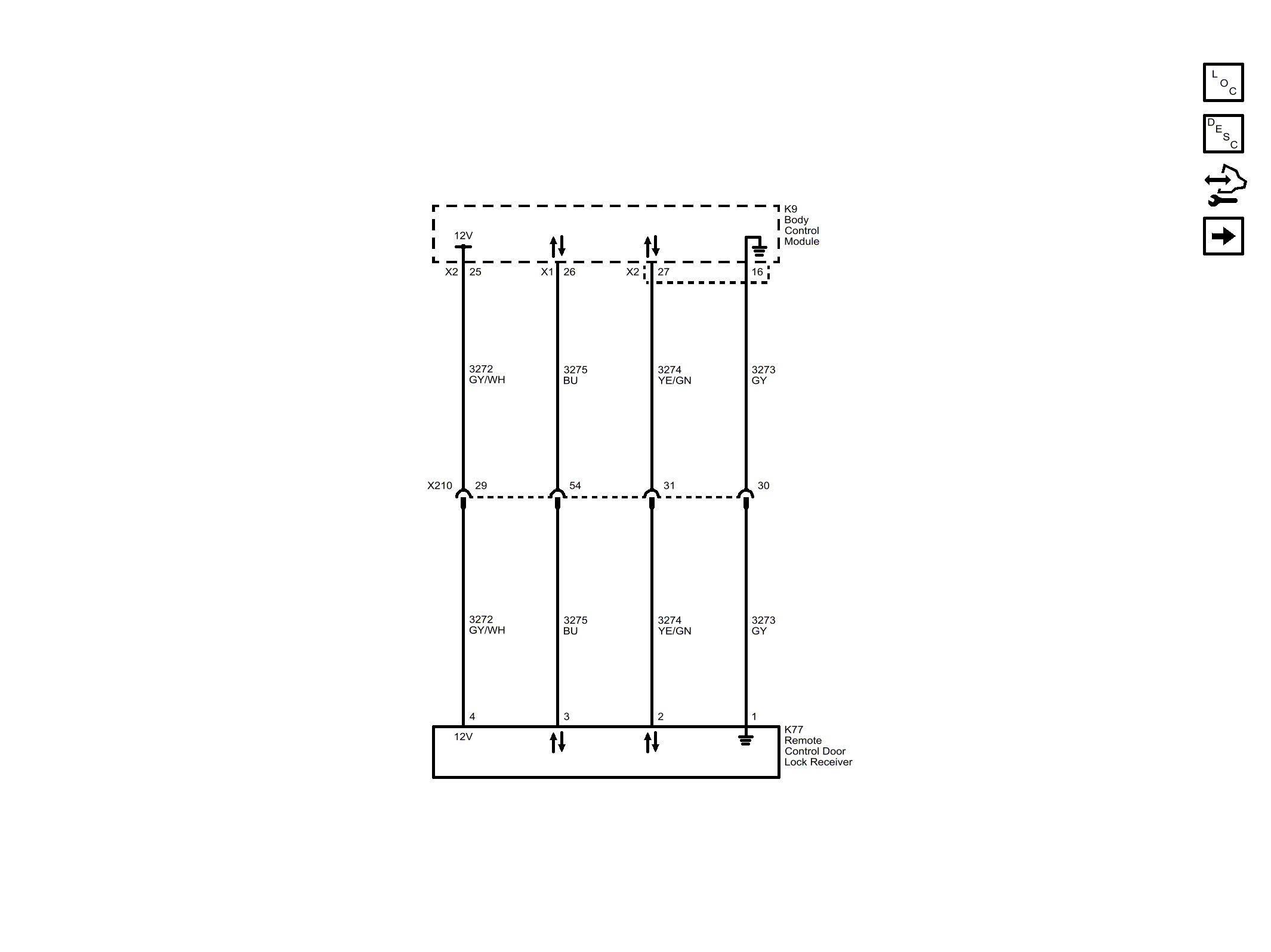

Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Keyless Entry System And Remote Function >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
