Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

Wiper Control Module: Diagrams

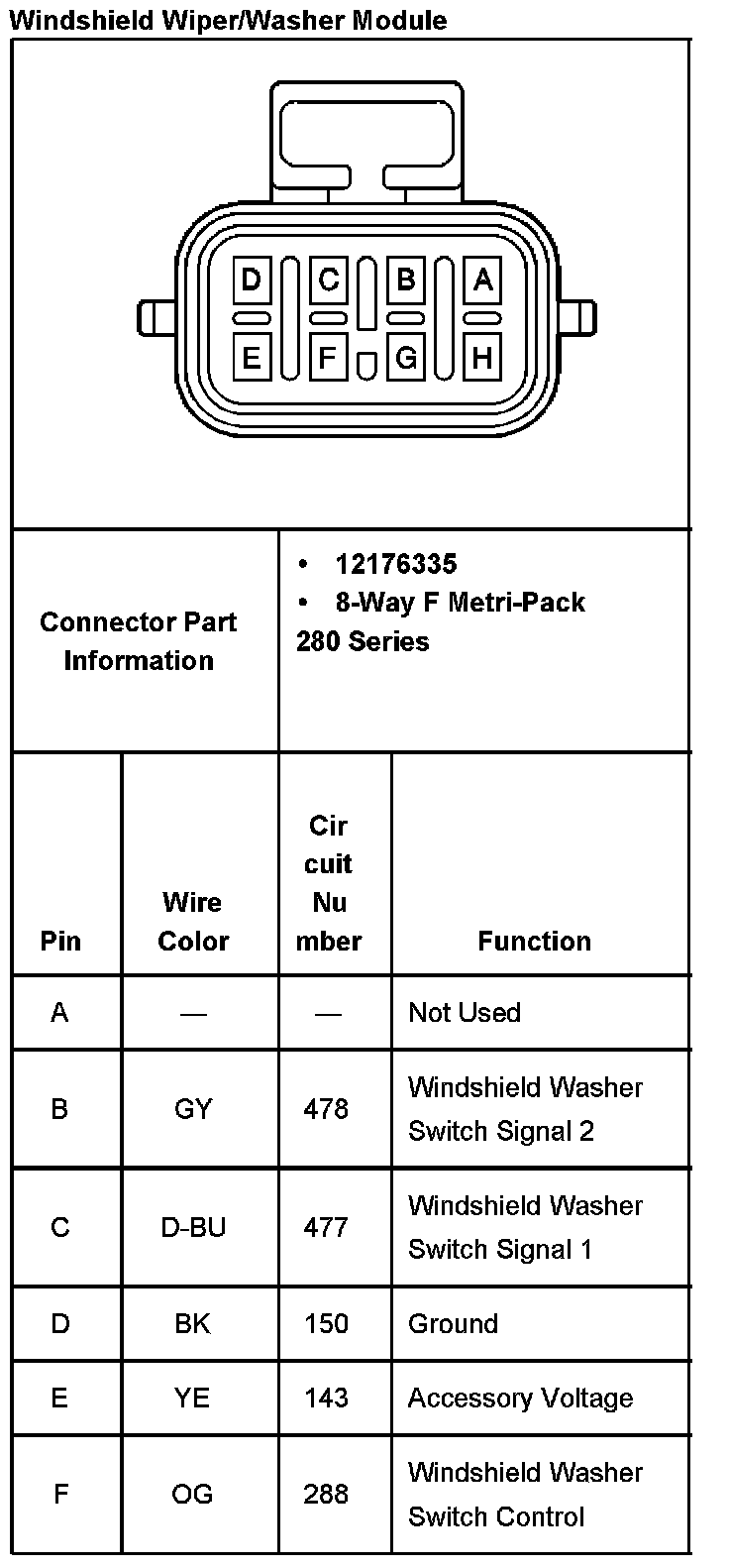

Windshield Wiper/Washer Module Part 1:

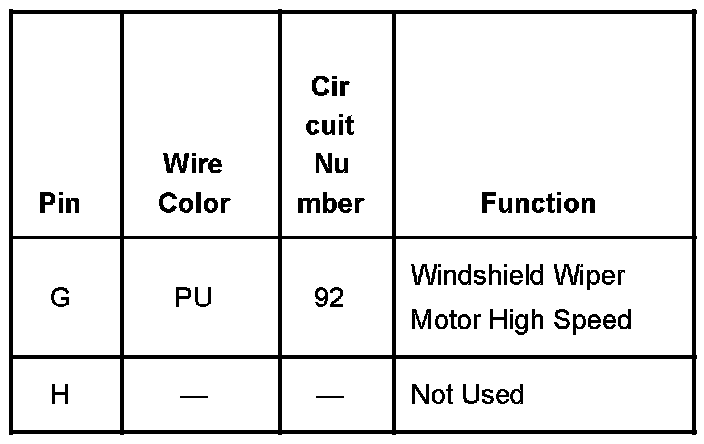

Windshield Wiper/Washer Module Part 2:
